POSITIONING THE BASE STATION
PRODUCT REFERENCE GUIDE 11

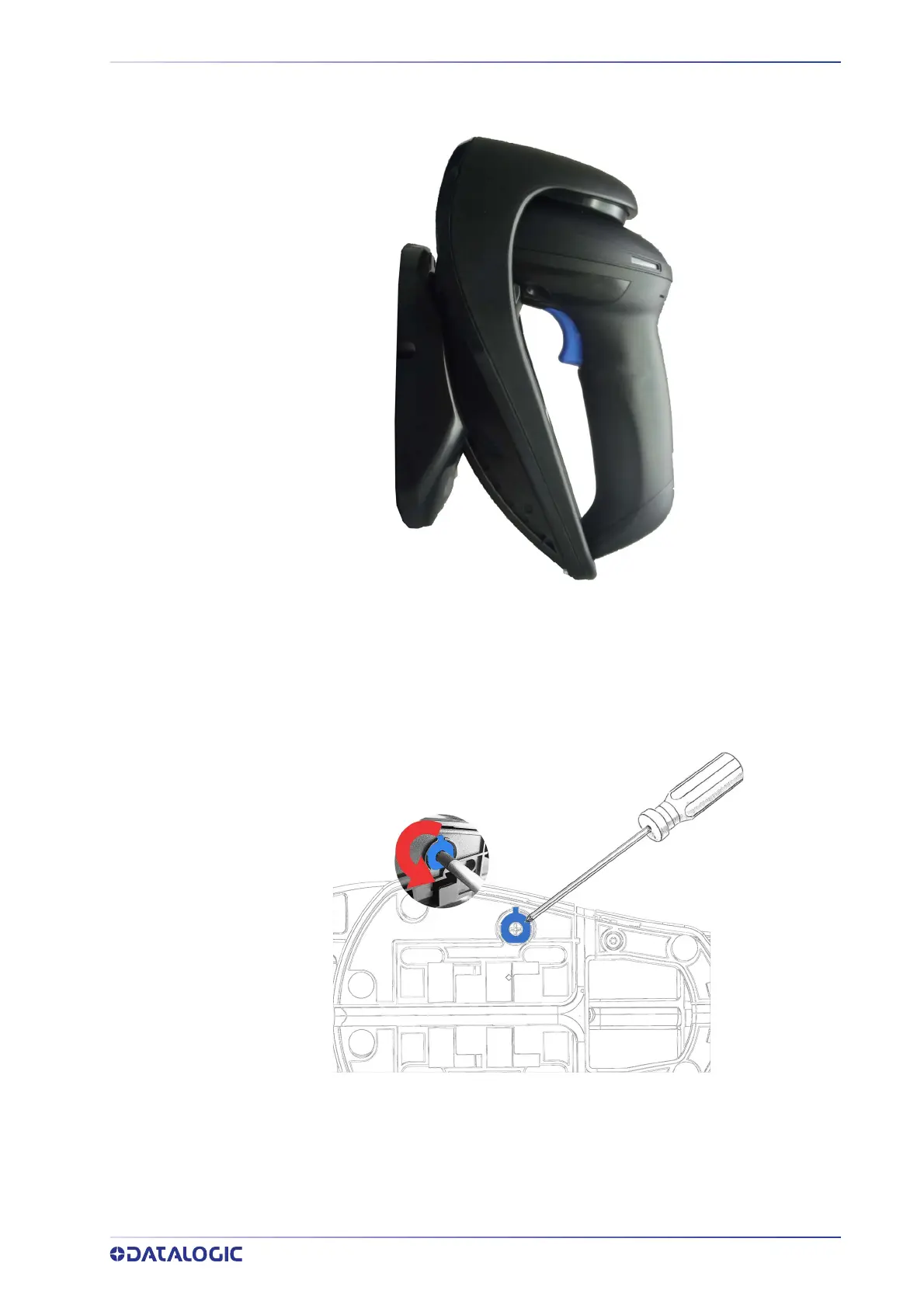

Figure 7 - Vertical Position
This position is preferred when lack of room on the desktop recommends the reader to
be left vertical during recharging.
1. Insert the appropriate parts for the desired base station position.
2. Release the screw situated on the bottom of the base station (the screw will be
kept in position by the blue ring).

Datalogic Gryphom 4500 Series Specifications

General

Brand	Datalogic
Model	Gryphom 4500 Series
Category	Barcode Reader
Language	English
