USING THE WLC4090 RADIO BASE
PRODUCT REFERENCE GUIDE
19
USING THE WLC4090 RADIO BASE
Radio Base LEDs
LEDs on the Gryphon Base provide information about the Base as well as battery
charging status, as shown in the figure below.

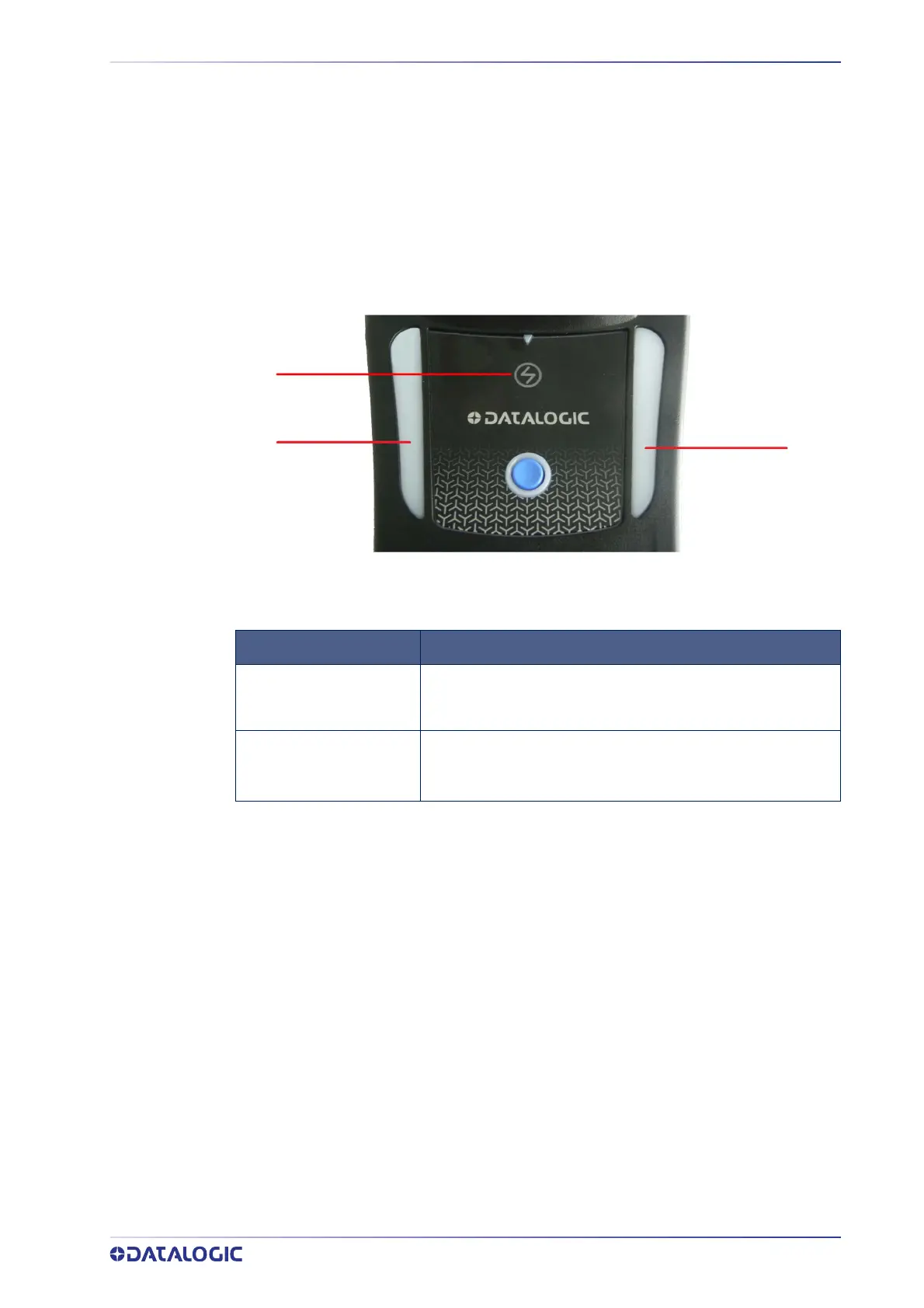

Figure 17 - Gryphon Base LEDs
Table 2 - Radio Base LEDs
Green On = Base is powered
Green Blinking = Base receives data and commands from the
Host
or the Reader.
Green ON = the battery is completely charged
Green fading = battery level 50 to 99%
Amber fading = battery level 0 to 49%
The capacitive touch button can be used to force device connection via the Datalogic
Aladdin Software tool and for paging the reader when it is activated. See also
User Indi-
cations for WLC4090 Base Stations, starting on page 306.
LED STATUS
1Power on / Data
2Charging
