TECHNICAL SPECIFICATIONS

308

GRYPHON™ I GD/GBT/GM4500

Figure 22 and Table 33 provide standard pinout information for the reader’s cable.

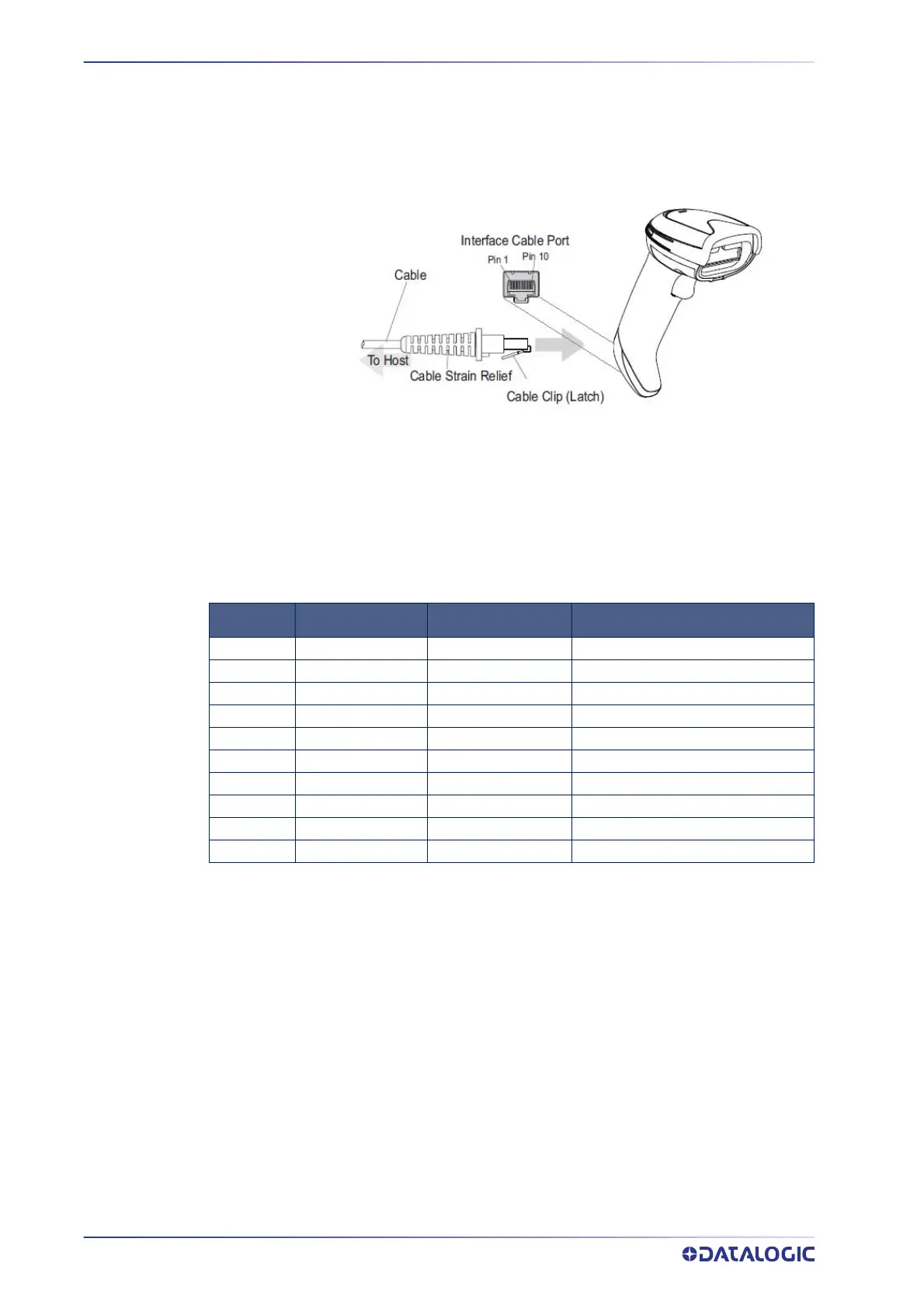

Figure 22 Standard Cable Pinouts

The signal descriptions in Table 33 apply to the connector on the reader and are for ref-

erence only.

Table 33 Standard Cable Pinouts — Reader Side

PIN RS232 USB KEYBOARD WEDGE

1 RTS (out)

2 D+ CLKIN (KBD side)

3 D- DATAIN (KBD side)

4 GND GND GND

5RX

6TX

7 VCC VCC VCC

8 CLKOUT (PC side)

9DATAOUT (PC side)

10 CTS (in)
