USING GRYPHON™ BT SERIES READERS
Gryphon™ BT series readers, together with a Bluetooth
®
compatible remote
device, build a Cordless Reading System for the collection, decoding and
transmission of barcoded data.
The Gryphon™ BT (Gryphon™ Bluetooth
®
) reader is a CCD wireless barcode
scanner communicating in the 2.4 GHz ISM band and using the Serial Port
Profile (SPP). The Bluetooth
®
compatible remote device can be a PC, PDA,
printer, etc with a built-in Bluetooth
®
device or with external Bluetooth
®
adapter
(i.e. a Bluetooth
®
dongle).
Using this Quick Reference Manual, you can initialise and start using
Gryphon™ BT reader with its default values. For details about general
configuration commands, refer to the Gryphon™ BT Refence Manual on
the configuration CD-ROM.
Gryphon™ BT readers automatically scan barcodes at a distance. Simply aim
the reader and pull the trigger. Code scanning is performed along the center of
the light bar emitted from the reading window. This bar must cover the entire
code.

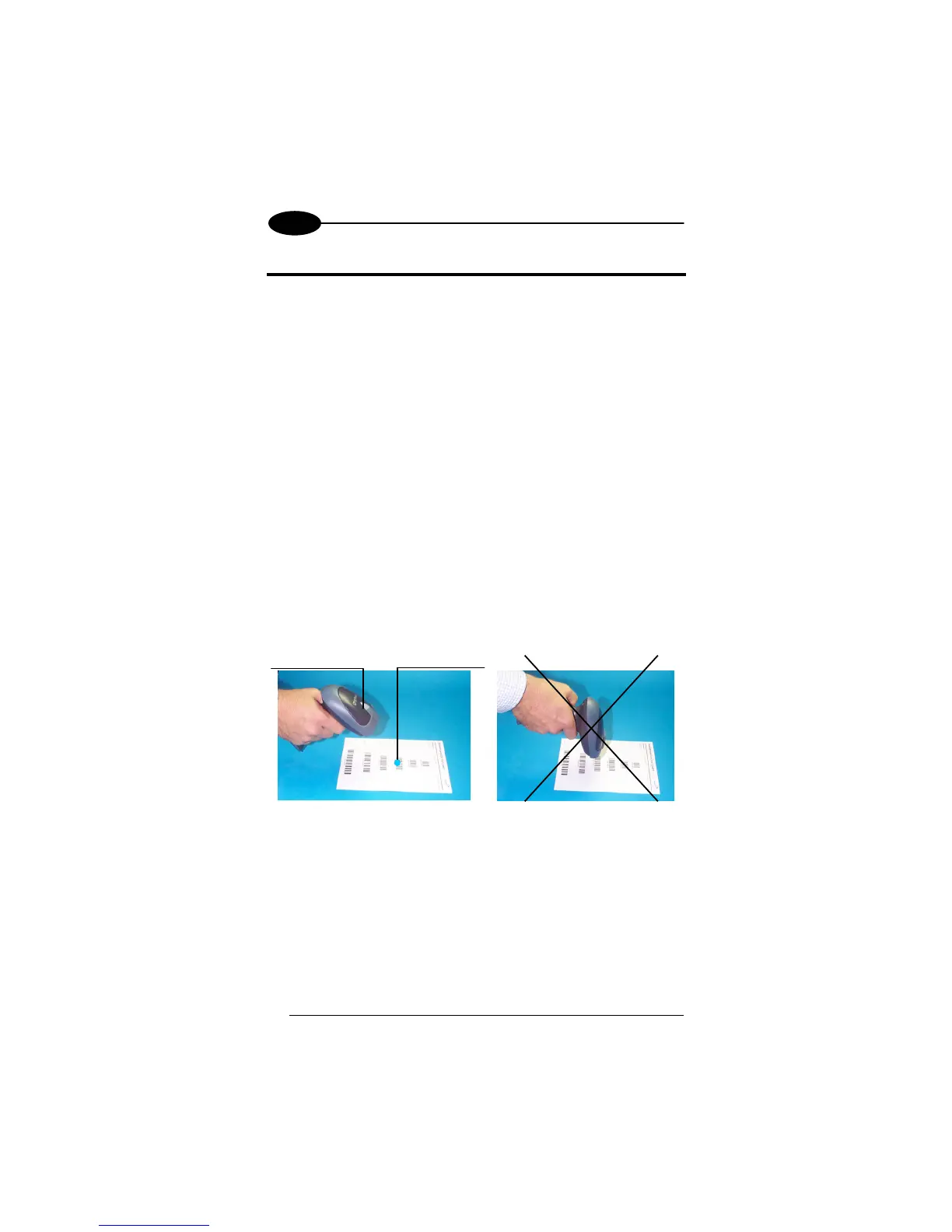

READING ANGLE
Successful scanning is performed by tilting the reader with respect to the
barcode to avoid direct reflections which impair the reading performance, see
the figure below.
Successful reading is signalled by an audible tone plus a good-read blue spot.
OK Not Advised
To start using your Gryphon™ BT reading system you must:
1. Have a compatible remote Bluetooth
®
device (with built-in Bluetooth
®
radio
or an external Bluetooth
®
adapter) ready to work. See your Bluetooth
®
compatible device documentation.
2. Charge the Gryphon™ BT battery using C-GRYPHON charger as
described in this Quick Reference manual. A full charge takes 4 hours
with NiMh batteries.
3. Configure the reader as described in this Quick Reference manual under
"Gryphon™ BT Configuration".
Good read spot
Good read LED
To Next Page
