Charging the Batteries
14 Gryphon™ I GM44XX
2. Unplug the white connector, and remove the two
screws securing the battery holder.
3. Carefully lift out the gold contacts circuit, and remove
the battery holder cap while letting the white connec-
tor pass through the hole in the battery holder (as
shown below).
4. Remove the old battery from its place (if present), and
insert the new battery in the same position.
5. Replace the battery holder cap, plug in the connector
and return the contacts circuit to its previous location.
6. Insert the cover in the handle and screw it into place.
When inserting the new battery into the handle, take
care to position the battery and the connector as
described above.

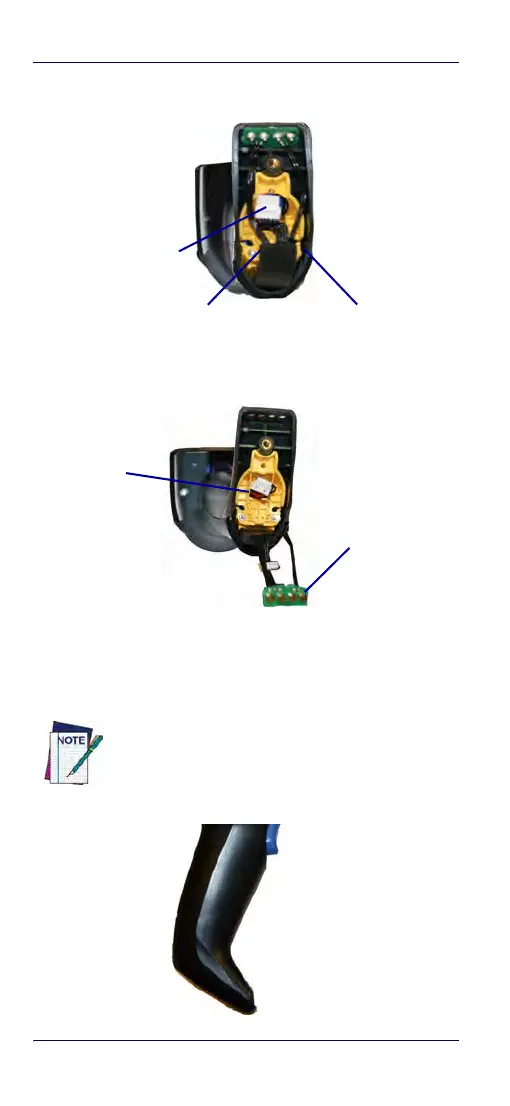

Pass-through
hole
Gold
contacts
circuit
