Datalogic Matrix 210 User Manual

RAPID CONFIGURATION
11
1

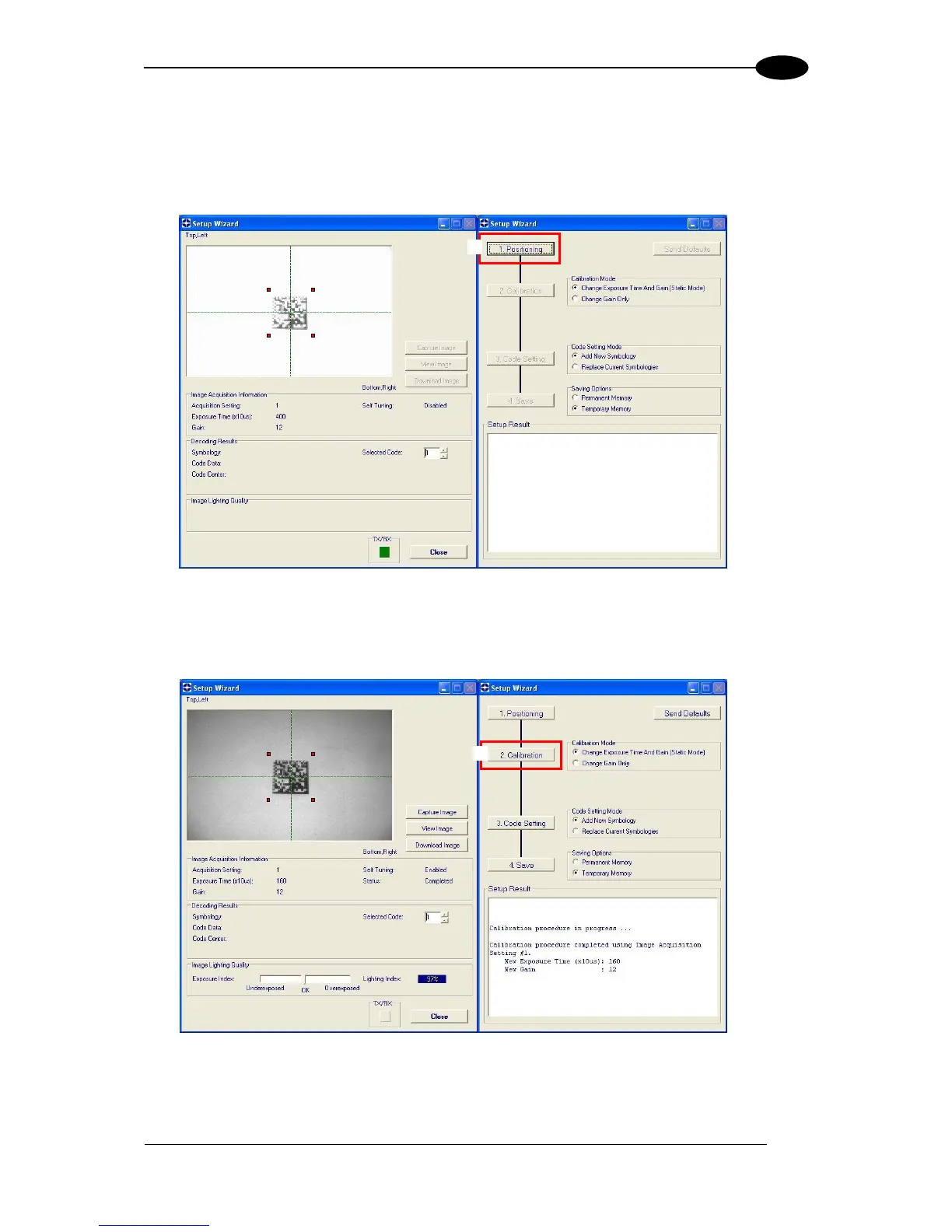

2. Press the "Positioning" button. The reader continuously acquires images and gives visual
feedback in the view image window. The Setup Wizard now shows four delimiters (red
points) in the acquired images which indicate the region in which the calibration algorithm
is active. Move the reader (or code) to center it.
Press the Positioning button again to stop positioning.
3. Select a Calibration Mode choice and press the "Calibrate" button. The reader flashes
once acquiring the image and auto determines the best exposure and gain settings. If the
code symbology is enabled by default, the code will also be decoded.
2
3

Datalogic Matrix 210 Specifications

General

Brand	Datalogic
Model	Matrix 210
Category	Barcode Reader
Language	English
