25-PIN CABLE ELECTRICAL CONNECTIONS
61
5
5.2 M12-D 4-PIN CONNECTOR (ETHERNET)
In Matrix 210 21x-x1x models, an M12 D-Coded connector is provided for the on-board
Ethernet connection. This interface is IEEE 802.3 10 BaseT and IEEE 802.3u 100 BaseTx
compliant. See par. 5.7 for connection details.

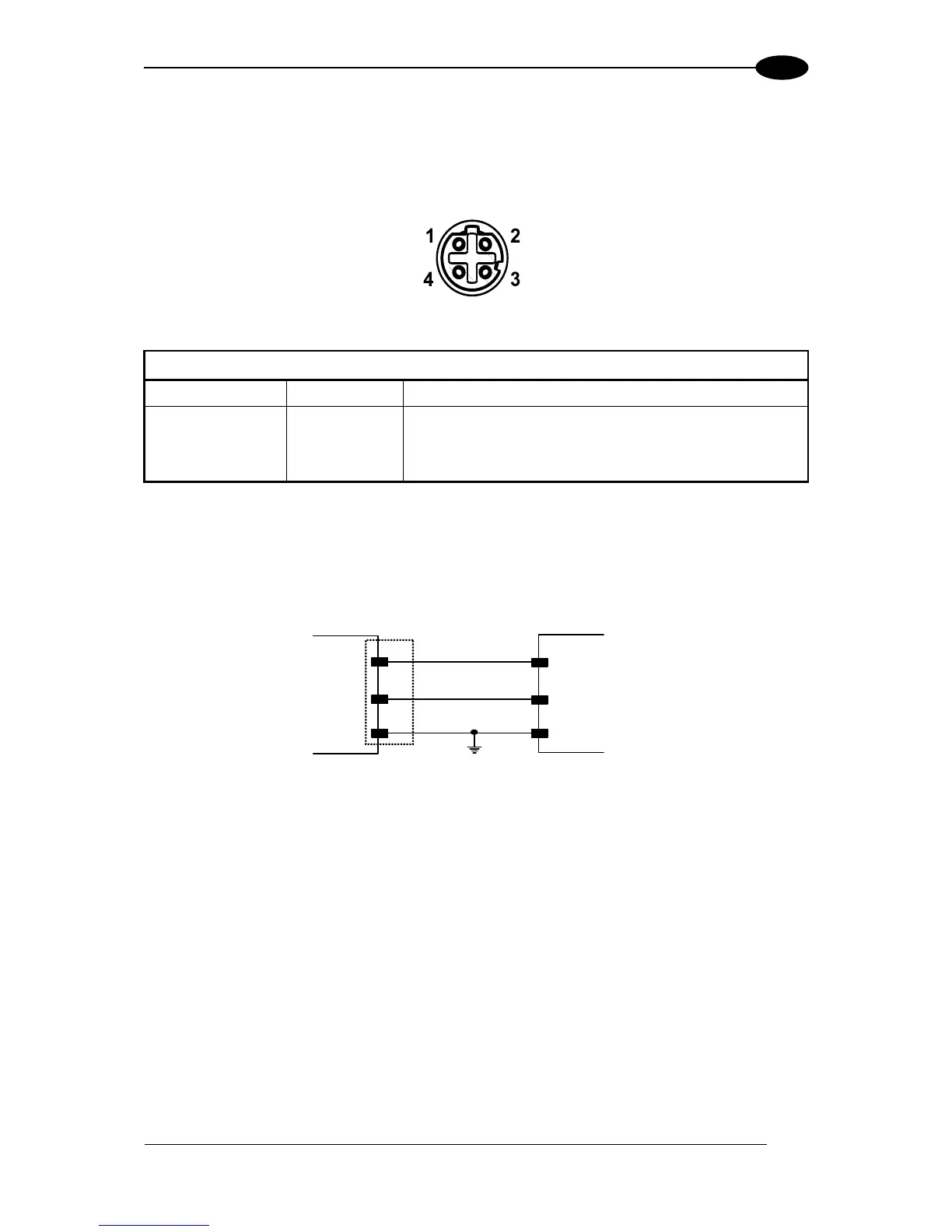

Figure 62 - M12 D-Coded Female Ethernet Network Connector
M12 D-Coded Ethernet Network Connector pinout
Pin
Name
Function
1
TX +
Transmitted data (+)
2
RX +
Received data (+)
3
TX -
Transmitted data (-)
4
RX -
Received data (-)
5.3 POWER SUPPLY
Power is supplied to the reader through the pins provided on the 25-pin connector (see
Figure 63):
Earth Ground
CHASSIS
VGND
V+ (10 - 30 Vdc)
13
25
1
Vdc
GND
CHASSIS
POWER SUPPLY
Matrix 210™
Figure 63 - Power Supply Connection
The allowed supply voltage range is 10 to 30 Vdc.
It is recommended to connect pin 1 (CHASSIS) to a common earth ground.
5.4 MAIN SERIAL INTERFACE
The signals relative to the following serial interface types are available on the 25-pin
connector:
The main serial interface type and its parameters (baud rate, data bits, etc.) can be
defined by the user via VisiSet™ software. The RS485 half duplex is automatically set
whenever MUX32 communication protocol is enabled. For more details refer to the
"Communication" folder in the VisiSet™ Help On Line.
Details regarding the connections and use of the interfaces are given in the next paragraphs.
