STEP 2 – MOUNT AND POSITION THE READER
1. To mount the Matrix 210™, use the mounting brackets to obtain the most suitable
position for the reader. Two of the most common mounting configurations are shown in
the figures below. Other mounting solutions are provided in par. 3.3.

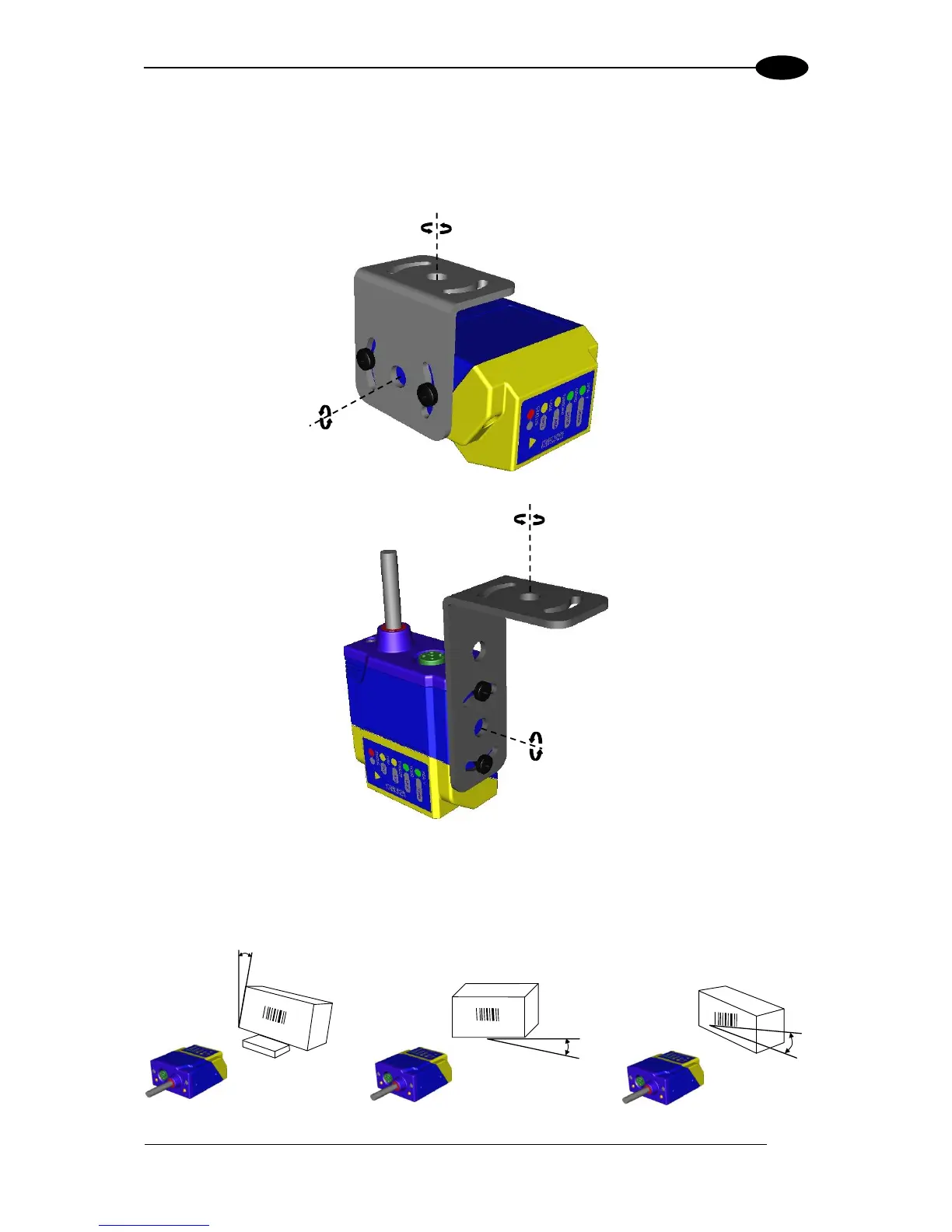

Figure 3 –Positioning 90° Model with Mounting Bracket
Figure 4 –Positioning Straight Model with Mounting Bracket
2. When mounting the Matrix 210™ take into consideration these three ideal label position
angles: Pitch or Skew 10° to 20° and Tilt 0°, although the reader can read a code at any tilt
angle.
Assure at least 10° Minimize Minimize
Figure 5 – Pitch, Skew and Tilt Angles
