MATRIX 210™ REFERENCE MANUAL
92
6
6.6 ETHERNET CONNECTION
(21x-x1x models only)
For Matrix 210 21x-x1x models, the Ethernet connection is possible in two different layouts.
In both layouts, before proceeding with the connection, it is necessary to configure the reader
Ethernet parameters via VisiSet™. For further details, see the Ethernet Folder in the
VisiSet™ Help On Line.
“In a Point-to-Point layout the reader is connected to a local host by using a CAB-ETH-M0x
cable There is no need to use a crossover adapter since Matrix 210™ incorporates an auto-
cross function.

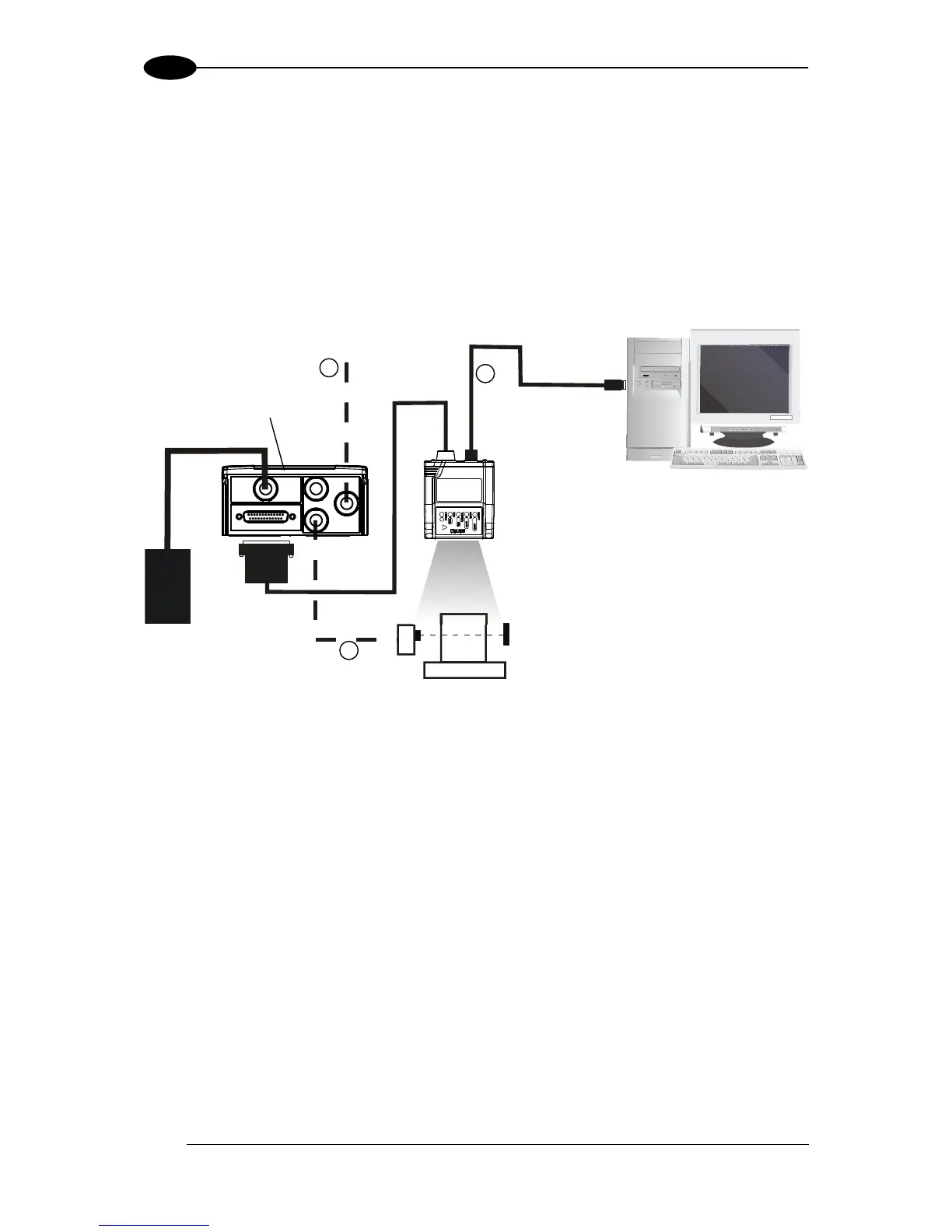

Figure 104 - Ethernet Point-to-Point Layout
CBX
Host
Matrix 210™
CAB-MS0x
CAB-ETH-M0x
PG 6000
1
2
 Ethernet Interface
 Auxiliary Serial Interface (Local Echo) (RS232)
 External Trigger (for One Shot or Phase Mode)
3
