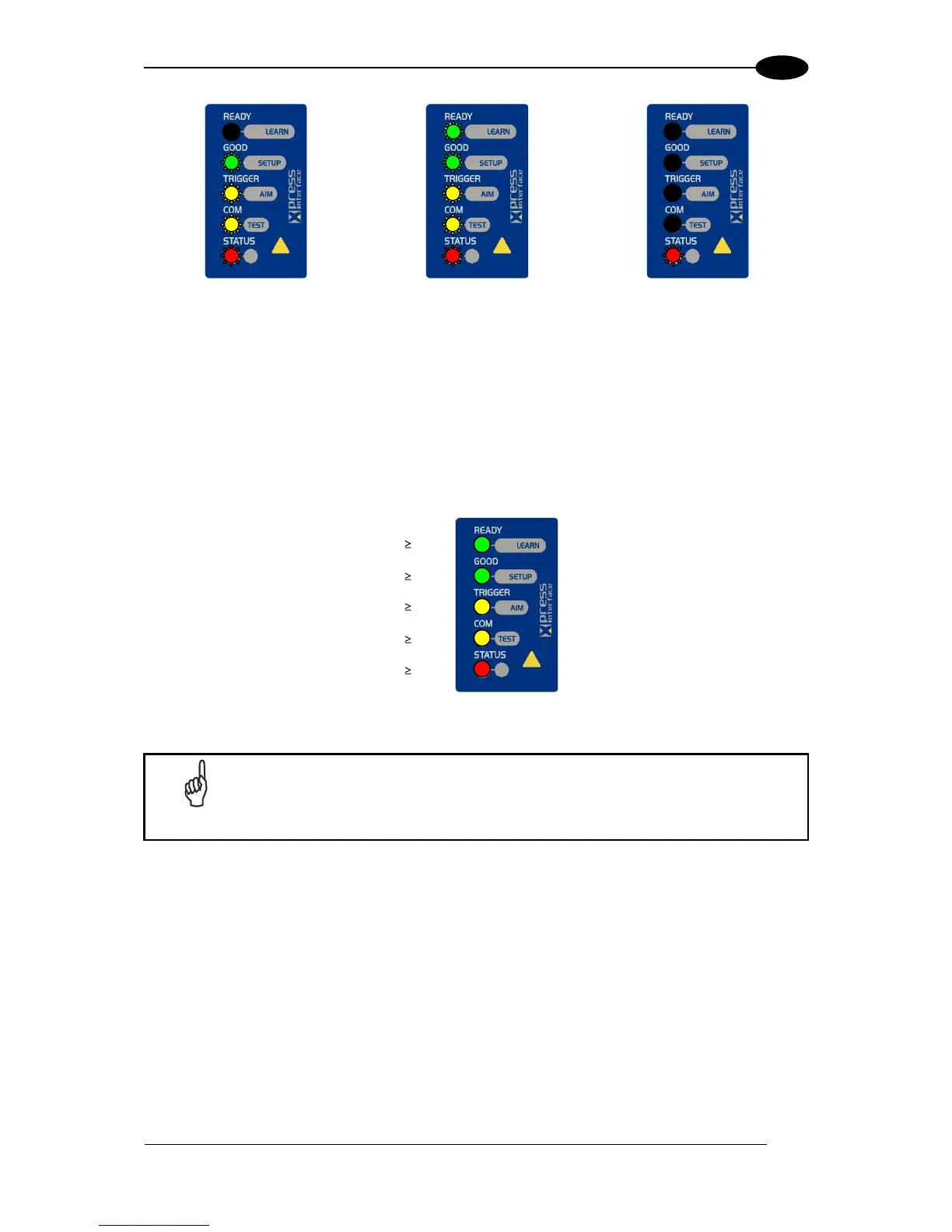

INTRODUCTION
29
2
Release button
to enter Setup Mode
Release button
to enter Learn Mode
(cycle)
Release button
to Exit
Test Mode (Function 1)
Once entered, the Bar Graph on the five LEDs is activated and if the imager starts reading
codes the Bar-Graph shows the Good Read Rate. In case of a NO READ condition, only the
Status LED is on and blinks.
The Bar Graph has the following meaning:
95%
75%
60%
40%
20%
To exit the Test Mode, press the X-PRESS™ push button once.
NOTE
By default, the Test exits automatically after three minutes.
Aim/Locate (Function 2)
This function causes the blue ring to turn on. Since the blue ring is centered on the FOV it
can be used to position the imager on the code. The Aim LED blinks to indicate this state.
To exit the Aim/Locate Mode, press the X-PRESS™ push button once. The blue ring turns
off.
