MATRIX 210™ REFERENCE MANUAL

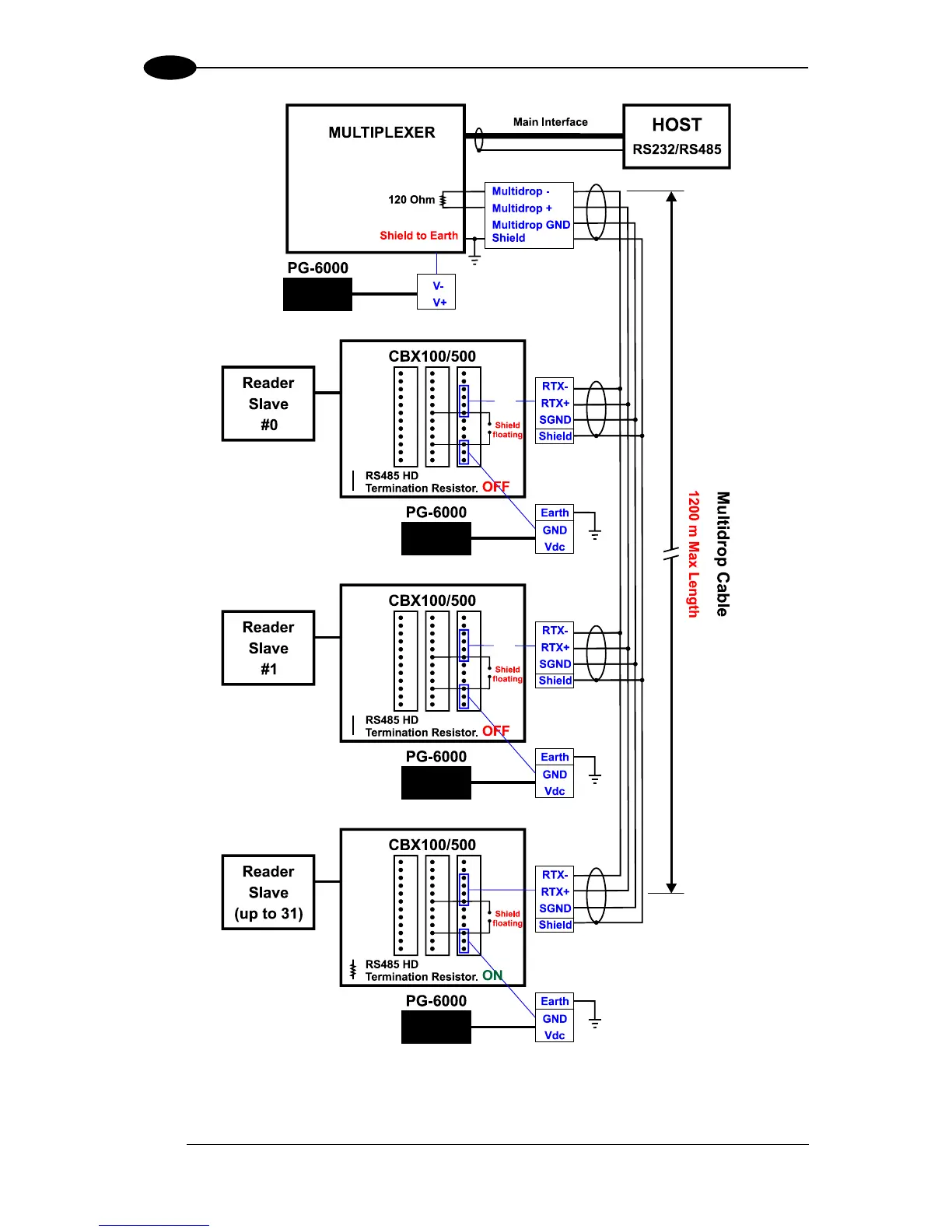

Figure 43 - Matrix 210™ Multidrop Connection to a Multiplexer

* When using CBX500, the Main interface multidrop network signals: Shield, SGND, RTX+and RTX- are

repeated on terminal connector row 4 to facilitate system cabling.
