MATRIX 210™ REFERENCE MANUAL
54
4

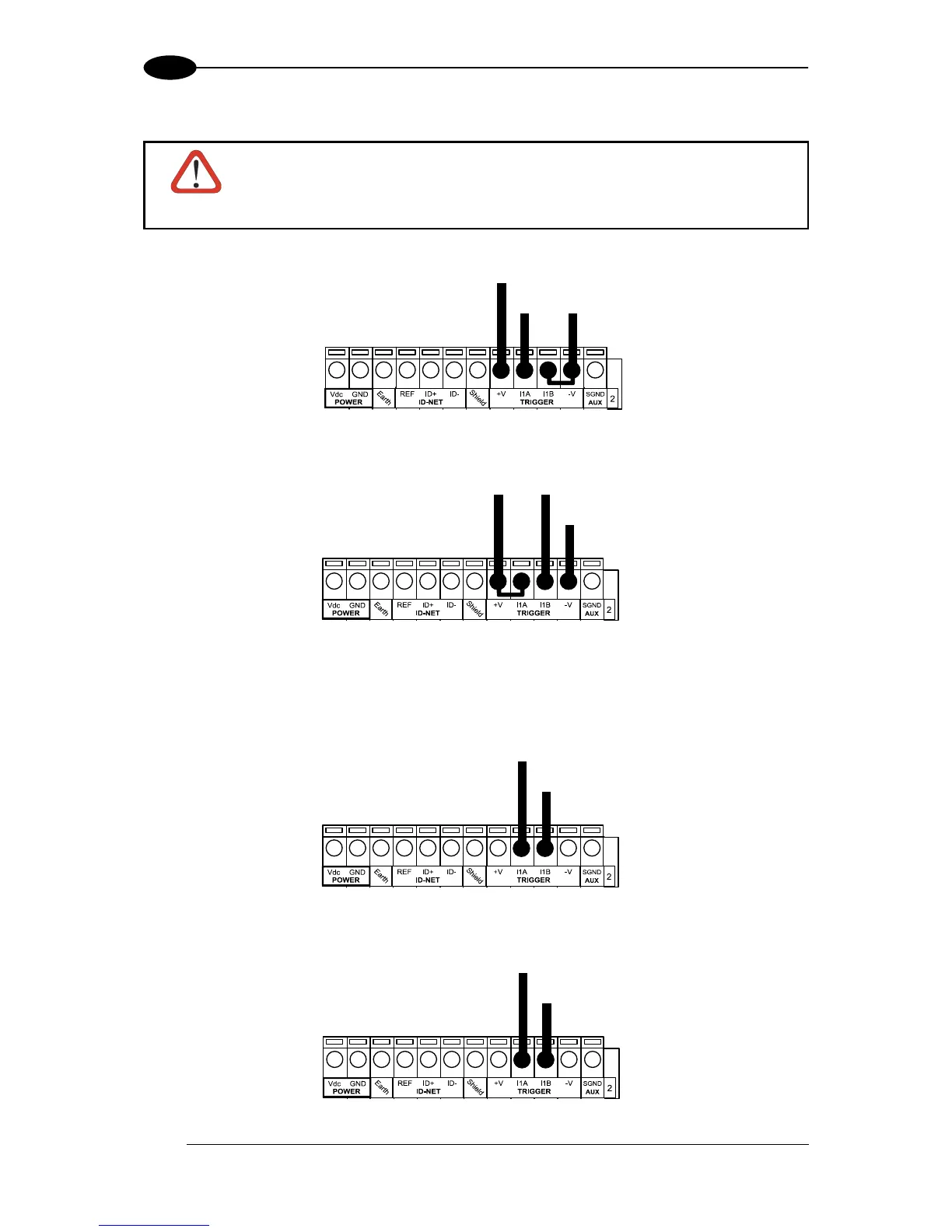

EXTERNAL TRIGGER INPUT CONNECTIONS USING MATRIX 210™ POWER
CAUTION
Power is available directly to the Input Device, independently from the
Power Supply Switch inside the CBX.
(brown)
(black) (blue)
PH-1 Photocell (PNP)
Figure 50 – PH-1 External Trigger Using Matrix 210™ Power
Power to Input
Photocell Signal
Photocell
Reference
NPN Photocell
Figure 51 - NPN External Trigger Using Matrix 210™ Power
EXTERNAL TRIGGER INPUT CONNECTIONS USING EXTERNAL POWER
Pulled down to External
Input Device Reference
Input
Signal
PNP Photocell
Figure 52 - PNP External Trigger Using External Power
Pulled up to External
Input Device Power
Input
Signal
NPN Photocell
Figure 53 - NPN External Trigger Using External Power
