CBX ELECTRICAL CONNECTIONS
57
4

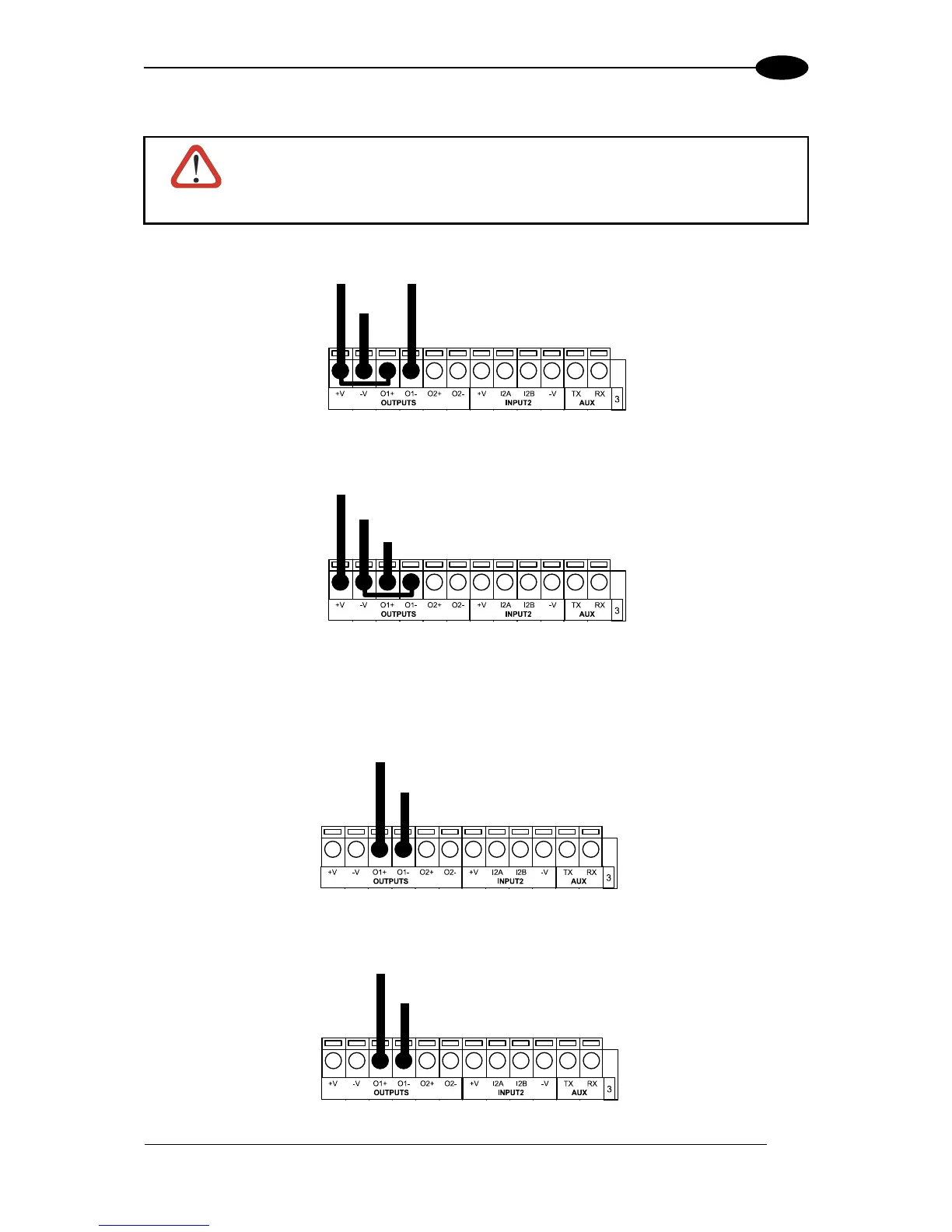

OUTPUT CONNECTIONS USING MATRIX 210™ POWER
CAUTION
Power is available directly to the Output Device, independently from the
Power Supply Switch inside the CBX.
Power to Output
Output device Signal
Output device
Reference
Output Device
Figure 56 - Open Emitter Output Using Matrix 210™ Power
Power to
Output device
Output device
Reference
Output Device
Output
Signal
Figure 57 - Open Collector Output Using Matrix 210™ Power
OUTPUT CONNECTIONS USING EXTERNAL POWER
Pulled up to External
Output Device Power
Output
Signal
Output Device
Figure 58 - Output Open Emitter Using External Power
Pulled down to External
Output Device Reference
Output
Signal
Output Device
Figure 59 - Output Open Collector Using External Power
