25-PIN CABLE ELECTRICAL CONNECTIONS
77
5
The output signals are fully programmable being determined by the configured
Activation/Deactivation events, Deactivation Timeout or a combination of the two. Refer to
the Digital I/O folder in the VisiSet™ Help On Line for further details.
USER INTERFACE
O+
8/11
22/12
O-
Matrix 210™
Vext 30 Vdc max.
C
E

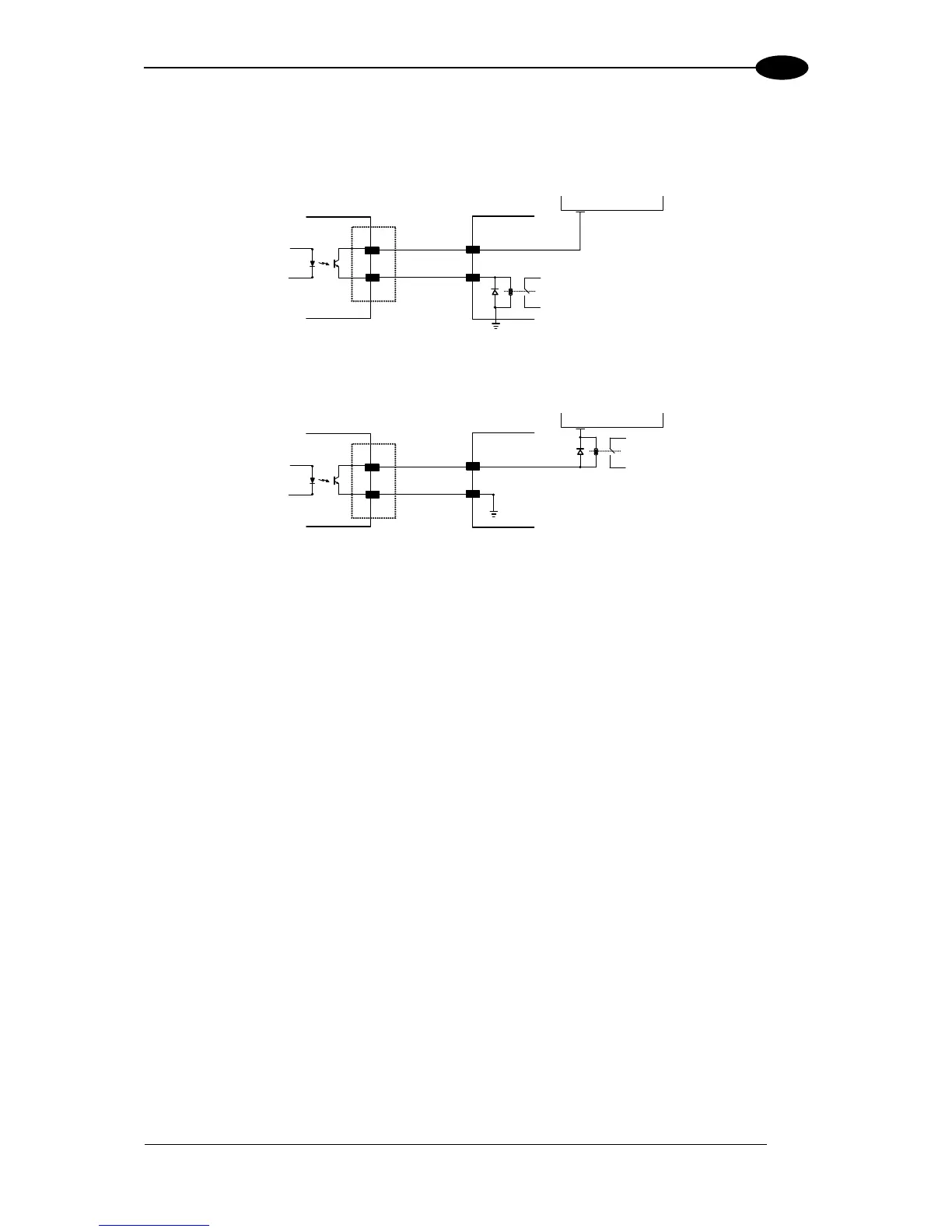

Figure 85 - Open Emitter Output Connection
USER INTERFACE
O+
8/11
22/12
O-
Matrix 210™
Vext 30 Vdc max.
C
E
Figure 86 - Open Collector Output Connection
