Datalogic Matrix 300

MATRIX 300™ QUICK GUIDE
24
Data Matrix Code 0.25 mm (10 mils)
Measurement Conditions:
Tilt Angle: 45°
Skew Angle: 15°
See the Matrix 300™ Reference
Manual for a complete list of
conditions.
For applications where DOF is
important, pre-configured .ini files are
provided which correspond to these
reading diagrams. See the Matrix
300™ Reference Manual for details.

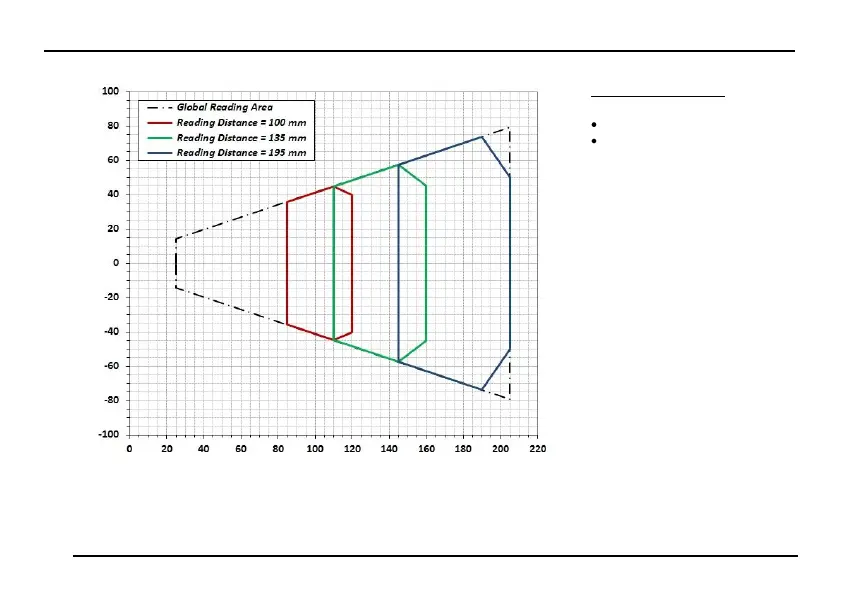

Reading Distance
m
m
Horizontal Reading Width
in
0 1 2 3 4 5 6 7 8
0
1
2
4
-1
-2
-4
3
-3
