Datalogic PowerScan PD8530

INITIAL SETUP
13
3.2 WEDGE INTERFACE SELECTION
The PowerScan® PD8530 reader requires the Wedge interface cable and the AC/DC
power adapter to be connected.
To install and configure your reader with the Wedge interface, follow these
instructions:
Make all the PowerScan® PD8530 reader
connections as shown in Figure 4:
1.

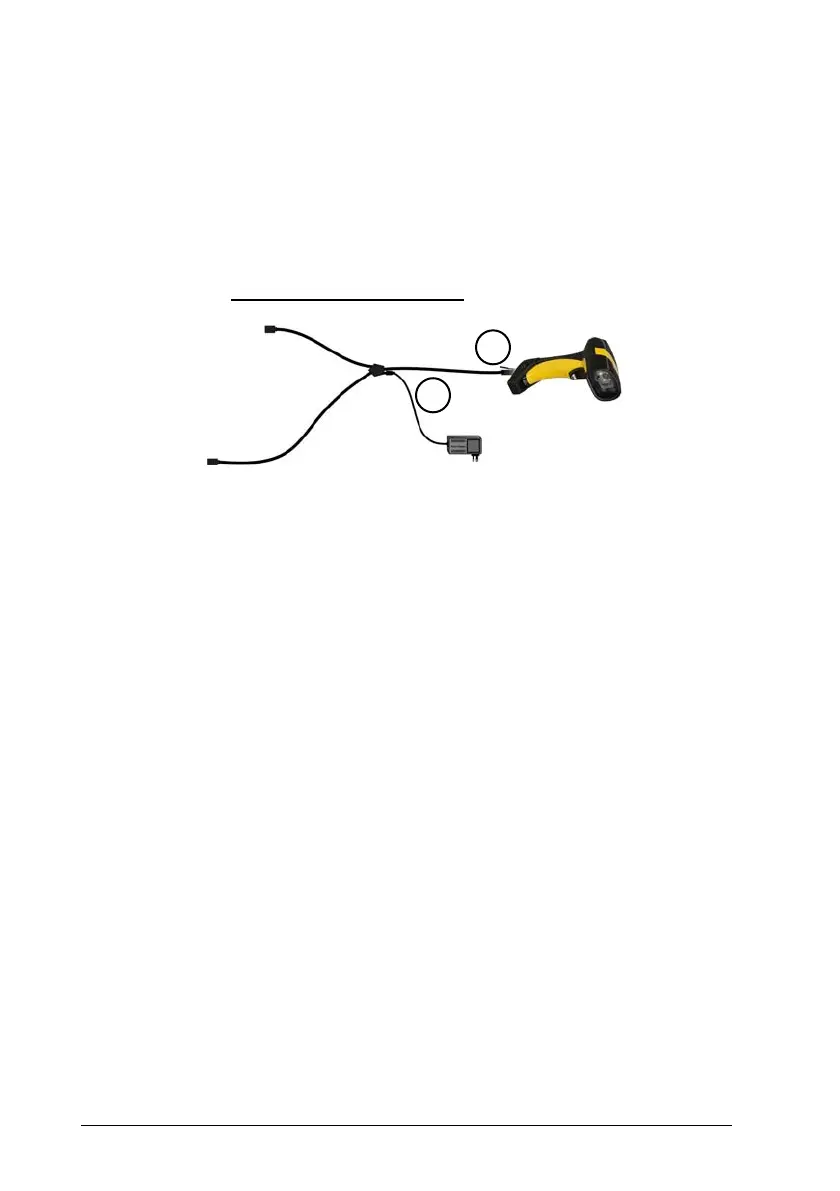

Figure 4 – Read e Connections
Read the restore default parameter code below:
.
Restore D ault
Read the Wedge IBM AT interface selection code:
.
Wedge – IBM AT
AMHKHMFOHNGNENEIEPANHOGOCK
AGPEPJAMDKEOFMHMLJALFAEHKK
AEONPJCJGIIJCMCEHPLLHLPPJK
AIFBJLBGMHPLNPDFHGDGFIBDOK
AAPHBAJJCGCOPJDIMBCEANODDK
AFKFBPPJPJCAALOIKIECIPIKLK
