To Next Page

To Previous Page

Enter/Exit Programming Mode UPC-E

94 QuickScan™ I QD24XX/QBT24XX/QM24XX

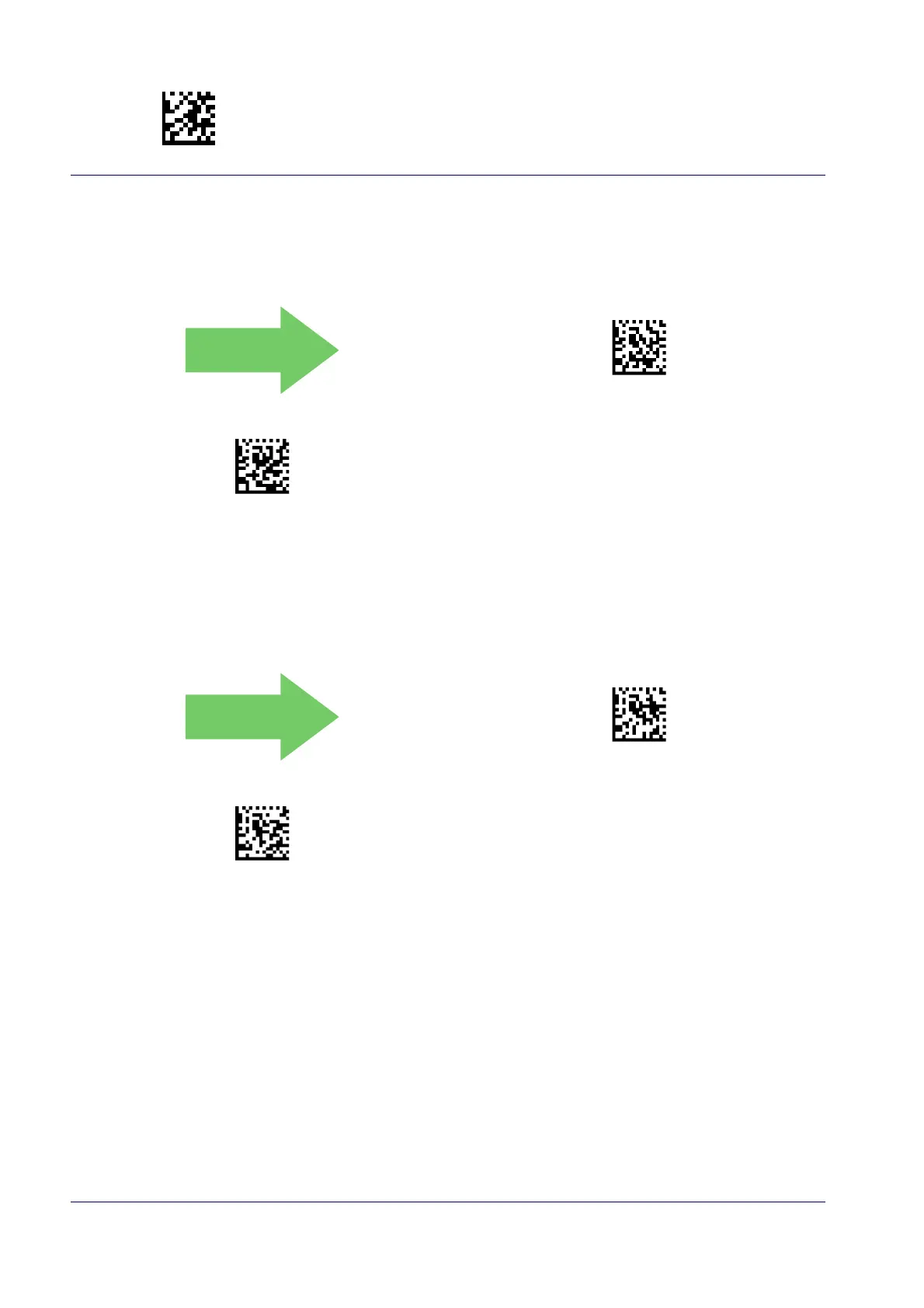

Expand UPC-E to EAN-13

Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the sym-

bology ID to match those required for EAN-13.

DEFAULT

$CEB3B00(CR)

UPC-E to EAN-13 = Don’t Expand

$CEB3B01(CR)

UPC-E to EAN-13 = Expand

Expand UPC-E to UPC-A

Expands UPC-E data to the UPC-A data format.

DEFAULT

$CEBAB00(CR)

UPC-E to UPC-A = Don’t Expand

$CEBAB01(CR)

UPC-E to UPC-A = Expand

Default Chapter3
- Table of Contents3
Introduction11
- About this Manual11
  - Overview11
  - Manual Conventions12
- Technical Support12
- About the Reader13
- Programming the Reader14
  - Configuration Methods14
- Cordless Models Only15
Setup19
- Unpacking19
- Setting up the Reader19
- Installing the Interface Cable20
- Configuring the Base Station22
- Interface Selection27
  - Setting the Interface28
- Customizing Configuration Settings31
Configuration Using Bar Codes33
- Configuration Parameters33
  - Global Interface Features35
    - Host Commands - Obey/Ignore35
    - USB Suspend Mode35
- Rs-232 Interface37
- RS-232/USB-Com Interfaces42
Keyboard Settings49
- Country Mode50
- Send Control Characters54
- Wedge Quiet Interval55
- Intercode Delay55
- Caps Lock State56
- Numlock56
- USB Keyboard Speed57
- USB Keyboard Numeric Keypad58
USB-OEM Interface59
- USB-OEM Device Usage60
- USB Interface Options60
- Transmit Labels in Code 39 Format61
- Interface Options62
Data Format63
Global Prefix/Suffix64
Global AIM ID65
- Set AIM ID Individually for GS1-12867
Label ID68
- Label ID: Pre-Loaded Sets68
- Individually Set Label ID69
Reading Parameters77
- Double Read Timeout78
- Led and Beeper Indicators80
- 1D Symbologies97
- 1D Code Selection97
- 2D Symbologies189
- 2D Global Features189
Aztec Code192
- Aztec Code Enable / Disable192
- Aztec Code Length Control192
  - Aztec Code Set Length 1193
  - Aztec Code Set Length 2194
- Symbology Selection192
China Sensible Code195
- China Sensible Code Enable / Disable195
- China Sensible Code Length Control195
  - China Sensible Code Set Length 1196
  - China Sensible Code Set Length 2197
Data Matrix198
- Data Matrix Enable / Disable198
- Data Matrix Square/Rectangular Style198
- Data Matrix Length Control199
  - Data Matrix Set Length 1199
  - Data Matrix Set Length 2200
Maxicode201
- Maxicode Enable / Disable201
- Maxicode Primary Message Transmission201
- Maxicode Length Control202
  - Maxicode Set Length 1202
  - Maxicode Set Length 2203
Pdf417204
- PDF417 Enable / Disable204
- PDF417 Length Control204
  - PDF417 Set Length 1205
  - PDF417 Set Length 2206
Micro PDF417207
- Micro PDF417 Enable / Disable207
- Micro PDF417 Code 128 GS1-128 Emulation207
- Micro PDF417 Length Control208
  - Micro PDF417 Set Length 1208
  - Micro PDF417 Set Length 2209
QR Code210
- QR Code Enable / Disable210
- QR Code Length Control210
  - QR Code Set Length 1211
  - QR Code Set Length 2212
Micro QR Code213
- Micro QR Code Enable/Disable213
- Micro QR Code Length Control213
  - Micro QR Code Set Length 1214
  - Micro QR Code Set Length 2215
UCC Composite216
- UCC Composite Enable / Disable216
- UCC Optional Composite Timer217
Postal Code Selection218
- Postnet BB Control219
Wireless Features221
- Wireless Beeper Features222
- Bluetooth-Only Features231
  - Rf Address Stamping231
- Features for Star Models Only237
  - STAR Radio Protocol Timeout237
  - STAR Radio Transmit Mode238
Message Formatting239
- LED and Beeper Control240
References241
- RS-232 Parameters242
  - RS-232/USB COM Parameters243
- Keyboard Interface250
- Symbologies253
  - Set Length253
- Data Editing254
- Reading Parameters263
  - Good Read LED Duration263
- Scanning Features264
- RF Features272
Technical Specifications275
- Imager Labeling279
- Standard Cable Pinouts280
- LED and Beeper Indications282
- Error Codes283
- Base Station Indications (Cordless Models ONLY)284
Standard Defaults285
Sample Bar Codes297
- D Bar Codes300
Keypad301
Scancode Tables303
- Control Character Emulation303
  - Single Press and Release Keys303
- Interface Type PC at PS/2, USB-Keyboard or USB-Keyboard for APPLE304
- Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode306
- Digital Interface308
- Ibm31Xx 102-Key309
- Ibm Xt310
- Microsoft Windows Codepage 1252311
  - Ascii Chart313
