Reading Parameters Enter/Exit Programming Mode

Product Reference Guide

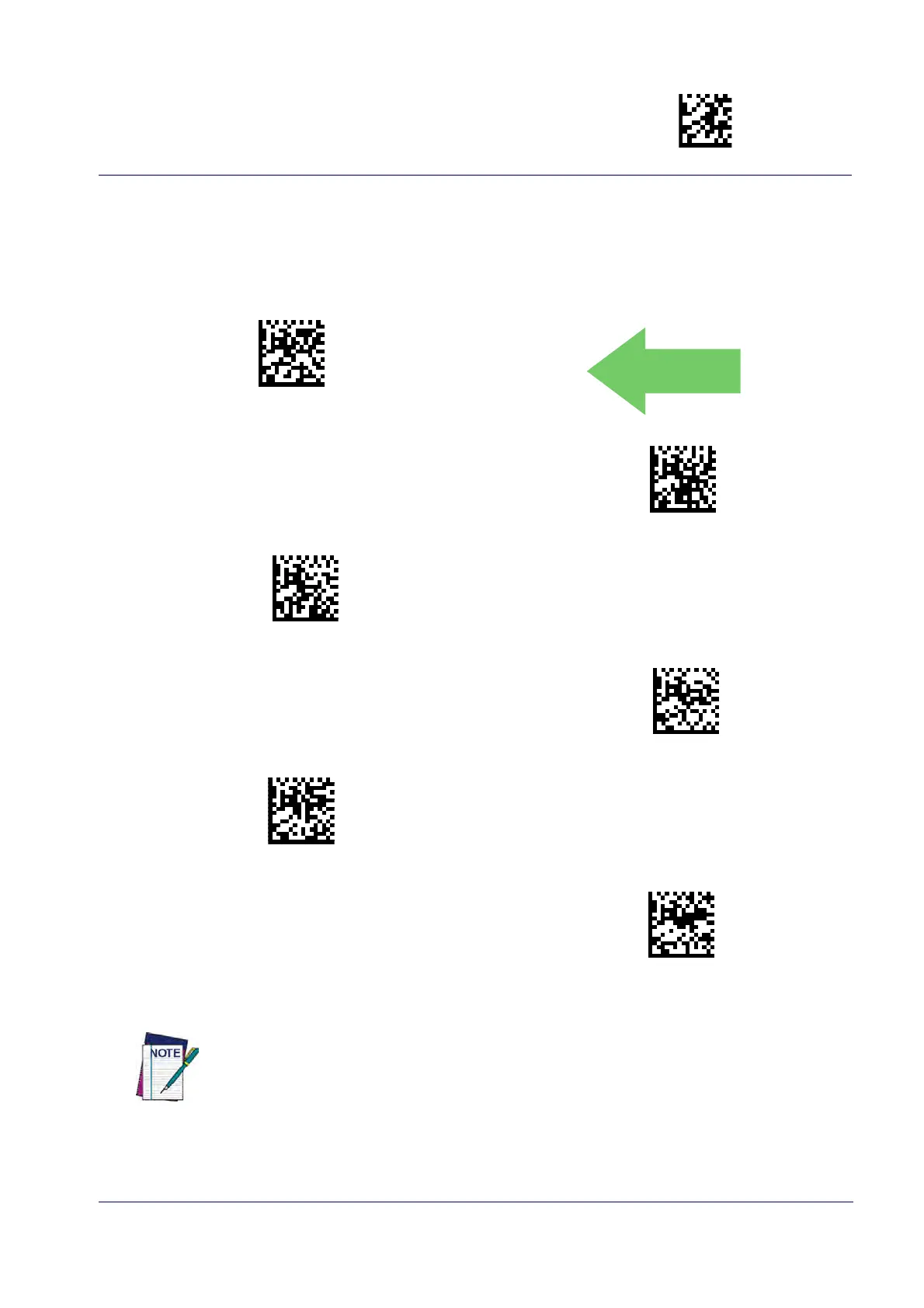

SCANNING FEATURES

Scan Mode

Selects the reader’s scan operating mode. See page 254 in “References” for descriptions.

$CSNRM00(CR)

Scan Mode = Trigger Single

DEFAULT

$CSNRM01(CR)

Scan Mode = Trigger Hold Multiple

$CSNRM02(CR)

Scan Mode = Trigger Pulse Multiple

$CSN-

Scan Mode = Flashing

$CSNRM04(CR)

Scan Mode = Always On

$CSN-

Scan Mode = Stand Mode

Options concerning Stand Mode behavior are available at the following fea-

ture,

Stand Operation on page 77

Default Chapter3
