Enter/Exit Programming Mode

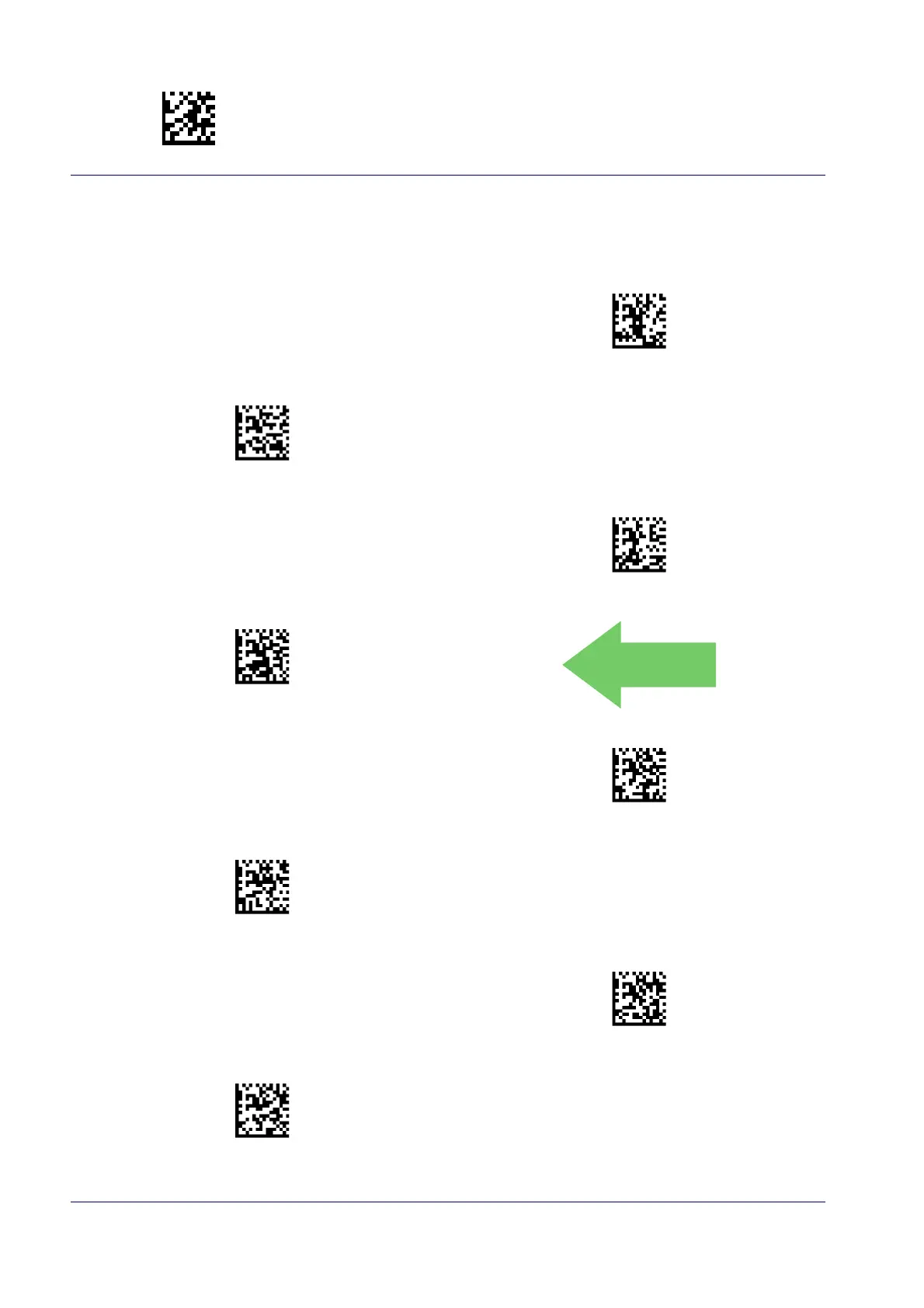

QuickScan™ I QD24XX/QBT24XX/QM24XX

Baud Rate

See page 232 for information on this feature.

$CR2BA00(CR)

Baud Rate = 1200

$CR2BA01(CR)

Baud Rate = 2400

$CR2BA02(CR)

Baud Rate = 4800

$CR2BA03(CR)

Baud Rate = 9600

DEFAULT

$CR2BA04(CR)

Baud Rate = 19,200

$CR2BA05(CR)

Baud Rate = 38,400

$CR2BA06(CR)

Baud Rate = 57,600

$CR2BA07(CR)

Baud Rate = 115,200

Default Chapter3
