Enter/Exit Programming Mode LED and Beeper Indicators

72 QuickScan™ I QD24XX/QBT24XX/QM24XX

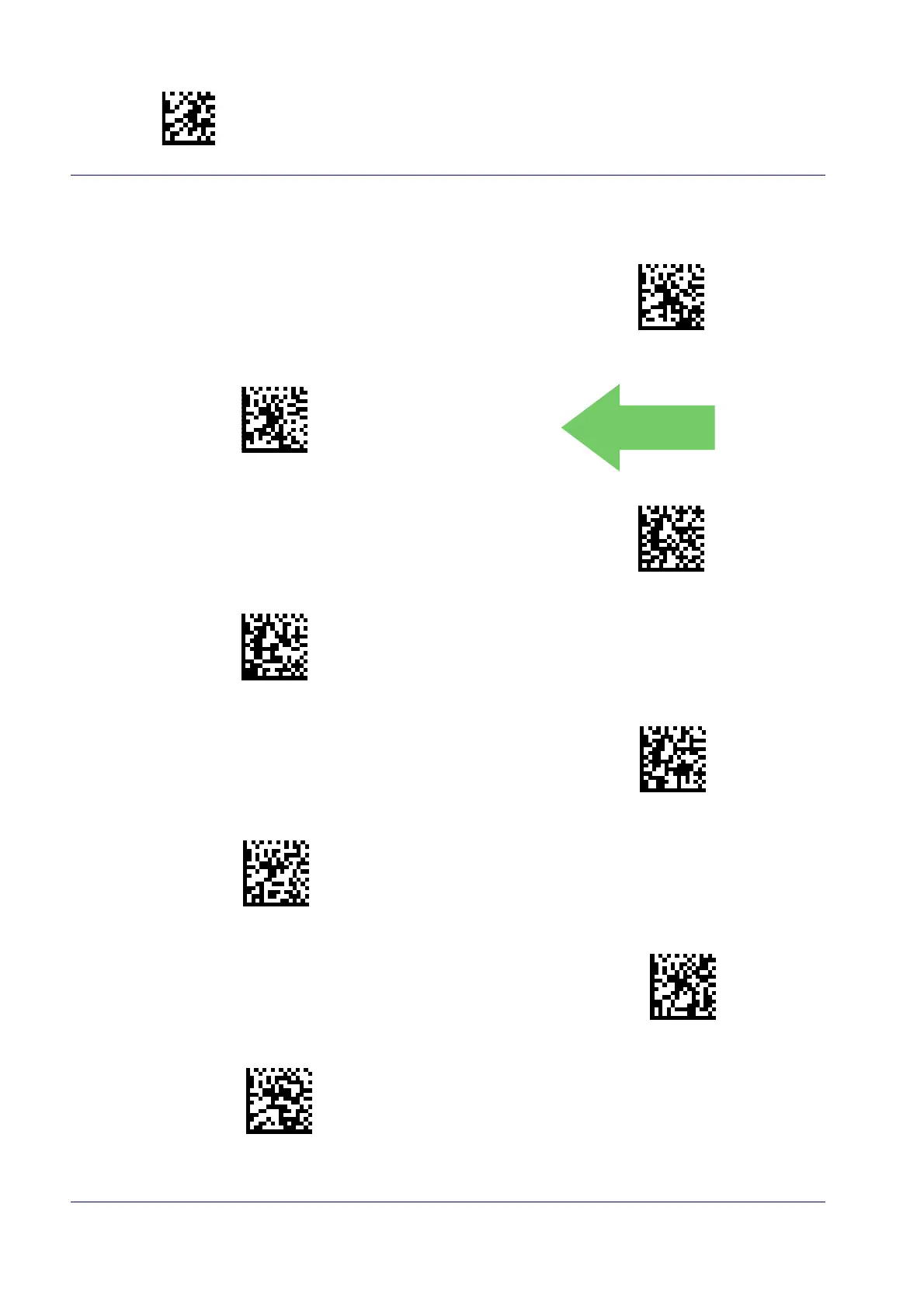

Good Read Beep Length

$CBPLE06(CR)

Good Read Beep Length = 60 msec

$CBPLE08(CR)

Good Read Beep Length = 80 msec

DEFAULT

$CBPLE0A(CR)

Good Read Beep Length = 100 msec

$CBPLE0C(CR)

Good Read Beep Length = 120 msec

$CBPLE0E(CR)

Good Read Beep Length = 140 msec

$CBPLE10(CR)

Good Read Beep Length = 160 msec

$CBPLE12(CR)

Good Read Beep Length = 180 msec

$CBPLE14(CR)

Good Read Beep Length = 200 msec
