1 SKORPIO™ X3
6
1

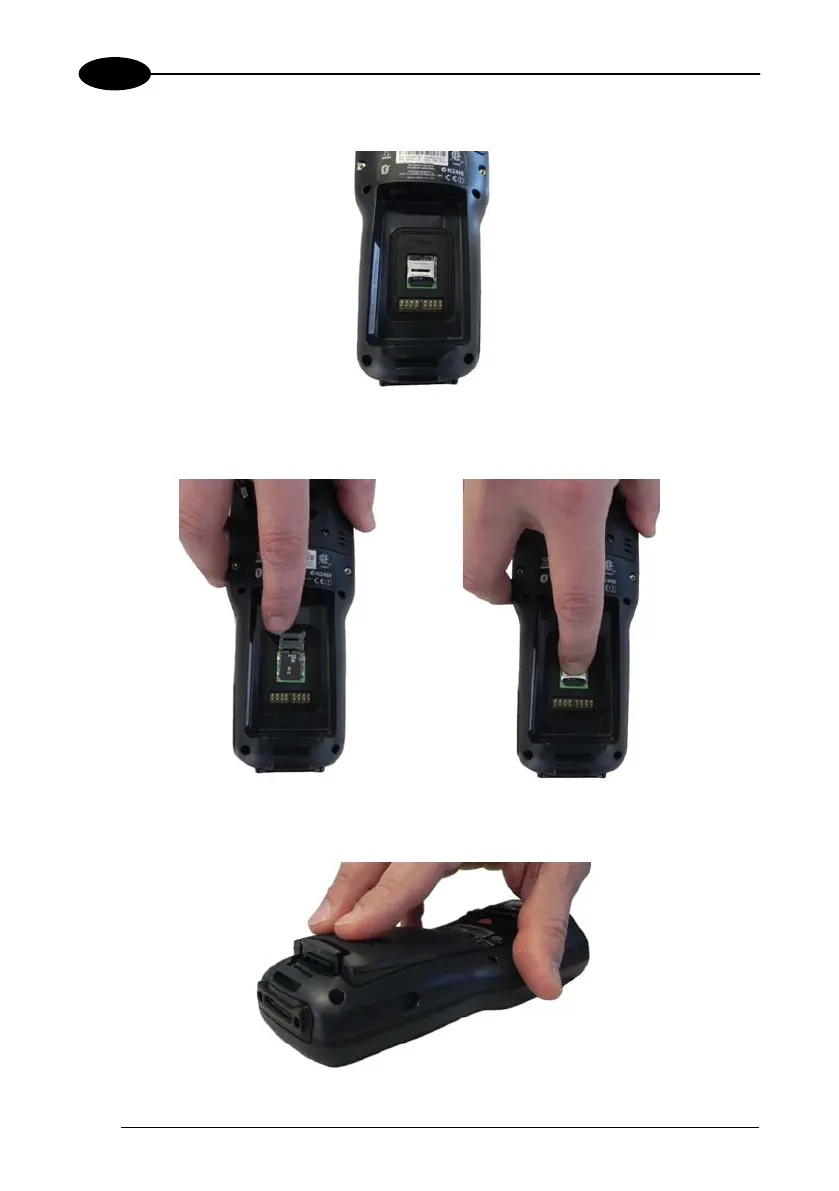

4. Insert the microSD card with the written part upward:
5. Lock the card into place by pushing the cardholder down and then shifting it
downwards:
6. Insert the battery's alignment lugs into the recesses, then press firmly until the
battery latch clicks twice.
