Datalogic Skorpio X3 User Manual

1 SKORPIO™ X3
46
4
4.6.1 Data Capture Configuration

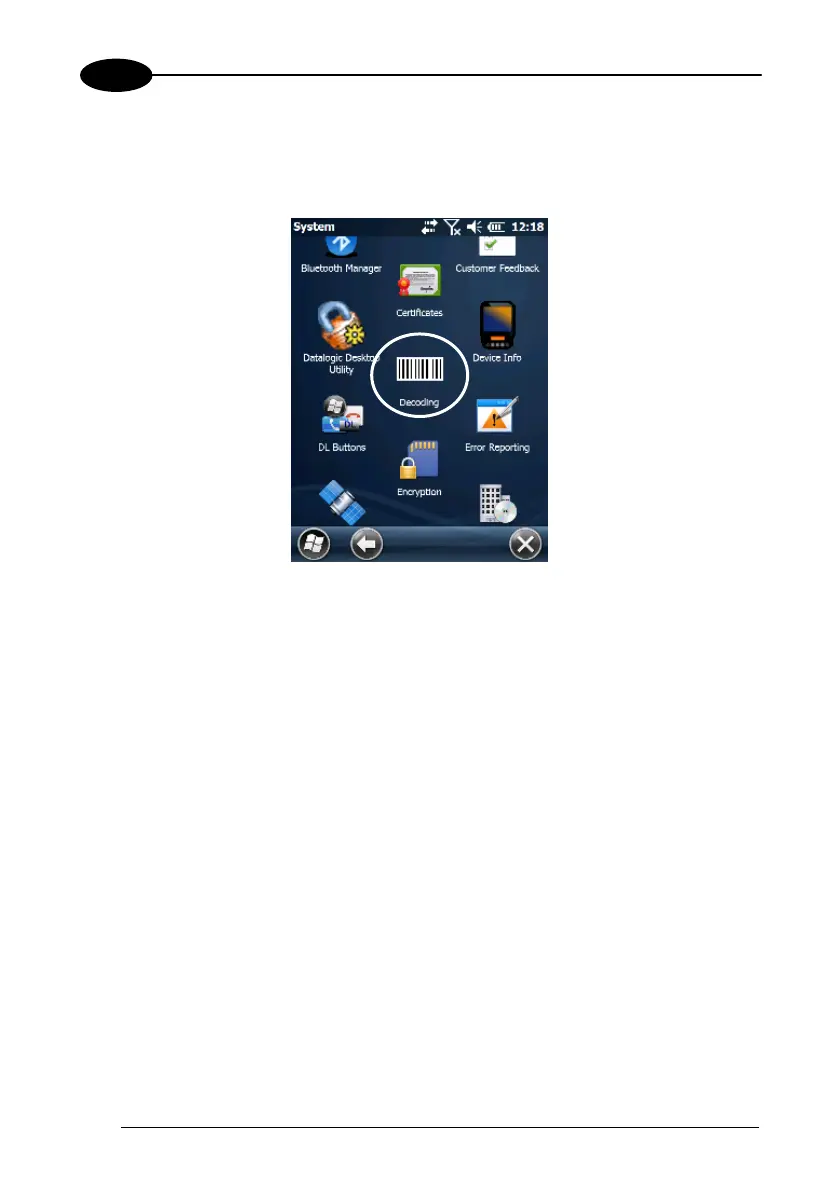

You can configure the Skorpio X3’s decoding options by tapping Start -> Settings ->
System -> Decoding:
There are two sections in the Decoding control panel, each containing additional
pages. There are seven General Configuration pages and multiple Barcode
symbology pages.
DECODING CONFIGURATION PAGES
Select the desired configuration from the options shown in the figure below, and the
other Decoding Properties figures on the following pages.
Select General,1D Bar Code or 2D Bar Code, then use the menu or tap the left and
right arrow keys to navigate the different pages of the Decoding utility. The menu
options will change to reflect the items most recently selected.

Datalogic Skorpio X3 Specifications

General

Display diagonal	3.2 \
Display resolution	240 x 320 pixels
Display number of colors	-
Flash memory	0.512 GB
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	microSD (TransFlash), microSDHC
Processor family	PXA 310
Processor frequency	0.624 GHz
GPS (satellite)	No
Operating system installed	Windows Embedded CE 6.0
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Security algorithms	CCX v4
Interface	USB 1.1, RS-232, micro USB
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Battery capacity	3000 mAh
Product color	Black
Keypad number of keys	38

Weight and Dimensions

Depth	156 mm
Width	76 mm
Height	193 mm
Weight	482 g
