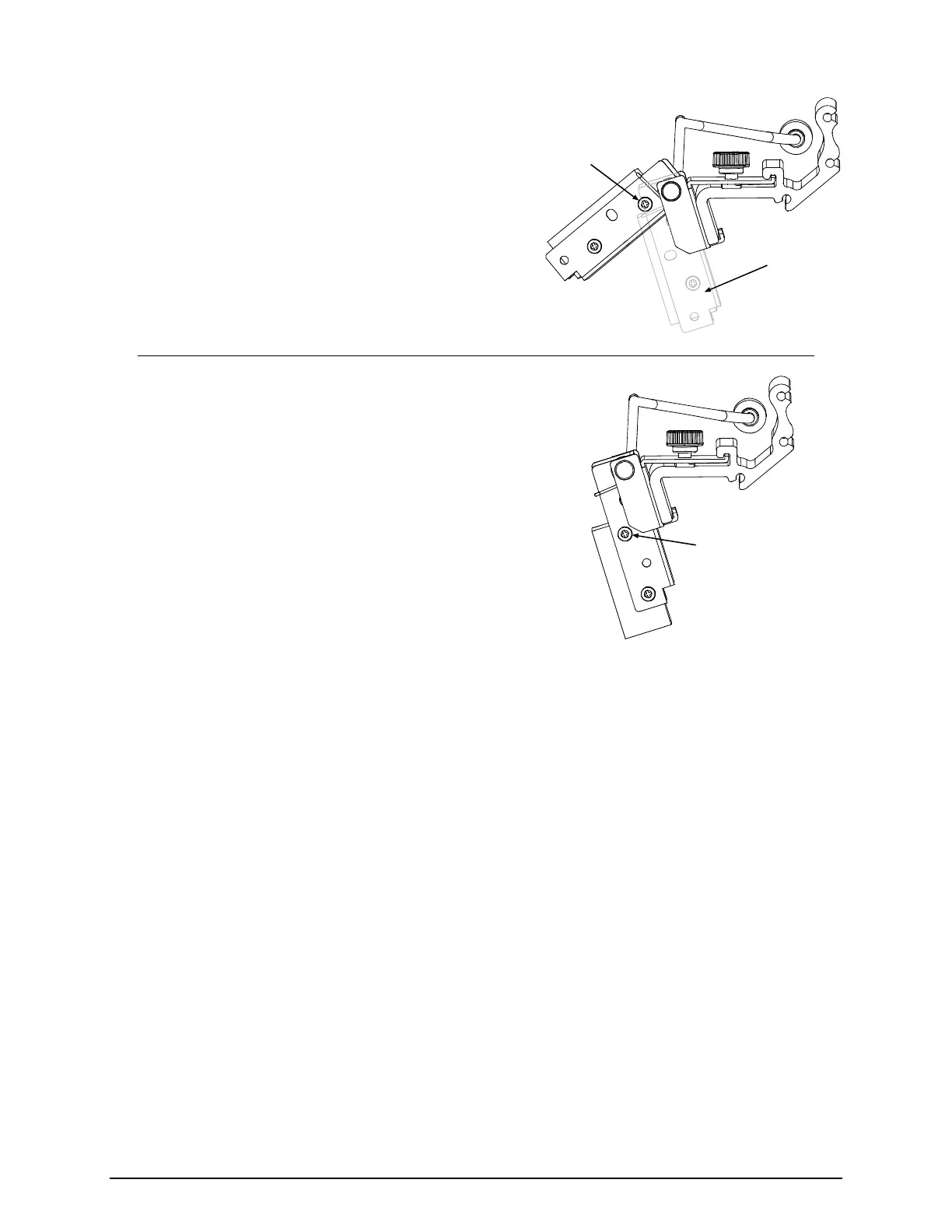

11) Proceed according to the Scan Position:
10-Mil Position: Carefully raise the Pivoting Mount
and then tighten the Locking Screw. Carefully lower
the Pivoting Mount.
Locking
Screw
Pivoting
Mount
5-Mil Position: Carefully tighten the Mounting Adjustment
Screw.
Mounting Adjustment
Screw
