Datamax Mark II E-4205e User Manual

Chapter 2 – Printer Setup 5
2
2
2
.
.
.
3
3
3
A
A
A
d
d
d
j
j
j
u
u
u
s
s
s
t
t
t
i
i
i
n
n
n
g
g
g
t
t
t
h
h
h
e
e
e
M
M
M
e
e
e
d
d
d
i
i
i
a
a
a
S
S
S
e
e
e
n
n
n
s
s
s
o
o
o
r
r
r
The printer is available with a Fixed-Position Media Sensor or an Adjustable Media Sensor. To identify the type
of sensor in your printer, proceed as follows:
1. Open the cover.
2. Push down the Printhead Latch and raise the Printhead Carrier Assembly.
The Fixed-Position Media Sensor, shown below, is immoveable. If your printer has this sensor, proceed to
‘Loading Media’ (Section 2.4).

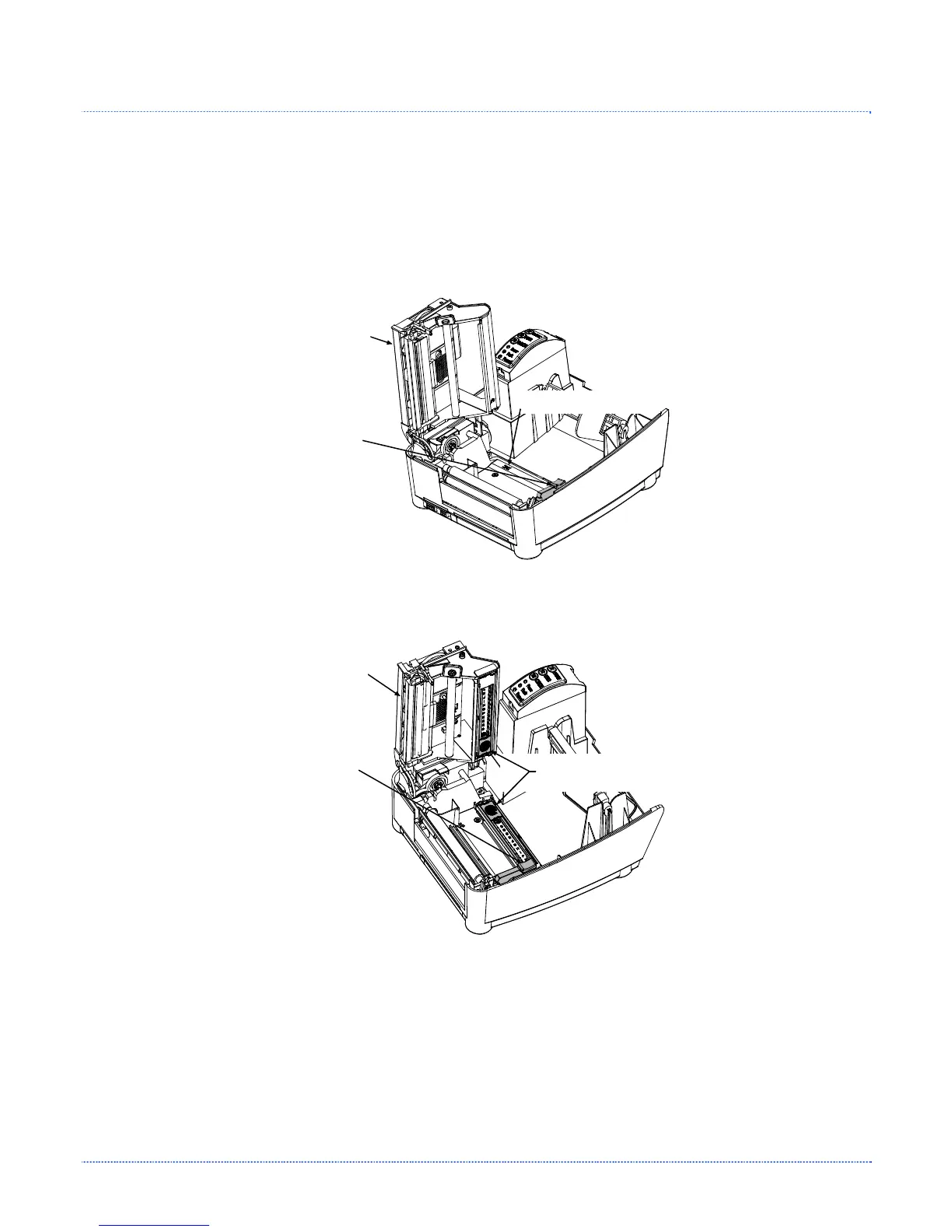

Fixed-Position Media Sensor
Printhead
Carrier Assembly
Printhead Latch
The Adjustable Media Sensor (AMS), shown below, may need to be positioned as described in section 2.3.1.
Adjustable Media Sensor
Printhead Latch
Printhead
Carrier Assembly
