28 Chapter 4 – Maintenance Adjustments
4
4
4
.
.
.
4
4
4
P
P
P
r
r
r
i
i
i
n
n
n
t
t
t
h
h
h
e
e
e
a
a
a
d
d
d
R
R
R
e
e
e
p
p
p
l
l
l
a
a
a
c
c
c
e
e
e
m
m
m
e
e
e
n
n
n
t
t
t
Always follow proper Electro Static Discharge procedures when replacing the printhead.
If thermal transfer equipped, it is not necessary to remove the Ribbon Handler Assembly; an access
hole is provided.

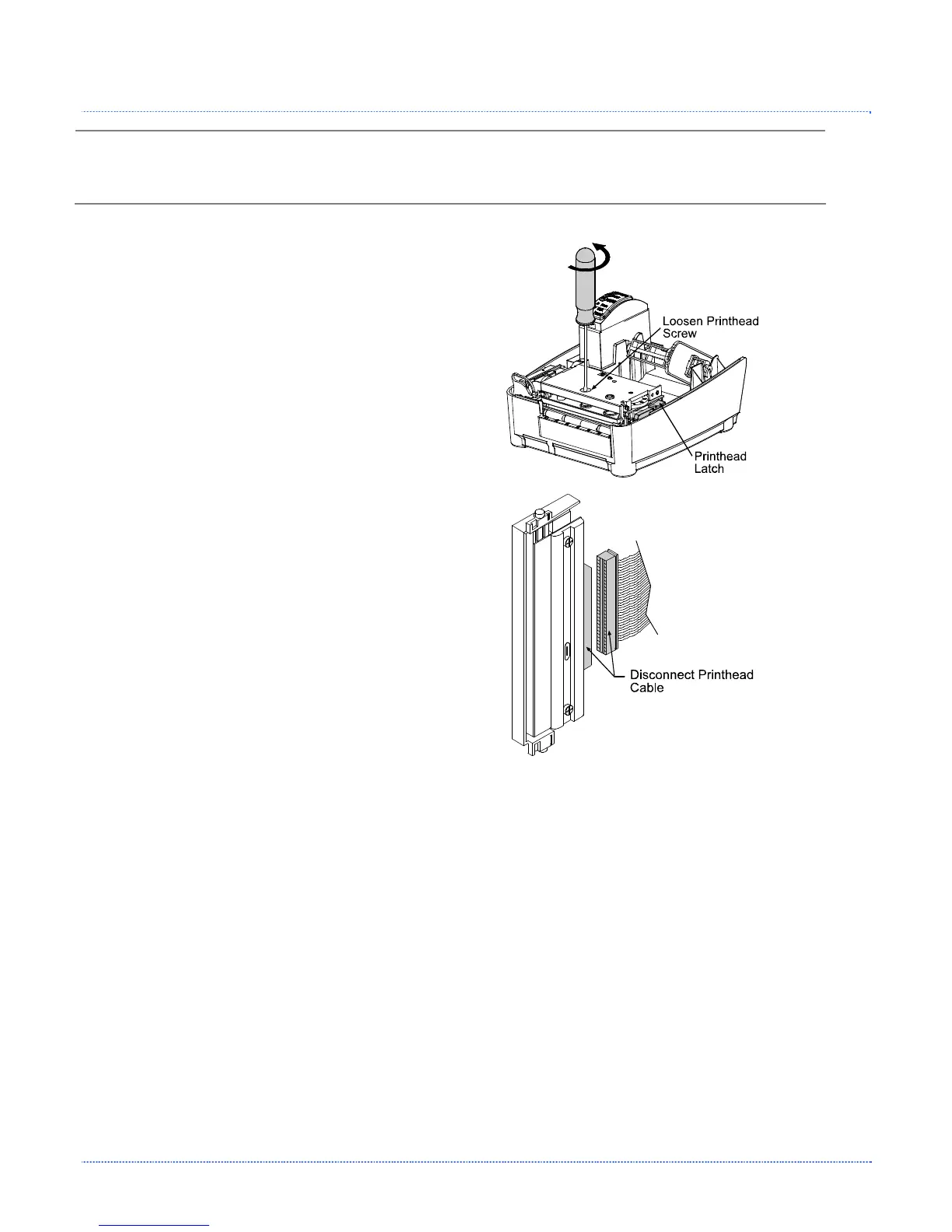

Remove the printhead as follows:
1. Turn off the printer.
2. Loosen the Printhead Screw until the
printhead is freed.
3. Press the Printhead Latch then raise the
carrier assembly.
4. Remove the printhead cable from the back of
the printhead.
Replace the printhead as follows:
1. Connect the printhead cable to the new printhead.
2. Position the printhead in the printhead carrier assembly, ensure that the printhead cable is not pinched,
and then tighten the Printhead Screw.
3. Clean the Printhead (see Section 4.1) and allow it to dry before use.
