Chapter 2 – Printer Setup 9
2.4.1 Loading Media for Optional Peel Configuration
When using the Peel Mechanism do not exceed print speeds of 4 inches per second.
1. Open the cover.
2. Push the Printhead Latch down and raise the Printhead Carrier Assembly.
3. Place a roll of media (labels facing up) on the Media Hub and insert them into the printer. Slide the Media
Hub Flange with its smooth side towards media onto the Media Hub.
4. Pull the Peel Lever forward to the ‘Open’ position.

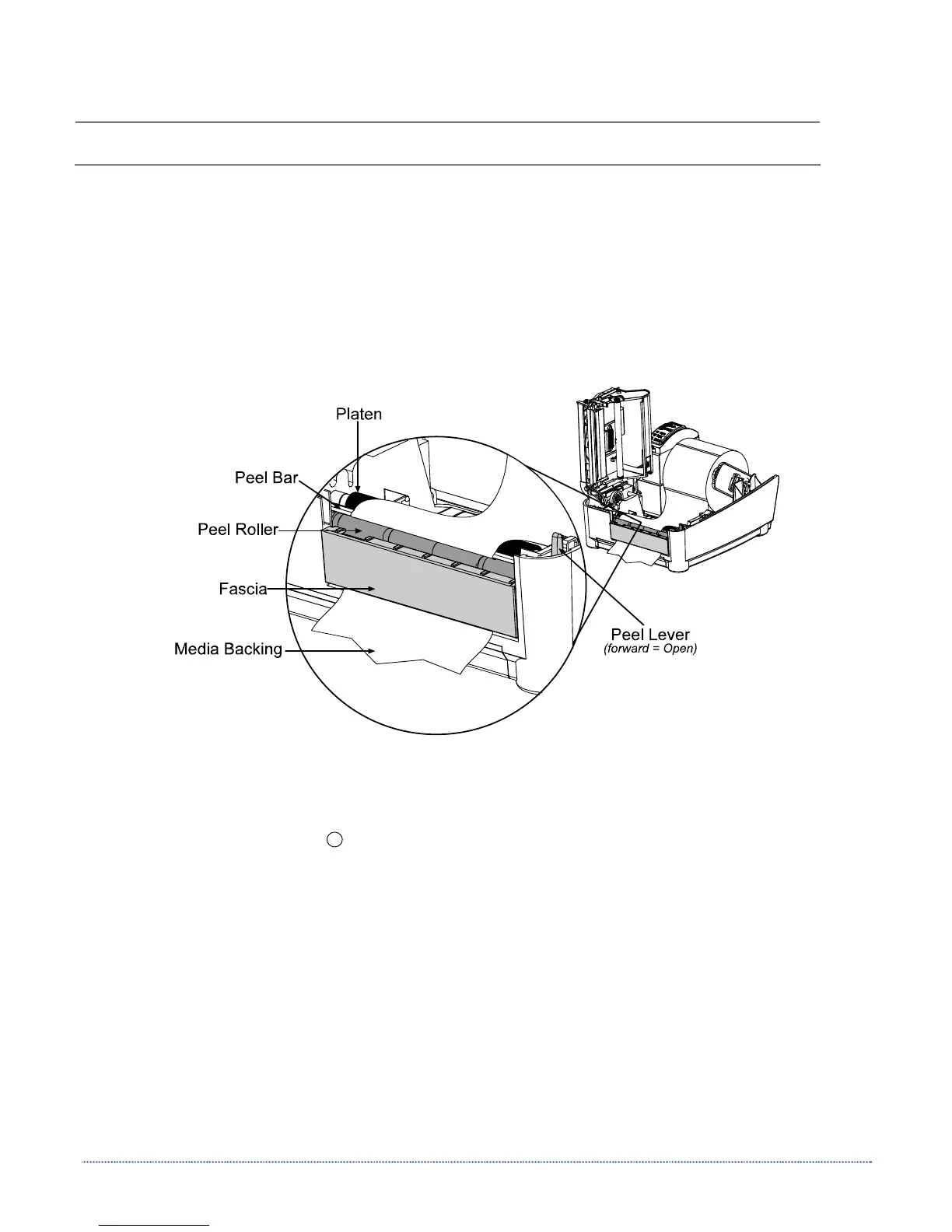

5. Remove 6 (152 mm) of labels from the backing. Route the Media Backing over the Platen and Peel Bar
and behind the Peel Roller and Fascia as shown below.
6. Push the Peel Lever back to the ‘Closed’ position.
7. Close the Printhead Carrier Assembly and press down until it locks into place.
8. Close the cover and press the
F2
button several times to advance the media and ensure proper tracking.
The labels will separate automatically as it is fed through the printer. (If the printer does not correctly
sense the top of each label, as denoted by the FAULT Light, it may be necessary to perform the Calibration
Procedure, Section 3.7.)
