3J2 BCD DIGITAL
INTERFACE
(Círcuit
Drawing
No
430332)
The
BCD Dig¡tal
lnterface
.sre#ly
contains
the
extra
memory
and circuitry
required
for the execution
and
decoding
of
interface
functions
and to
perform
data
output
transfers.

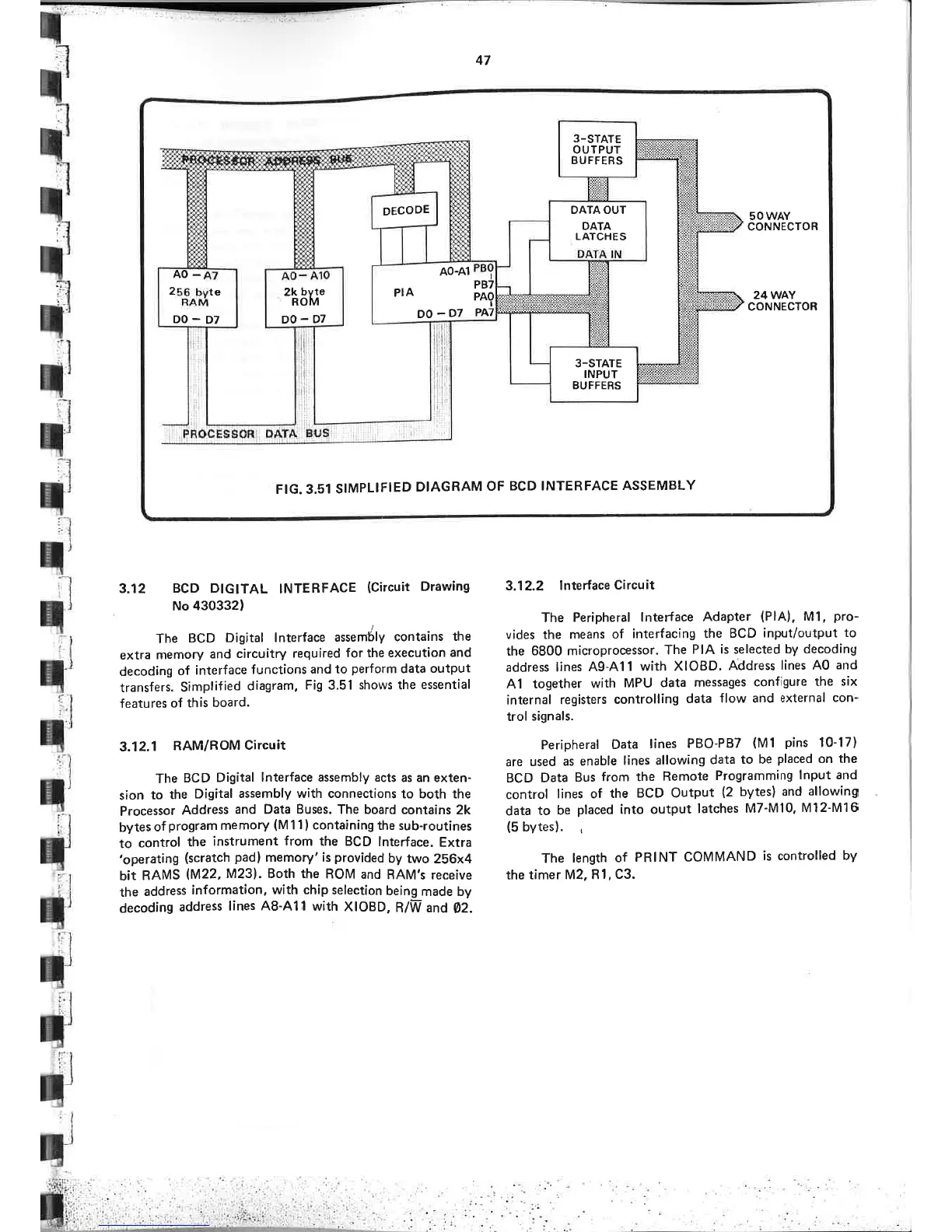

Simplified
diagram,
Fig 3'51
shows the
essential
features
of
this
board.
3.12.1
RAM/ROM
Circuit
The
BCD
Digital
lnterface assembly acts
as an exten-
sion
to
the
Digital
assembly with connections
to both the
Processor
Address
and Data Buses.
The board contains
2k
bytes
of
program
memory
(M
111 containing
the
sub-routines
to
control
the
instrument
from
the BCD
lnterface.
Extra
'operating
(scratch pad)
memory' is
provided
by two
256x4
bit
RAMS M22,M23l-.
Both the
ROM
and
RAM's
receive
the
address
information,
with
chip selection
being
made by
decoding
address
lines
A8-All
w¡th
XIOBD,
R/W and
Ø2.
3.12.2
lnterface
Circuit
The Peripheral
lnterface
Adapter
(PlA),
M1,
pro-
vides the means
of
interfacing
the
BCD
input/output to
the 6800
microprocessor.
The
PIA is selected by
decoding
address lines
A9-41
1
with XIOBD'
Address
lines A0
and
A1
together
with
MPU
data
messages
configure
the
six
internal
registers
controlling
data
flow and
external
con-
trol signals.
Peripheral
Data
lines
PBO-P87
(Ml
pins
10-17)
are
used
as enable
lines allowing
data
to be
placed
on
the
BCD Data
Bus
from the
Remote
Programming
lnput and
control
lines of
the
BCD Output
(2
bytes)
and
allowing
data
to
be
placed
ínto output
latches
M7-M10'
M12-M16
(5
bytes).
,
The
length
of
PRINT
COMMAND
is controlled
by
the timer
M2, R1,
C3.
,j::.;
OUTPUT
BU FFERS
3-STATE
3-STATE
INPUT
BUFFERS
DATA OUT
DATA
LATCHES
DECODE
P87
DO-D7
PIA
PAO
I
PA7
AO-A1
DO.
D7
bvte
OM
2k
R
DO-D7
AO-
256
byte
RAM
FIG.3.51
SIMPLIFIED
DIAGRAM
OF
BCD INTERFACE
ASSEMBLY
SOWAY
CONNECTOR
24WAY
CONNECTOR
