Datron 1061 - Write Mode; Read Mode

45
l3
M13/R3/R6/C16
CLOCK
M11
DECODER
M8
BINARY
COUNTER
M9
ADDRESS
LINE
SELECTOR
M1
RAM
Refresh
M4/Ms
BUFFERS

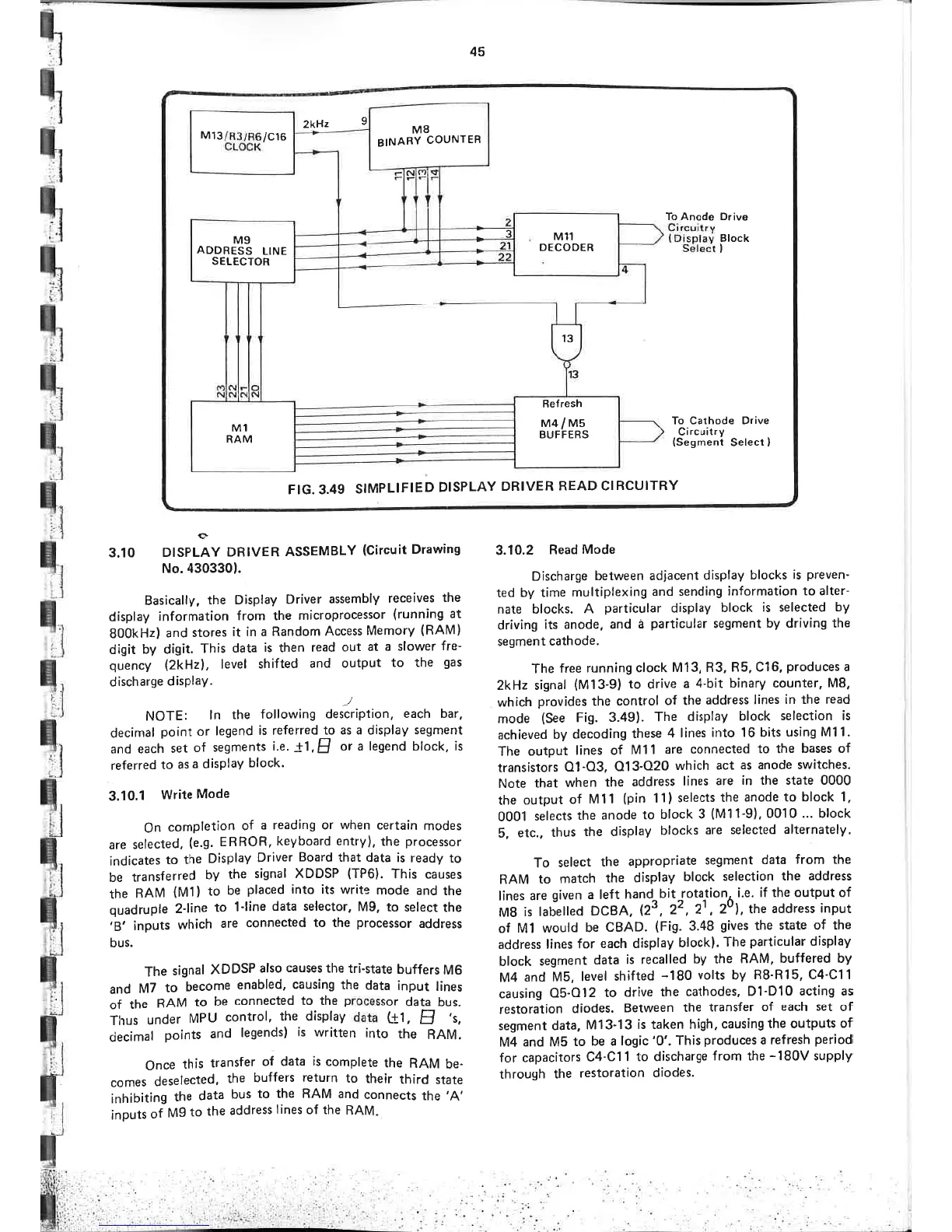

FIG.3.49
SIMPLIFIED
DISPLAY
DRIVER
READ CIRCUITRY
2k{z
9
To Anode Drive
C
ircuit
ry
(Display
Block
Select
l
To Cathode Drive
Circuitry
(Segment
Select
l
3.10
ç
DISPLAY
DR¡VER
ASSEMBLY
(Circuit
Drawing
No.430330).
Basically,
the Display
Driver
assembly
receives
the
display
information
from the
m¡croprocessor
(running
at
800kHz)
and
stores
it in a Random
Access
Memory
(RAM)
digit
by digit.
This
data
is then
read
out
at
a
slower fre-
quency
l2kïzl,
level
shifted
and output
to the
gas
discharge
display.
)
NOTE:
ln
the
following description,
each bar,
decimal
point
or
legend
is referred
to as a display
segment
and each
set
of
segments
i.e.
Jl,E
or a legend block,
is
referred
to
as
a disPlaY
block.
3.10.1
Write
Mode
On
completion
of
a reading or
when
certain
modes
are
selected,
(e.g.
ERROR,
keyboard
entry),
the
processor
indicates
to
the
Display
Driver
Board
that data
is ready
to
be transferred
by
the
signal XDDSP
(TP6).
This
causes
the
RAM
(M'l
)
to
be
placed
into its
write
mode
and the
quadruple
2-line
to
1'line
data
selector,
Mg, to
select
the
'B'
inputs
which
are
connected
to the
processor
address
bus.
The
signal
XDDSP
also
causes
the tri'state
buffers
M6
and
M7
to
become
enabled,
causíng
the
data
input
lines
of
the
RAM
to
be
connected
to the
processor
data
bus.
Tirus
under
MPU
control,
the display
data
(t1,
E
's,
cjecimal
points
and
legends)
is
written
into
the
RAM.
Once
this
transfer
of data
is
complete
the
RAM
be-
comes
deselected.
the
buffers
return
to
their
third
state
inhibiting
the
data
bus
to
the RAM
and
connects
the
'A'
3.10.2
Read Mode
Discharge
between adjacent
display
blocks
is
preven-
ted
by time
multiplexing
and
sending
information
to alter-
nate blocks.
A
particular
display
block
is selected
by
driving
its anode,
and
a
particular
segment by driving
the
segment
cathode.
The
free
running
clock
M13, R3, R5,
C16,
produces
a
2kHz signal
(M13-9)
to
drive
a 4-bit
binary counter,
M8,
which
provides
the control
of the
address
lines
in the read
mode
(See
Fig.
3.49).
The
display
block
selection is
achieved
by
decoding
these
4lines
into 16 bits
using M11.
The
output
lines of
Mll
are connected
to the
bases of
transistors
01-O3,
013-020
which
act as
anode switches.
Note
that
when
the
address
lines
are
in the state 0000
the
output
of
Ml1
(pin
11)selects
the
anode
to block 1,
0001
selects
the
anode
to
block
3
(M11'9),0010...
block
5,
etc.,
thus
the display
blocks
are
selected
alternately.
To
select
the
appropriate
segment data
from
the
RAM
to
match
the
display
block
selection
the address
lines
are
given
a left
hand^bitlota.tion^
i.e.
if the output of
M8
is labelled
DCBA,
(2t,2",2',2ul,,
the
address
input
of
Ml
would
be
CBAD.
(Fig.3'48
gives
the
state of the
address
lines
for
each display
block).
The
particular
display
block
segment
data
is recalled
by the
RAM,
buffered by
M4
and
M5,
level
shifted
-180
volts by
R8'R15, C4-C11
causing
O5-O12
to
drive
the
cathodes,
D1-D10
acting as
restoration
diodes.
Between
the
transfer
of
each
set of
segment data,
M13'13
is taken
high,
causing
the outputs
of
M4 and
M5
to
be a
logic'0'. This
produces
a refresh
period
for capacitors
C4'C11
to discharge
from the
-180V
supply
through
the
restoration
diodes.
inputs
of
M9
to
the
address
lines
of the
RAM
