DAVIS Vantage Vue User Manual

28
Mounting the Wireless Repeater
The wireless repeater can be installed on a flat surface or on a pole at the location
designated for installation. Use the U-bolts to install the wireless repeater on a pole or the
lag screws to install the repeater on a flat surface.
General Installation Guidelines
• The solar panel should face south if in the Northern Hemisphere, or north if in the
Southern Hemisphere.
• Rotate the antenna to vertical before mounting.
Installing the Repeater on a Flat Surface

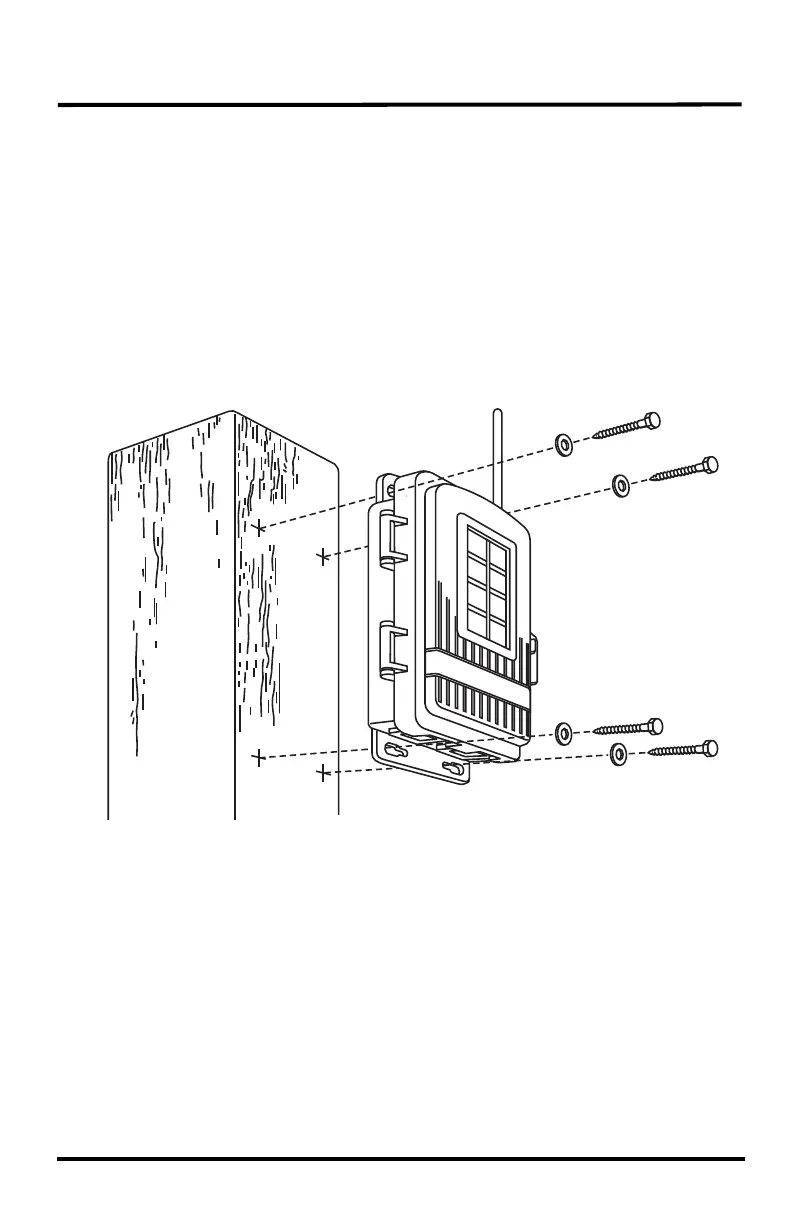

Refer to the following illustration to install the repeater on a post or flat vertical surface:
1. With a 3/16'' (5 mm) drill bit, drill four holes approximately 2-1/8'' (54 mm) apart. Use
a carpenter’s level to ensure the holes are level. Use the holes on the wireless repeater
box as a guide when marking the holes.
2. Drill two more holes 7-1/32" below the upper holes.
3. Insert the 1/4" x 1-1/2" lag screws through the flat washers, and through the holes at
the top and bottom of the shelter into the post.
4. Using an adjustable wrench or 7/16" wrench, tighten the lag screws.
Flat
Washer
Lag
Screw

DAVIS Vantage Vue Specifications

General

Wind Speed Range	2 to 150 mph (3 to 241 km/h)
Rain Collector Resolution	0.01 in (0.2 mm)
Rain Collector Type	Tipping bucket
Update Interval	2.5 seconds
Temperature Accuracy	±1°F (±0.5°C)
Humidity Accuracy	±3%
Wireless Transmission Range	up to 1000 ft (300 m)
Humidity Range	1 to 100% RH
Wind Direction	0 to 360°
Wind Direction Accuracy	±3°
Power Supply	Solar-powered with battery backup
Console Display	LCD with backlight
Power (Console)	3 C batteries or AC adapter
Wind Speed Accuracy	±2 mph (±3 km/h) or ±5%, whichever is greater
Solar Radiation Sensor	Not included
UV Sensor	Not included
Rain Measurement Accuracy	±4% at rates up to 2 in (50 mm) per hour
