DAVIS Vantage Vue User Manual

43

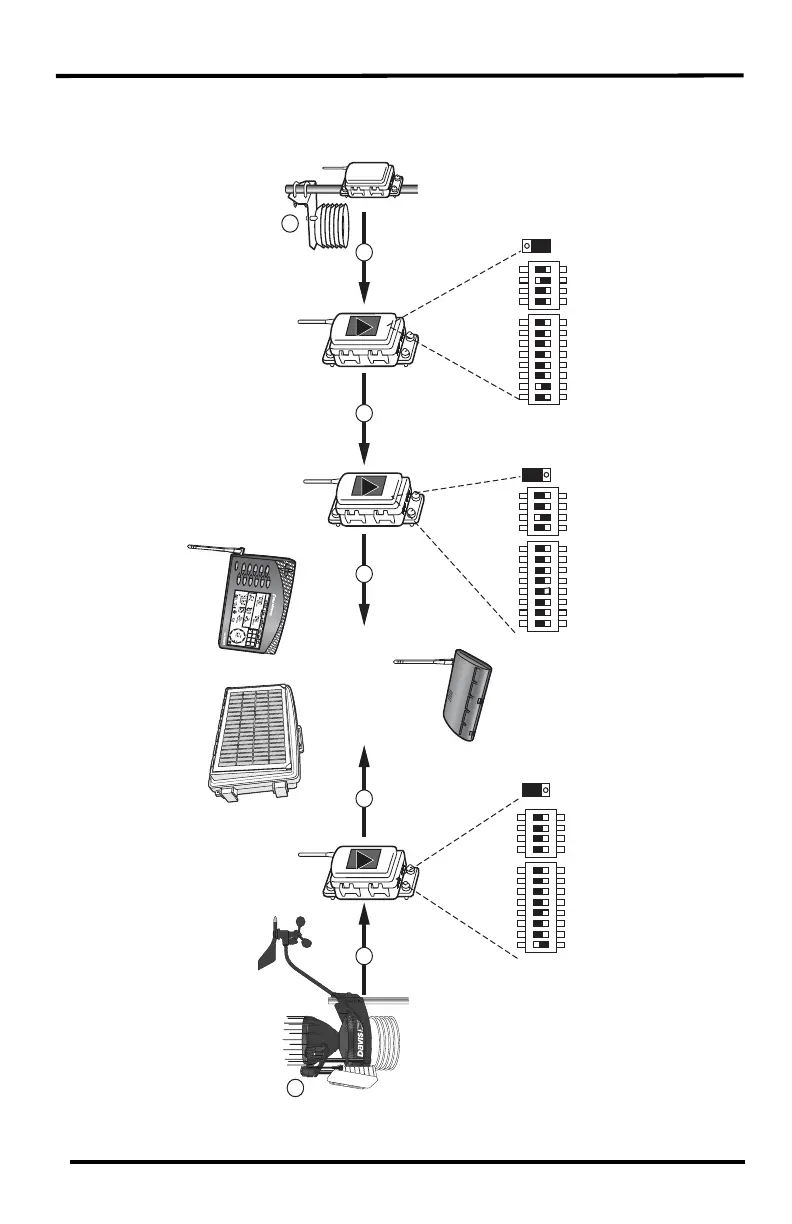

First In Chain Topology with Switch and Jumper Positions
1
B
C
A
1 1 2 2 2
2
Any Vantage Pro2
Station
Repeater
Repeater
First
In Chain
Repeater
Transmitter DIP Switch 1 ON
Repeater
DIP Switch
all OFF
Default
Jumper
Position
Transmitter DIP Switch all OFF
Repeater
DIP Switch
2 ON
Default
Jumper
Position
Transmitter DIP Switch 2 on
Repeater
DIP Switch
3 ON
Jumper
Position (First in
Chain)
Vantage Pro2
Console, Vantage Connect
OR
Weather Envoy
Temperature
/
Humidity
Station
™

DAVIS Vantage Vue Specifications

General

Wind Speed Range	2 to 150 mph (3 to 241 km/h)
Rain Collector Resolution	0.01 in (0.2 mm)
Rain Collector Type	Tipping bucket
Update Interval	2.5 seconds
Temperature Accuracy	±1°F (±0.5°C)
Humidity Accuracy	±3%
Wireless Transmission Range	up to 1000 ft (300 m)
Humidity Range	1 to 100% RH
Wind Direction	0 to 360°
Wind Direction Accuracy	±3°
Power Supply	Solar-powered with battery backup
Console Display	LCD with backlight
Power (Console)	3 C batteries or AC adapter
Wind Speed Accuracy	±2 mph (±3 km/h) or ±5%, whichever is greater
Solar Radiation Sensor	Not included
UV Sensor	Not included
Rain Measurement Accuracy	±4% at rates up to 2 in (50 mm) per hour
