DAVIS Vantage Vue User Manual

1
Wireless Repeater Overview
The Davis Wireless Repeater can be used with any Vantage Pro2 wireless station to
retransmit weather data to a Vantage Pro2 compatible receiver (Vantage Pro2 or Vantage
Vue console, Weather Envoy, Envoy8X, or Vantage Connect). It can be used to extend
the distance between one station and a receiver, or in conjunction with other repeaters to
create a flexible network of stations and repeaters.
Note: The repeater is fully compatible with Vantage Vue weather stations. Please refer to your Vantage Vue
Console Manual, Appendix C: Repeater Configuration, for specific Vantage Vue configuration
instructions. (The manual can be found on our web site at www.davisnet.com/support.) Please note that
the illustrations in this manual often depict multiple transmitters which are only supported in Vantage
Pro2 and Envoy.

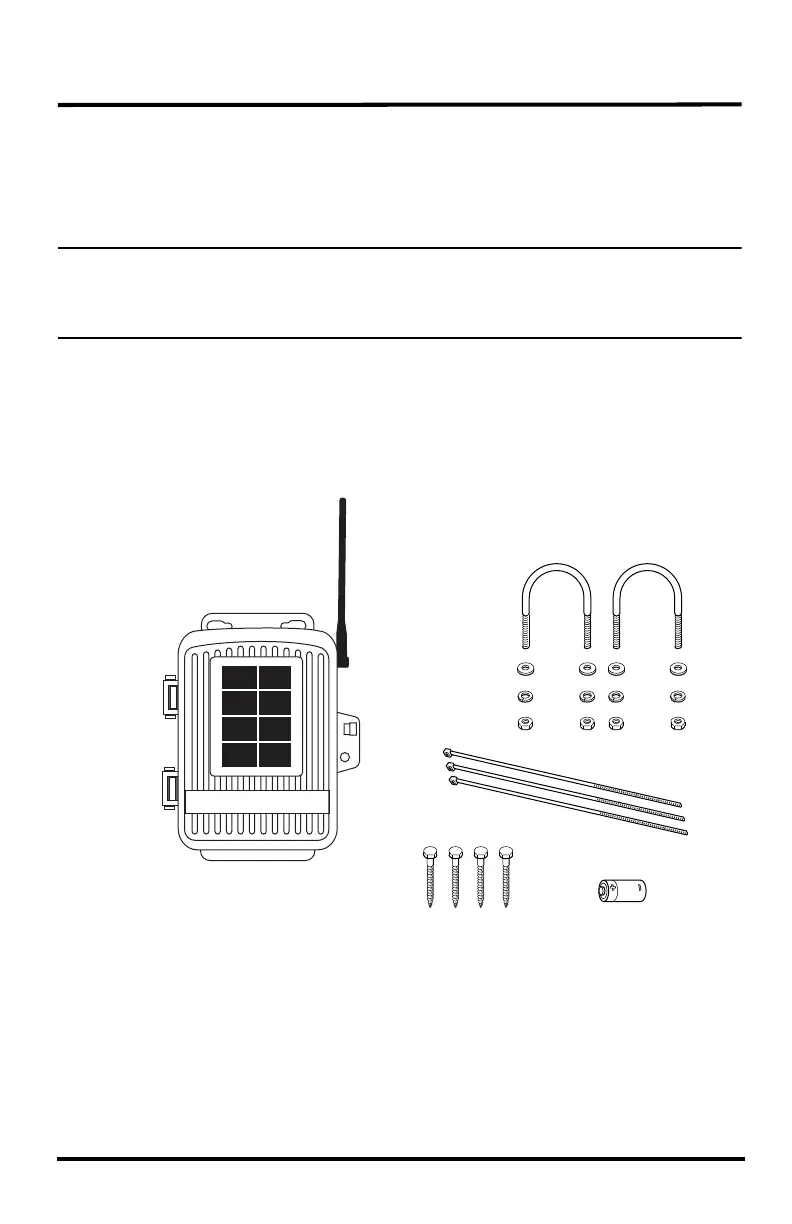

Included Components and Hardware
The Wireless Repeater comes with the components and hardware shown in the following
illustration. Some of the hardware might not be used, depending on how the repeater is
installed.
3-Volt Lithium
Battery
8" Cable Ties
1/4" x 1-1/2"
Lag Screws
Repeater in Shelter
with Solar Panel
U-Bolts
1/4" Flat Washers
1/4" Lock Washers
1/4" Hex Nuts

DAVIS Vantage Vue Specifications

General

Wind Speed Range	2 to 150 mph (3 to 241 km/h)
Rain Collector Resolution	0.01 in (0.2 mm)
Rain Collector Type	Tipping bucket
Update Interval	2.5 seconds
Temperature Accuracy	±1°F (±0.5°C)
Humidity Accuracy	±3%
Wireless Transmission Range	up to 1000 ft (300 m)
Humidity Range	1 to 100% RH
Wind Direction	0 to 360°
Wind Direction Accuracy	±3°
Power Supply	Solar-powered with battery backup
Console Display	LCD with backlight
Power (Console)	3 C batteries or AC adapter
Wind Speed Accuracy	±2 mph (±3 km/h) or ±5%, whichever is greater
Solar Radiation Sensor	Not included
UV Sensor	Not included
Rain Measurement Accuracy	±4% at rates up to 2 in (50 mm) per hour
