DAVIS Vantage Vue User Manual

41
2. Press WIND to enter Repeater Setup Mode and to select a repeater ID. Pressing 2ND and
WIND sets the console to receive the signal from a repeater instead of directly from a
station. Once the console is in the repeater setup mode, subsequent pressing of WIND
continue to cycle through the all the repeater IDs.

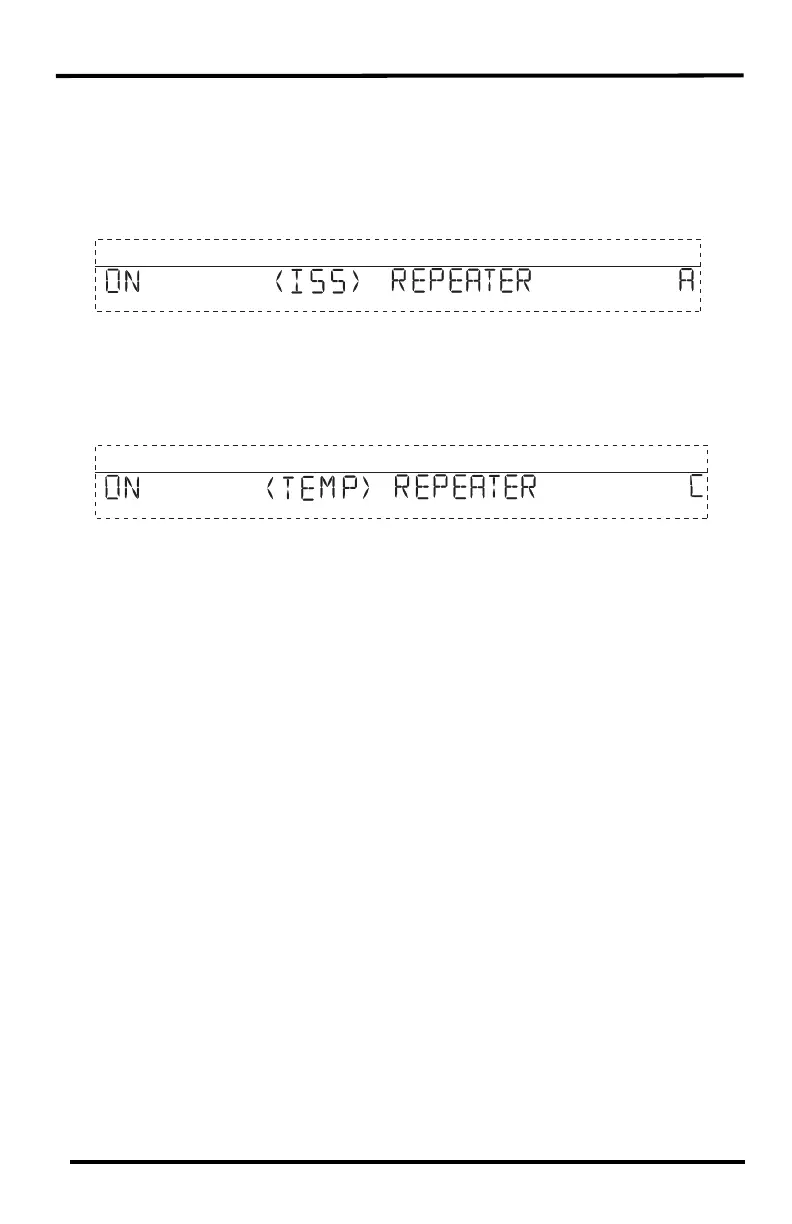

The example below indicates that the console is set up to receive repeater A for Transmitter
ID 1.
3. Select the next Transmitter ID using the second repeater chain.
4. Press 2ND and WIND to turn the repeater function on and display repeater ID information.
Keep pressing WIND until the Repeater ID for the last repeater in the second chain of
repeaters is displayed. The example below indicates that the console is set up to receive
repeater C for Transmitter ID 2.
5. Press DONE to continue to other screens in Setup Mode, or press and hold DONE to return
to Current Weather Mode.
1
2

DAVIS Vantage Vue Specifications

General

Wind Speed Range	2 to 150 mph (3 to 241 km/h)
Rain Collector Resolution	0.01 in (0.2 mm)
Rain Collector Type	Tipping bucket
Update Interval	2.5 seconds
Temperature Accuracy	±1°F (±0.5°C)
Humidity Accuracy	±3%
Wireless Transmission Range	up to 1000 ft (300 m)
Humidity Range	1 to 100% RH
Wind Direction	0 to 360°
Wind Direction Accuracy	±3°
Power Supply	Solar-powered with battery backup
Console Display	LCD with backlight
Power (Console)	3 C batteries or AC adapter
Wind Speed Accuracy	±2 mph (±3 km/h) or ±5%, whichever is greater
Solar Radiation Sensor	Not included
UV Sensor	Not included
Rain Measurement Accuracy	±4% at rates up to 2 in (50 mm) per hour
