SRK-FIFTYTOP,
brackets for hanging FIFTY TOP speakers in cascade.
DGS-FIFTYSUB,
brackets for stabilising a FIFTY SUB subwoofer or several
subwoofers side by side.

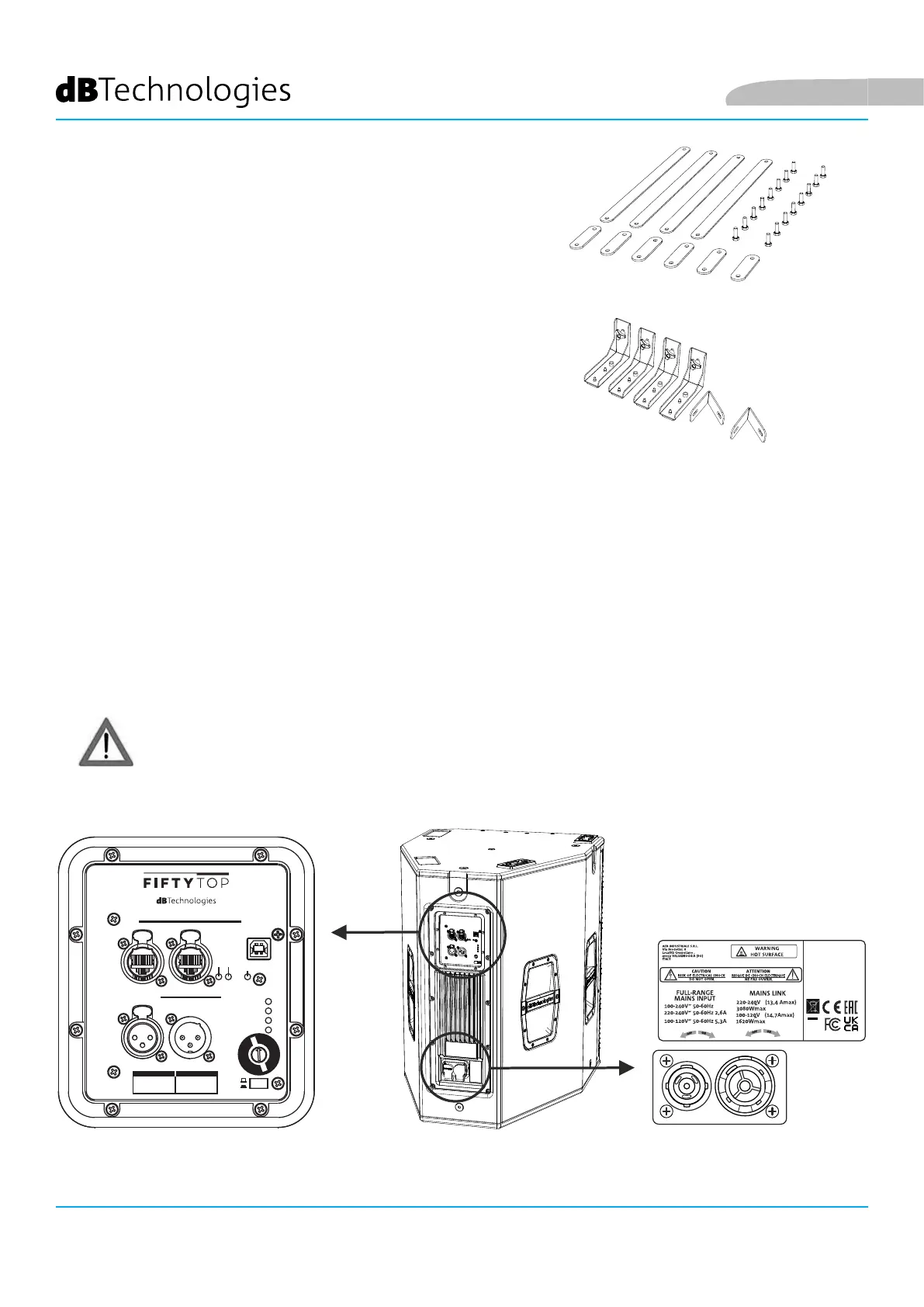

AMPLIFIER AND CONTROL SECTION FEATURES
The new generation PSC1 Class D digital amplier is the heart of the FIFTY LINE speaker and subwoofer. Totally
silent, it delivers amplication power of 1600 W RMS.
All the inputs and controls are grouped together on the preamp panel.
The connection panel features:
• Input, Output and Control section
• Power supply section
CAUTION!
• Protect the unit from moisture.
• Do not attempt to open the amplier.
• In the event of malfunction, immediately turn off the power, disconnect the unit from the
mains and contact an authorised service centre.
OFF
USER/
SERVICE
RDNet
Link
Active
Remote
Active
Data In Data Out
Input
Output
Link
ON
Limiter
Signal
Status
USB Data
Service
PRESET
Balanced Audio
ON
1
2
3
8
7
5
4
6
Double Systems
Single System
1 = Xover Flat
2 = Xover HFC
3 = Full Range Flat
4 = Full Range HFC
5 = Xover Flat
6 = Xover HFC
7 = Full Range Flat
8 = Full Range HFC
PRESET
