2. CONNECTIONS

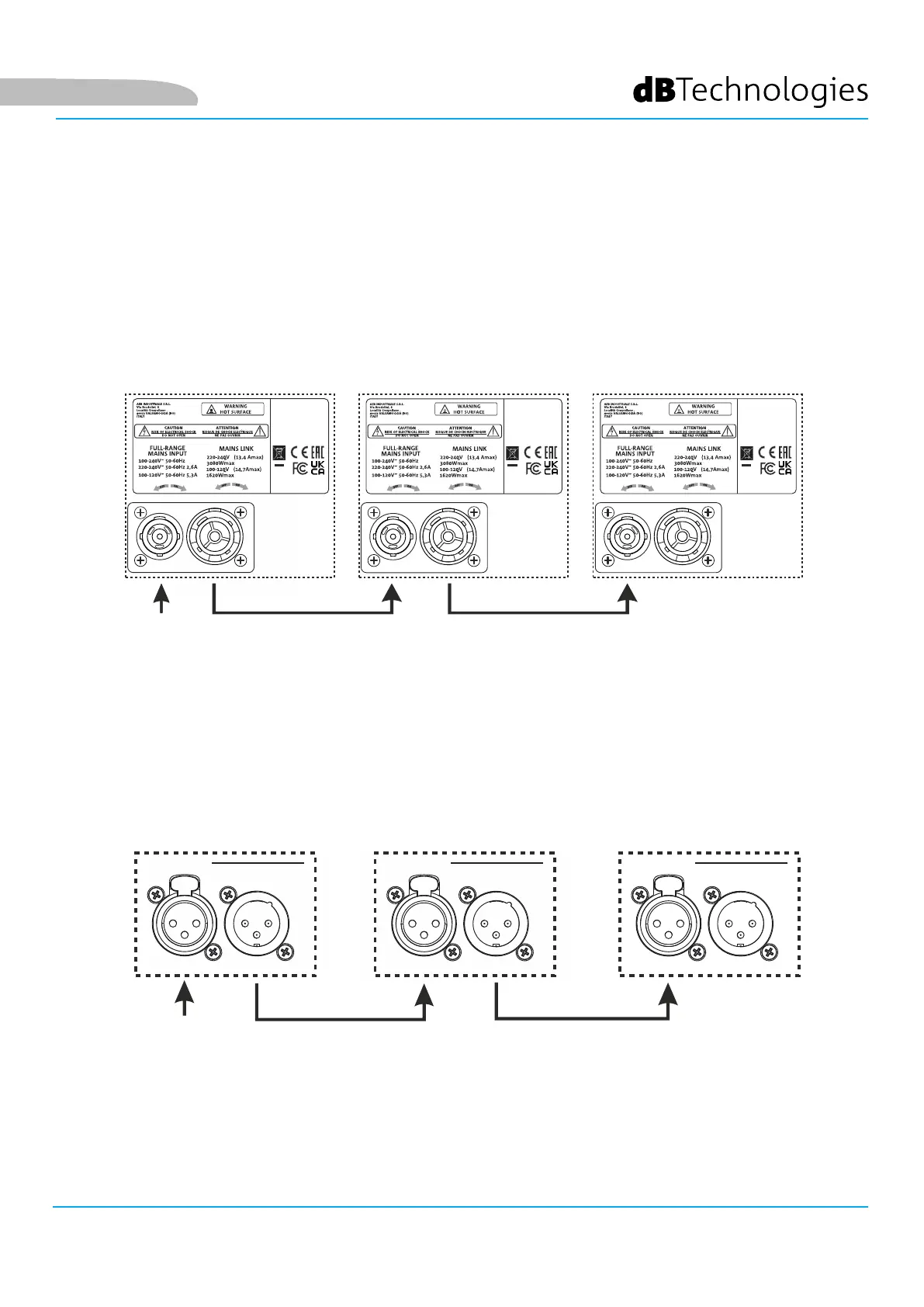

CONNECTING AND LINKING THE POWER SUPPLY
On FIFTY LINE, you can link the power supply from the rst speaker to the next, up to a total of 6 (1+5) in countries
with a 220–240Vac mains supply and up to 3 (1+2) in countries with a 100–120Vac mains supply.
To supply power to a system, simply connect the power cable provided to the MAINS INPUT on the rst subwoofer
and connect a second cable with suitable connectors (optional) from the MAINS LINK output to the MAINS INPUT
of the next subwoofer. Repeat the connection to power the top under all circumstances up to the maximum
permissible current specied on the MAINS LINK connector of the rst speaker.
POWER
SOURCE
FIFTY SUB 1 FIFTY SUB 2 FIFTY TOP
This device complies with
part 15 of the FCC Rules.
Operating in subject to the:
following two conditions:
(1) This device may not
cause harmful interference.
and (2) this device must
accept any interference
received, including
interference that may
cause undesired operation.
This device complies with
part 15 of the FCC Rules.
Operating in subject to the:
following two conditions:
(1) This device may not
cause harmful interference.
and (2) this device must
accept any interference
received, including
interference that may
cause undesired operation.
This device complies with
part 15 of the FCC Rules.
Operating in subject to the:
following two conditions:
(1) This device may not
cause harmful interference.
and (2) this device must
accept any interference
received, including
interference that may
cause undesired operation.
POWER
SOURCE
CONNECTING AND LINKING THE AUDIO SIGNAL
When connecting the system audio signal, connect the sound source to the “INPUT” of the rst subwoofer rst of all.
Then connect a balanced XLR cable from the “OUTPUT LINK” of the rst subwoofer to the “INPUT” of the second
one. Repeat this step from the second subwoofer to the top.
FIFTY SUB 1 FIFTY SUB 2
AUDIO
SOURCE
FIFTY TOP
Input
Output
Link
Balanced Audio
Input
Output
Link
Balanced Audio
Input
Output
Link
Balanced Audio
AUDIO
SOURCE
