Fifty Line Cod. 420120397 REV. 1.0

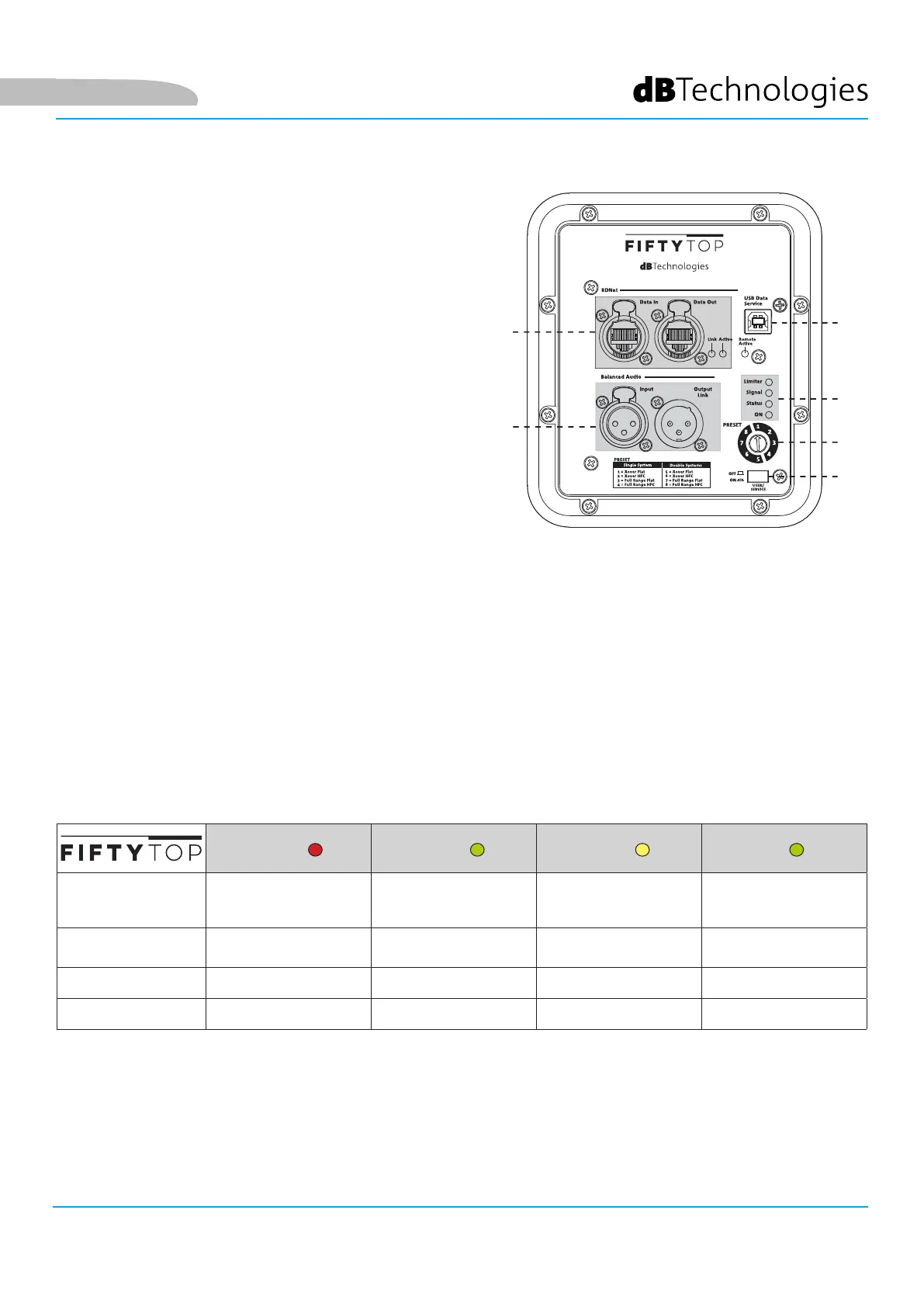

FIFTY TOP INPUT, OUTPUT AND CONTROL SECTION
1. AUDIO INPUT AND LINKING (“Balanced audio”)
Input and output compatible with balanced XLR cables.
In particular:
• “Input” is used to connect the audio signal from
the FIFTY SUB subwoofer;
• “Output Link” is used to link the signal to other
speakers in a daisy-chain conguration.
2. RDNet NETWORK CONECTION INPUT AND LINKING,
RDNet STATUS LEDS
Section compatible with network cables tted with
etherCON/RJ45 connectors. In particular:
• “Data In” is used to connect the network signal
from the FIFTY SUB subwoofer
• “Data Out” is used to link the network to other
devices in a daisy-chain conguration
The LEDs indicate the network (RDNet) operating status
of the monitor.
In particular:
• “Link” illuminates to indicate that the RDNet network is active and has recognised the device
• “Active” ashes to indicate the presence of data trafc
• “Remote Preset Active” warns that all local controls on the amplier panel are bypassed by the RDNet
remote control or by a “User” memory, which can be loaded by pressing the “User” button
3. USB SERVICE DATA
Using this standard type B USB port, you can update the product's rmware using a PC and USB BURNER
MANAGER. For further information, refer to the “DOWNLOADS” section of the http://www.dbtechnologies.com
website and the “UPDATING THE FIRMWARE” chapter.
4. STATUS LEDs
The LEDs provide an immediate indication of the speaker status, in accordance with the logic summarised in the
table below:
Limiter Signal Status On
Power up OFF OFF
STEADILY LIT FOR A
FEW SECONDS
OFF
Use
COMPRESSION
LIMITER STATUS
SIGNAL OUTPUT
STATUS
OFF STEADILY LIT
Partial malfunction ACTIVE ACTIVE CYCLIC FLASHING STEADILY LIT
Total malfunction CYCLIC FLASHING OFF STEADILY LIT OFF
1
2
6
3
5
4
