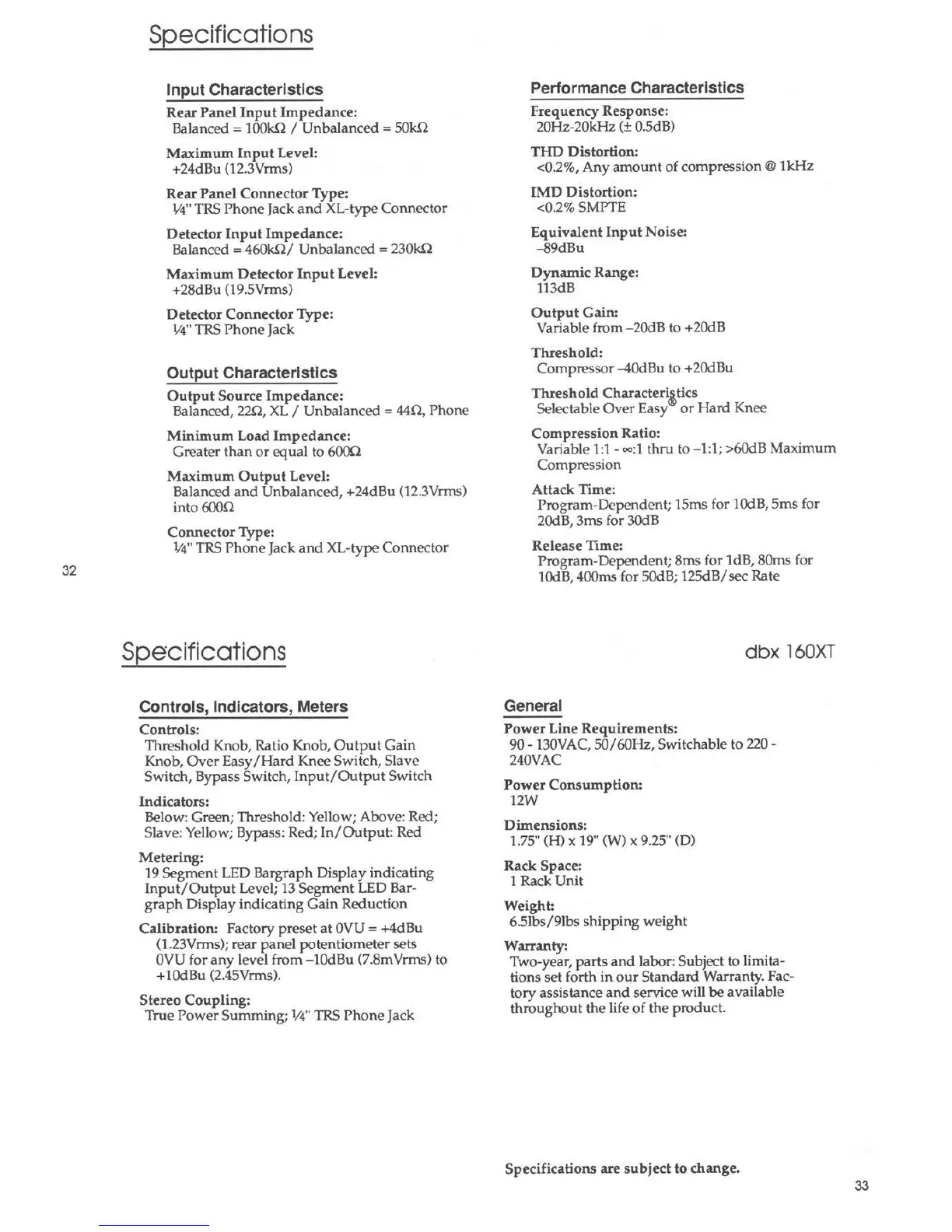

Specifications
Input Characteristics
Rear Panel Input Impedance:
Balanced = 1 ()()k.Q / Unbala nced = SOk.Q
Maximum Input Level:
+24dBu (12.3Vrms)
Rear Panel Connector Type:
1/4" TRS Phone Jack and XL-type Connector
Detector Input Impedance:
Balanced = 4601<.Q/ Unbalanced = 2301<.Q
Maximum Detector Input Level:
+28dBu (19.SVrms)
Detector Connector Type:
1/4" TRS Phone Jack
Output Characteristics
Output Source Impedance:
Balanced, 22.Q, XL / Unbalanced = 440, Phone
Minimum Load Impedance:
Greater than or equal to 600Q
Maximum Output Level:
Balanced and Unbalanced, +24dBu (12.3Vrms)
into 6000
Connector Type:
¼" TR5 Phone Jack and XL-type Connector
Specifications
Controls, Indicators, Meters
Controls:
Threshold Knob, Ratio Knob, Output Gain
Knob, Over Easy /Hard Knee Switch, Slave
Switch, Bypass Switch, Input/Output Switch
Indicators:
Below: Green; Threshold: Yellow; Above: Red;
Slave: Yellow; Bypass: Red; In/Output: Red
Metering:
19 Segment LED Bargraph Disp lay indicating
Input/Output Level; 13 Segment LED Bar-
graph Display indicating Gain Reduction
Calibration: Factory preset at OVU = +4d8u
(1.23Vrms); rear panel potentiometer sets
OVU for any level from - lOdBu (7.8m Vrms) to
+ lOdBu (2.45Vrms).
Stereo Coupling:
True Power Summing; l/4" TR5 Phone Jack
Performance Characteristics
Frequency Response:
20Hz-20kHz (+ O.SdB)
THO Distortion:
<0.2%, Any amount of compression@ lkHz
IMO Distortion:
<0.2% SMPTE
Equivalent Input Noise:
-89dBu
Dynamic Range:
113dB
Output Gain:
Variable from - 20dB to +20dB
Threshold:
Compressor -40dBu to +20dBu
Threshold Characteriitics
Selectable Over Easy or Hard Knee
Compression Ratio:
Variable 1:1 - oo:1 thru to - 1:1; >60dB Maximum
Compression
Attack Time:
Program-Dependent; 1Sms for lOdB, Sms for
20dB, 3ms for 30dB
Release Time:
Program-Dependent; 8ms for ldB , 80ms for
lOdB, 400ms for SOdB; 125dB/sec Rate
dbx 160XT
General
Power Line Requirements:
90-130VAC, 50/60Hz, Switchable to 220-
240VAC
Power Consumption:
12W
Dimensions:
1.75" (H) x 19" (W) x 9 .25" (D)
Rack Space:
1 Rack Unit
Weight:
6.Slbs/9lbs shipping weight
Warranty:
Two-yea r, parts and labor: Subject to limita-
tions set forth in our Standard Warranty. Fac-
tory assistance and service will be available
throughout the life of the product.
Specifications are subject to change.
