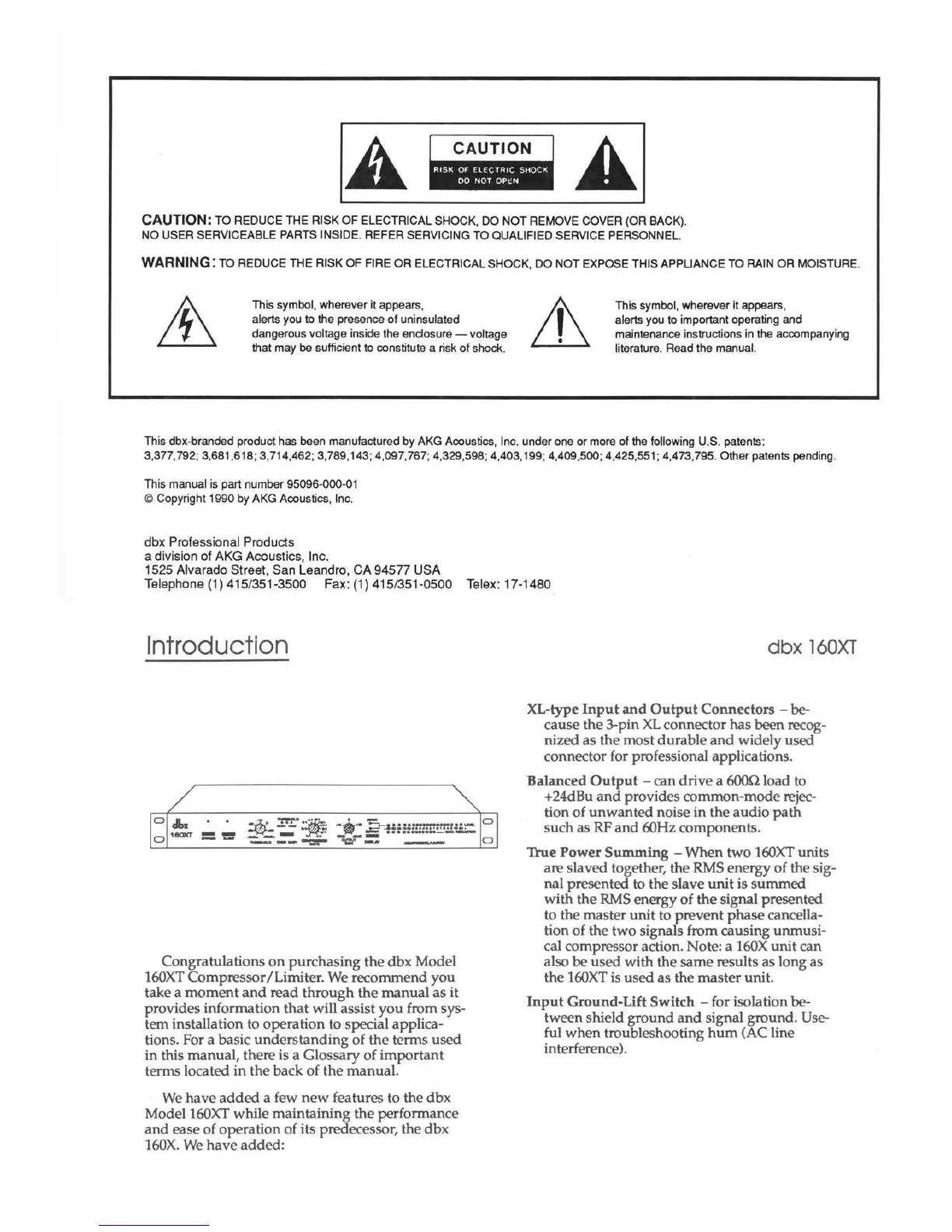

CAUTION
RISK OF ELECTR IC SHOCK
00 NOT OPtN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK , DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK , DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE .
This symbol, wherever it appears ,
alerts you to the presence of uninsulated
dangerous voltage inside the enclosure - voltage
that may be sufficient to constitute a risk of shock.
This symbol, wherever it appears,
alerts you to important operating and
maintenance instructions in the accompanying
literature. Read the manual.
This dbx-branded product has been manufactur ed by AKG Acoustics, Inc. under one or more of the following U.S. patents :
3,377,792; 3,681 ,618 ; 3,714,462; 3,789,143 ; 4,097,767 ; 4,329,598; 4,403,199 ; 4,409,500; 4,425,551 ; 4,473,795. Other patents pending.
This manual is part number 95096-000-01
© Copyright 1990 by AKG Acoustics, Inc.
dbx Professiona l Products
a division of AKG Acoustics, Inc.
1525 Alvarado Street, San Leandro, CA 94577 USA
Telephone (1) 415/351-3500 Fax: (1) 415/351-0500 Telex: 17-1480
Introduction dbx 160XT
/
""
0
cln
•
•
:ifrj. ,,.. •. .,
... ,._ ~1••:••n1nnn1r.1•-
. .• =,tE
-- - . .. ·••··4•······ •· ,_,.
-
-
- -
·····-----
0
-
-
--- -
- --
"'-··
_.., --·
"QI'
-
Congratulations on purchasing the dbx Model
160XT Compressor /Limiter . We recommend you
take a moment and read through the manual as it
provides information that will assist you from sys-
tem installation to operation to special applica-
tions. For a basic understanding of the terms used
in this manual, there is a Glossary of important
terms located in the back of the manual.
We have added a few new features to the dbx
Model 160XT while maintaining the performance
and ease of operation of its predecessor, the dbx
160X. We have added:
0
0
XL-type Input and Output Connectors - be-
cause the 3-pin XL connector has been recog-
nized as the most durable and widely used
connector for professional applications.
Balanced Output - can drive a 6000 load to
+24dBu and provides common-mode rejec-
tion of unwanted noise in the audio path
such as RF and 60Hz components.
True Power Summing - When two 160XT units
are slaved together, the RMS energy of the sig-
nal presented to the slave unit is summed
with the RMS energy of the signal presented
to the master unit to prevent phase cancella-
tion of the two signals from causing unmusi-
cal compressor action. Note: a 160X unit can
also be used with the same results as long as
the 160XT is used as the master unit.
Input Ground-Lift Switch - for isolation be-
tween shield ground and signal ground. Use-
ful when trouble shooting hum (AC line
interference).
