DriveRack® 260 User Manual
Application Guide
Section 7

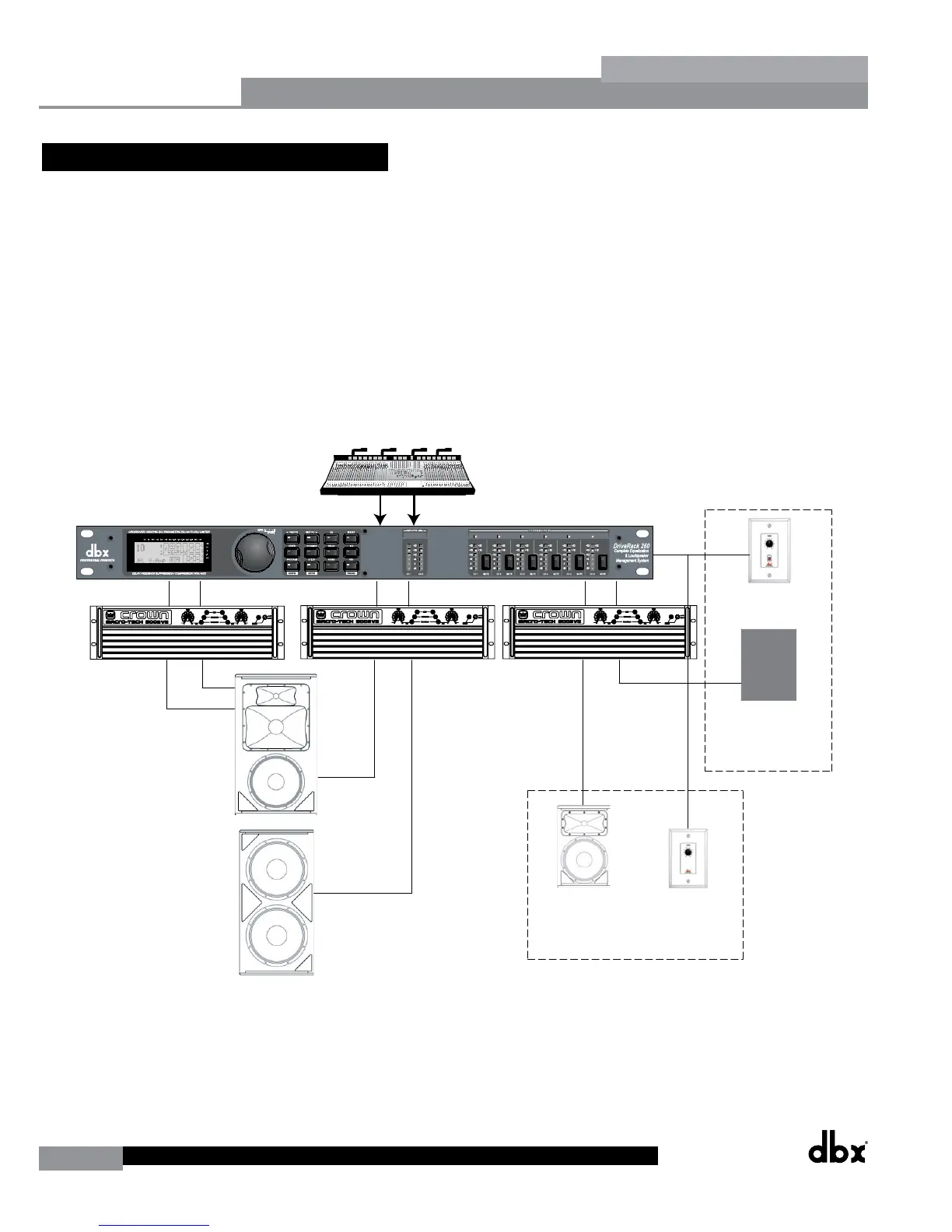

7.4 Stereo Bi-amp w/ Dual Delay
Hardware
1. Connect the outputs from the mixer to the inputs of the DriveRack.
2. Connect the outputs of the DriveRack and run to the selected speaker amplifier.
3. Making sure that all outputs are muted, apply power to the mixer and amplifiers.
4. Make connections between the Zone Controllers (see section “6.2 ZC-Zone Controllers”) and the 260.
Software
1. Select a program (Factory: 1x4 w/ 2 Zones) as a template.
2. Load the program by pressing the PROG/CONFIG button.
3. Adjust the individual parameters for the system by pressing the Processing Module buttons.
4. Using the Utility Menu, select the ID for each ZC-1 and ZC-2 Zone Controller and program its output level boost and
cut parameters.
JBL AE Series
AM6315/95
Zone A
JBL AE Series
AC2212/95
2 435
Zone B
JBL Control 25
JBL AE Series
ASB6128
dbx ZC-2
dbx ZC-1
Left
Right
MA-5002VZ
