DriveRack® 260 User Manual
Appendix
Appendix

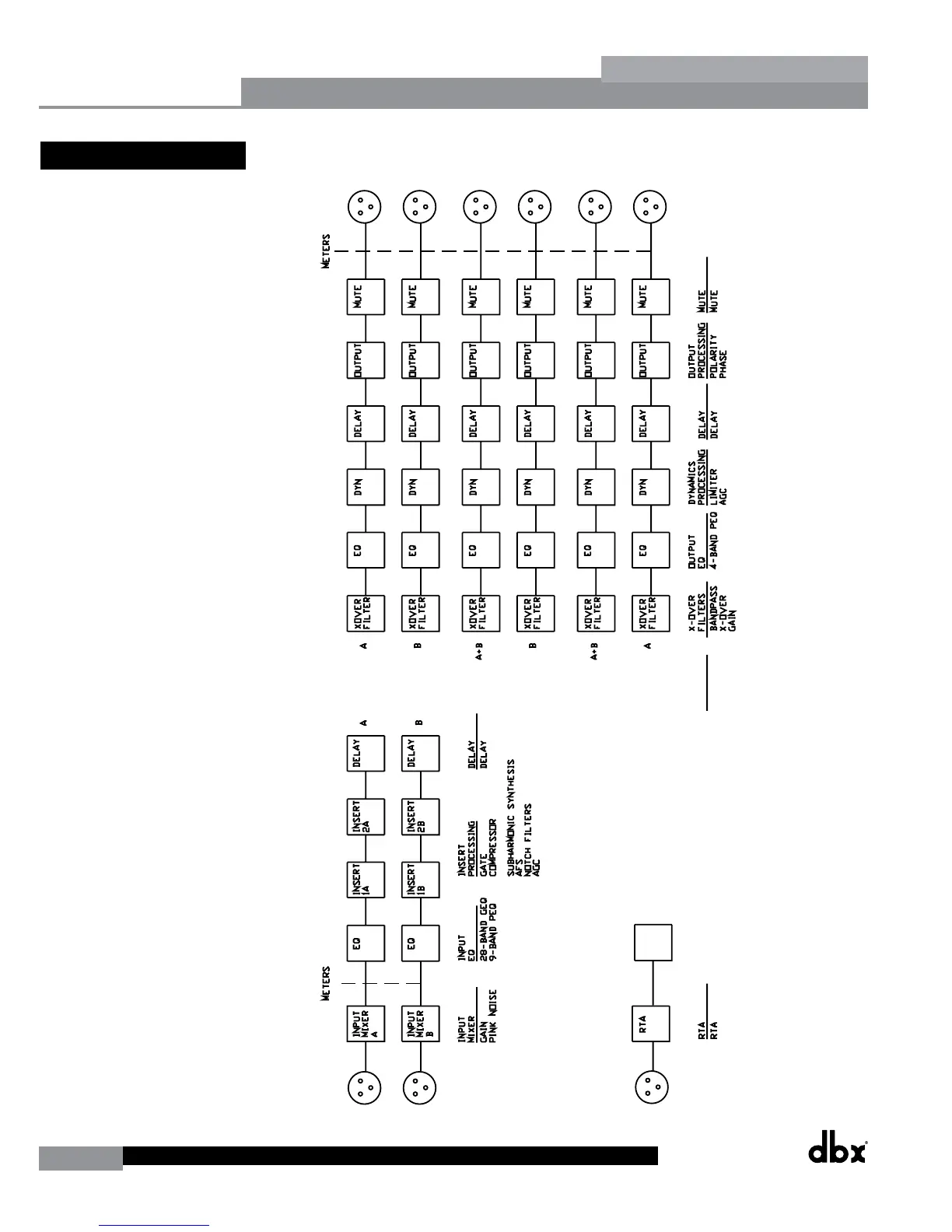

A.7 Block Diagram
260 Signal Path
WIRE
RTA
MIXER
ROUTING
A
B
A+B
RTA
