dbx DriveRack - 2 X5 Crossover

®
Hardware

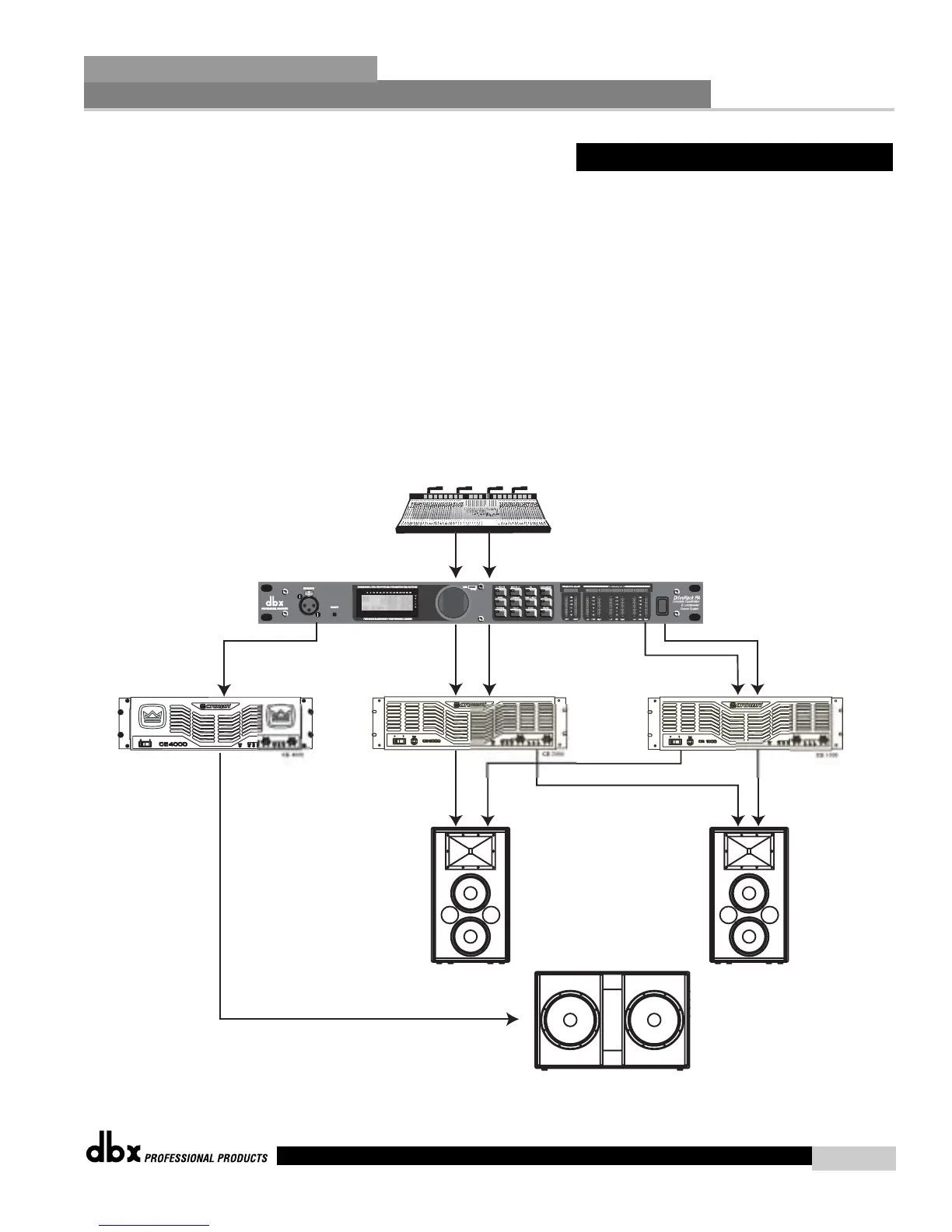

1. Connect the outputs from the mixer to the inputs of the DriveRack™.
2. Connect the outputs of the DriveRack™ PA and run to the selected speaker amplifier.
3. Make sure that the mixer and power amps are turned off prior to powering up the
DriveRack™ PA.
Software
1. From Program mode, select factory program #F2 (3 Way w/mSub) as a template, or use the
Wizard to setup the specific program.
2. Once the program has been chosen, press the DATA wheel to load the program.
5.2- 2X5 Crossover
Application Guide
Section 5
DriveRack
™
PA
31
