dbx DriveRack - 2 X4 Crossover

Application Guide
®
32
Section 5
DriveRack
™
PA
Hardware
1. Connect the outputs from the mixer to the inputs of the DriveRack™.
2. Connect the outputs of the DriveRack™ PA and run to the selected speaker amplifier.
3. Make sure that the mixer and power amps are turned off prior to powering up the
DriveRack™ PA.
Software
1. From Program mode, select factory program #F14 (MP212 2X4) as a template, or use the
Wizard to setup the specific program.
2. Once the program has been chosen, press the DATA wheel to load the program.

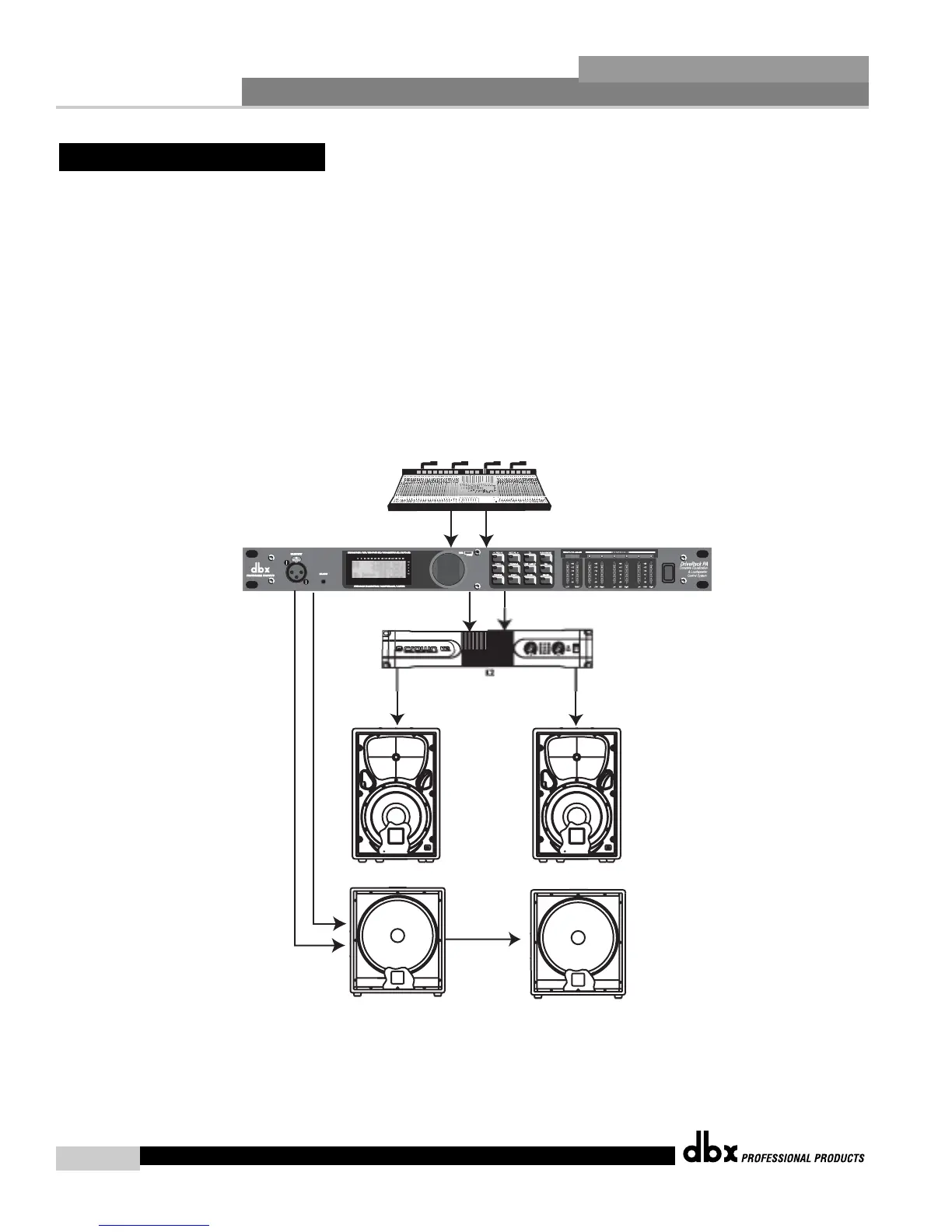

5.3 2X4 Crossover
DriveRack™ PA User Manual
Left
Right
Left High
Right High
Left Low
Ri
g
ht Lo
w
Left High
Right
Right High
MP412 MP412
MP4718SP
Powered
MP4718S
Non-Powered
