Removing and Replacing FRUs 27
c. Remove the anode discharge tool.
4. Remove the CRT anode connector from the CRT.

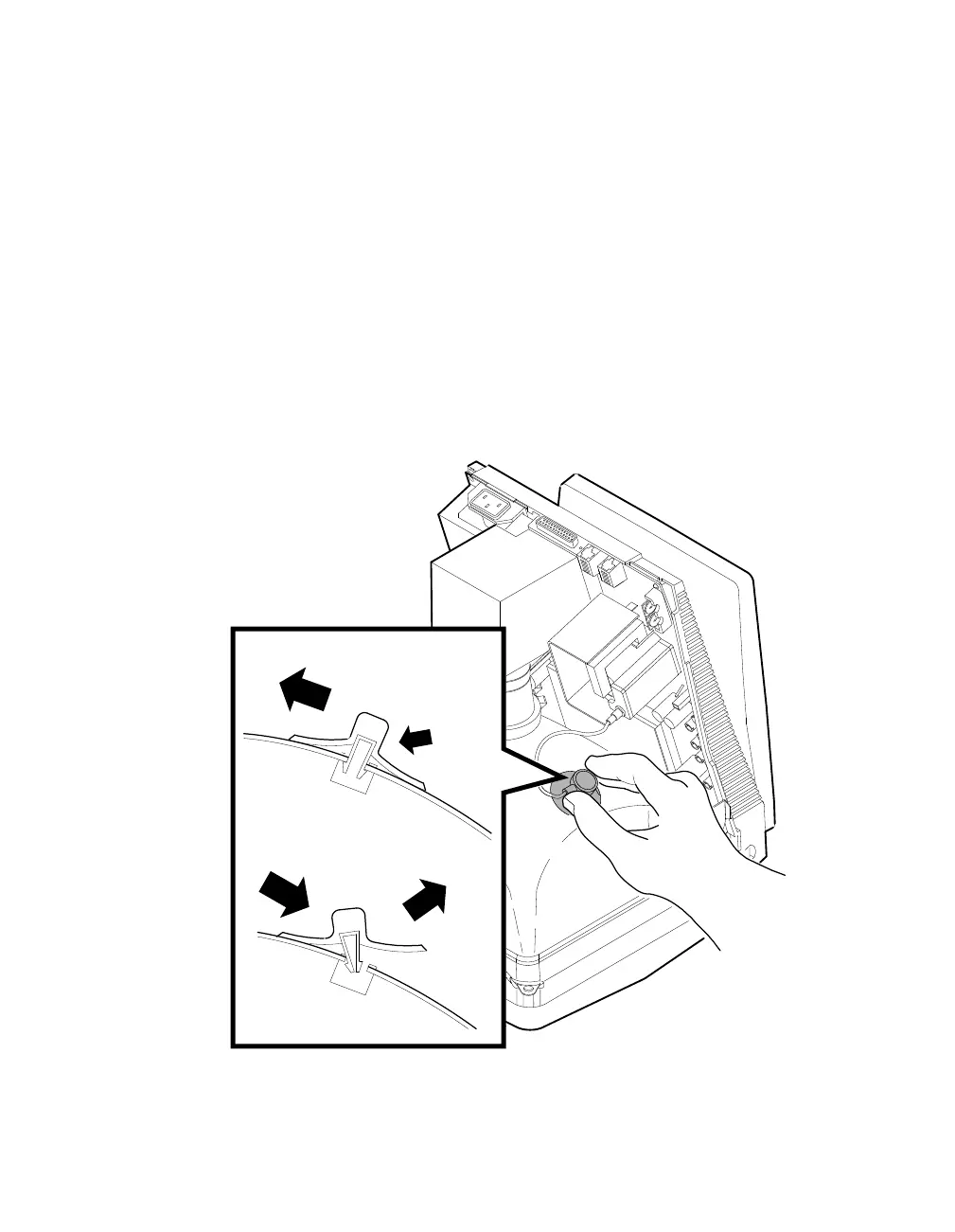

a. Grasp the rubber anode cap and push the cap away from you.
b. Press the front of the cap with you thumb and lift the front up to
get one of the wire prongs out of the anode hole. Lift the cap to
ensure the wire prong is out of the hole.
c. If both of the wire prongs are still in the anode hole, repeat the
previous steps until one is out.
d. Pull the back of the rubber anode cap forward and lift up to get
the other wire prong (the anode connector) out of the anode hole.
GSF_1442_89.DG
