DEC VT420 - VT420 Cables

56 Modems, Cables, and Documentation
F
M
M
F
M
F
M
F
M
F
M
F
M
F
GSF_1465_89.DG
BC16E Cable
6-Pin Comm2
(Printer) Port
6-Pin
Comm Port
RS-232 25-Pin
Comm1 Port
H8571-A
Adapter
H8571-C or -F
Adapter
BC16E Cable
BC16E Cable
BC16E Cable
BC16E Cable
6-Pin
Comm Port
6-Pin
Comm Port
H8571-C or -F
Adapter
BC22E Cable
Null
Modem Cable
H8571-A
Adapter
H8571-C or -F
Adapter
Printer
Modem
Host
Host
Host
BC22D-xx

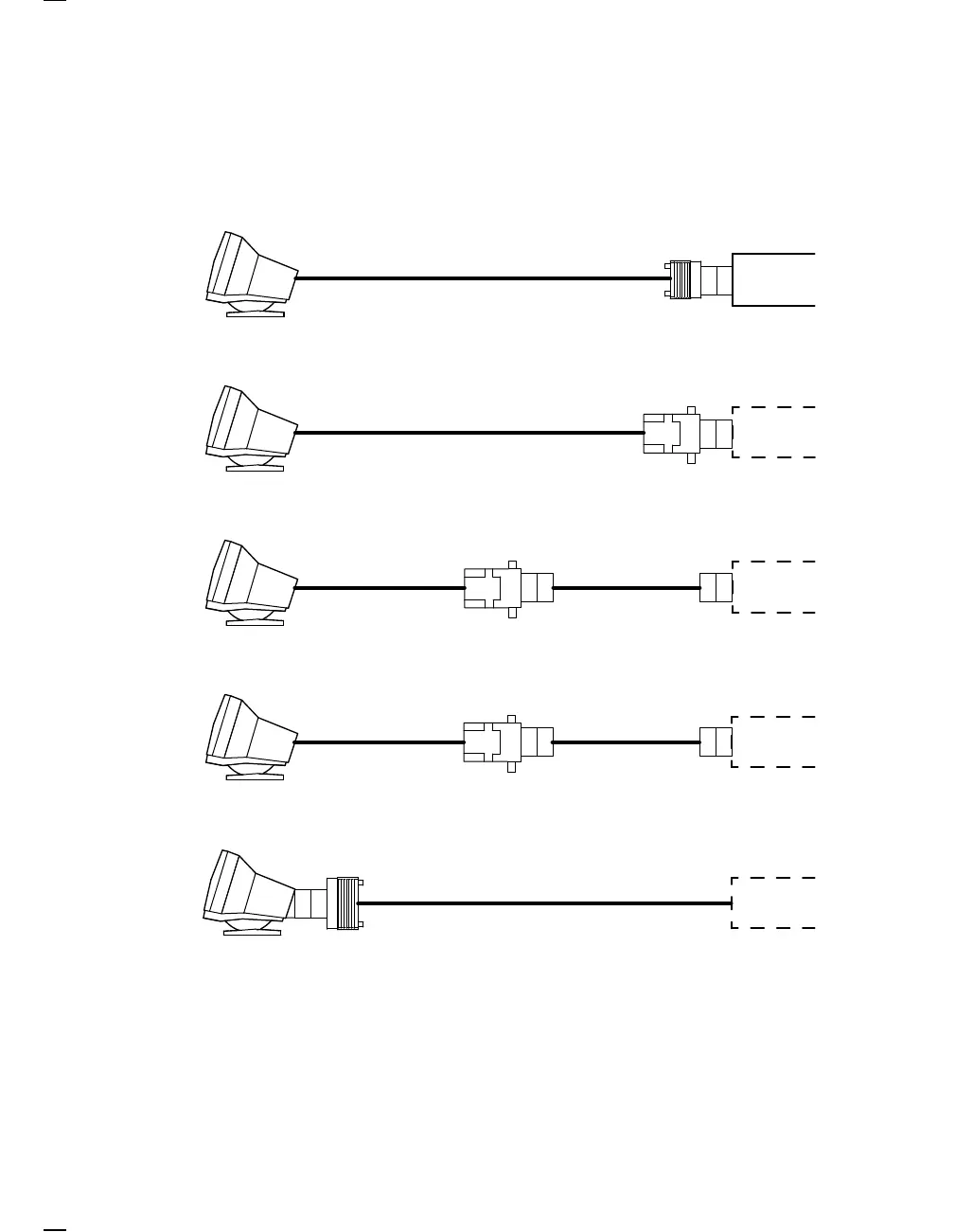

Figure A–1 VT420 Cables
