4. When you have finished centering or rotating the border, return to the
Set-Up Directory. Move the cursor to the Save field.
5. Press
Enter
. This saves all the current settings in each set-up screen.
A Done message appears at the bottom of the screen.
6. Press
F3
to leave set-up.
4.2 Monitor Adjustments
Figure 4–3 shows the location of the controls you use to make
adjustments.
GSF_1454_89.DG
Contrast
Bright
Subcontrast
(R647) (Green)
Screen
(R657) (Blue)
Static Focus
(R656) (Blue)
Width Coil
(L602) (White)
Centering Rings
Label
Vertical Size
(V-SIZE)
(R619) (Clear)
Horizontal Hold
(H-HOLD)
(R615) (Black)
Vertical
(V-LIN)
(R611) (Gray)

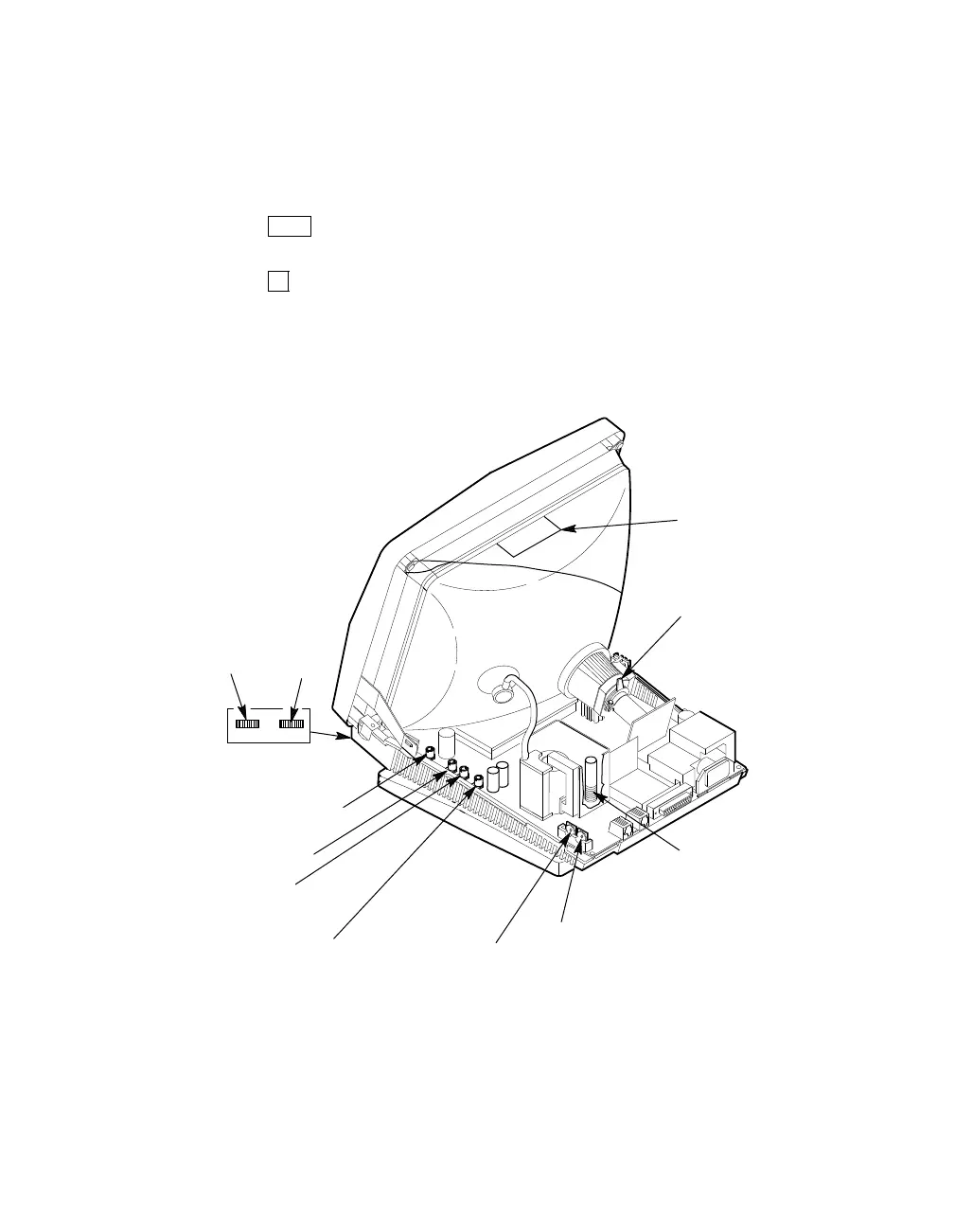

Figure 4–3 Monitor Adjustment Controls
