DEC VT420 - Page 40

32 Removing and Replacing FRUs

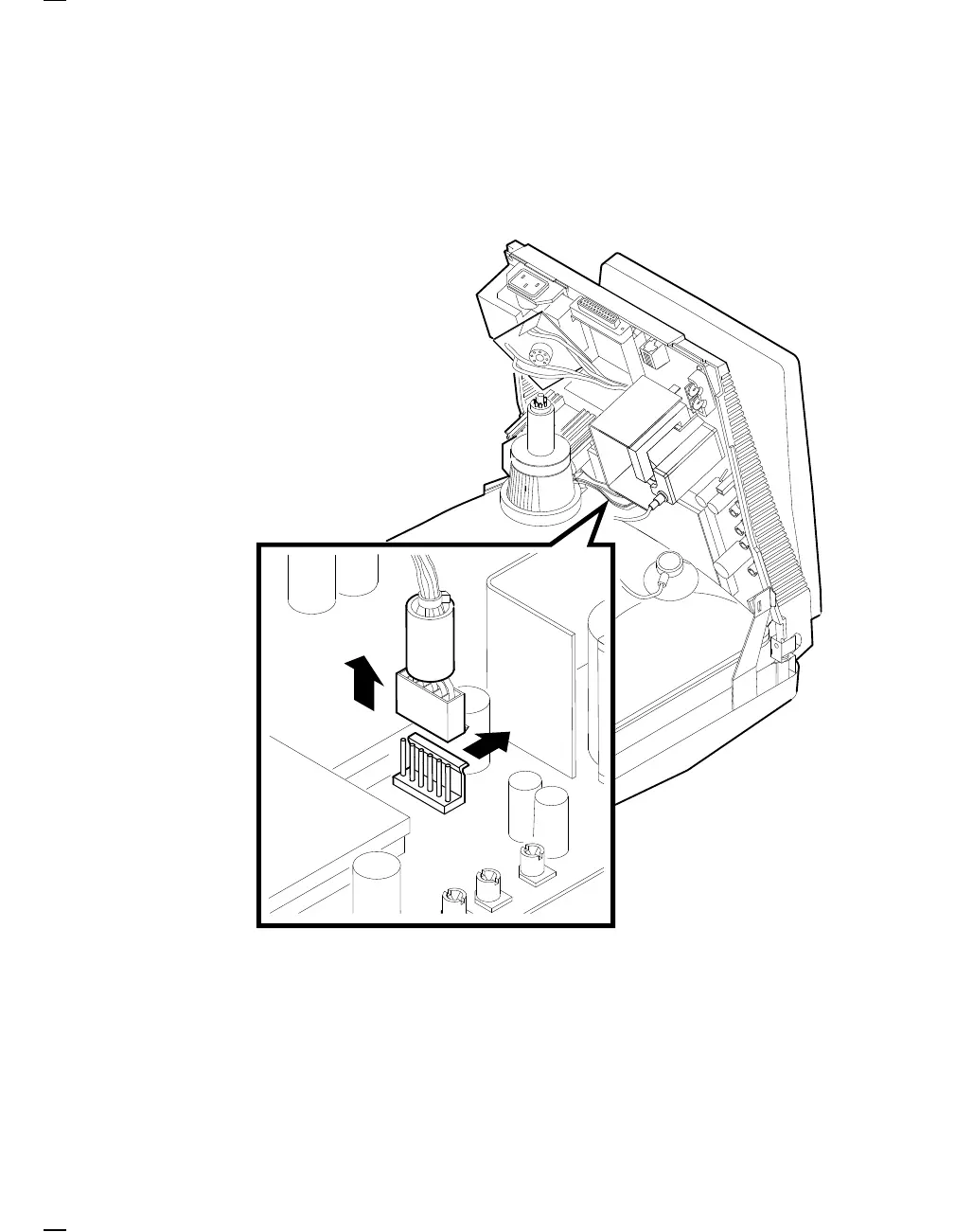

9. Disconnect the locking connector on the yoke wiring harness from the
terminal board by pushing the locking tab and pulling the connector.
GSF_1449_89.DG
10. Separate the base from the CRT/yoke/bezel assembly, as follows:
a. Release the two base support brackets.
