Removing and Replacing FRUs 35
6. Pull the board away from the plastic tab on the connector side of the
terminal board. You can release the tab by inserting a screwdriver
through the hole below the tab.

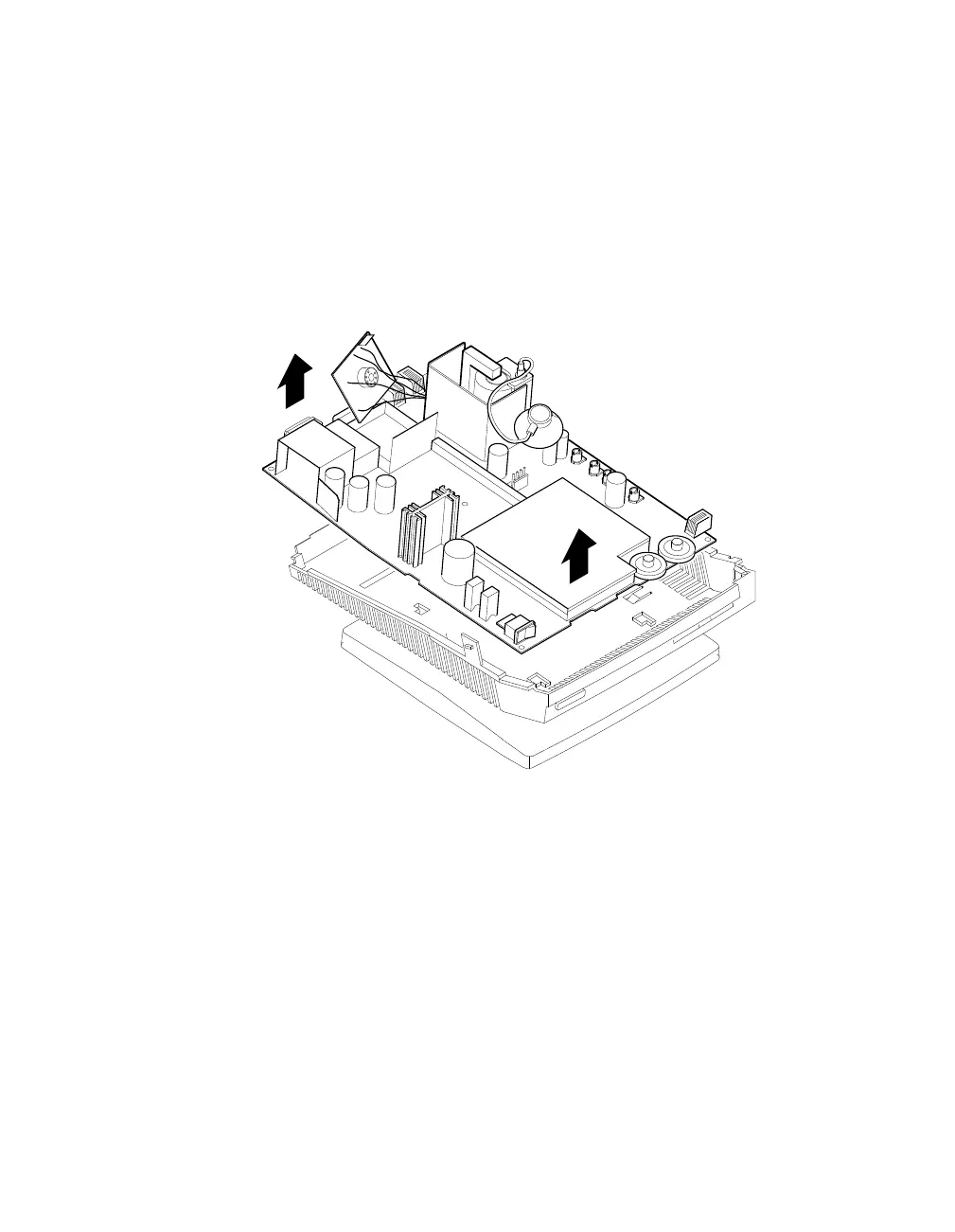

7. Lift the terminal board out of the base.
GSF_1453_89.DG
To install the terminal board assembly, reverse the installation steps. If
you need to adjust the video display, refer to Chapter 4.
