Removing and Replacing FRUs 37

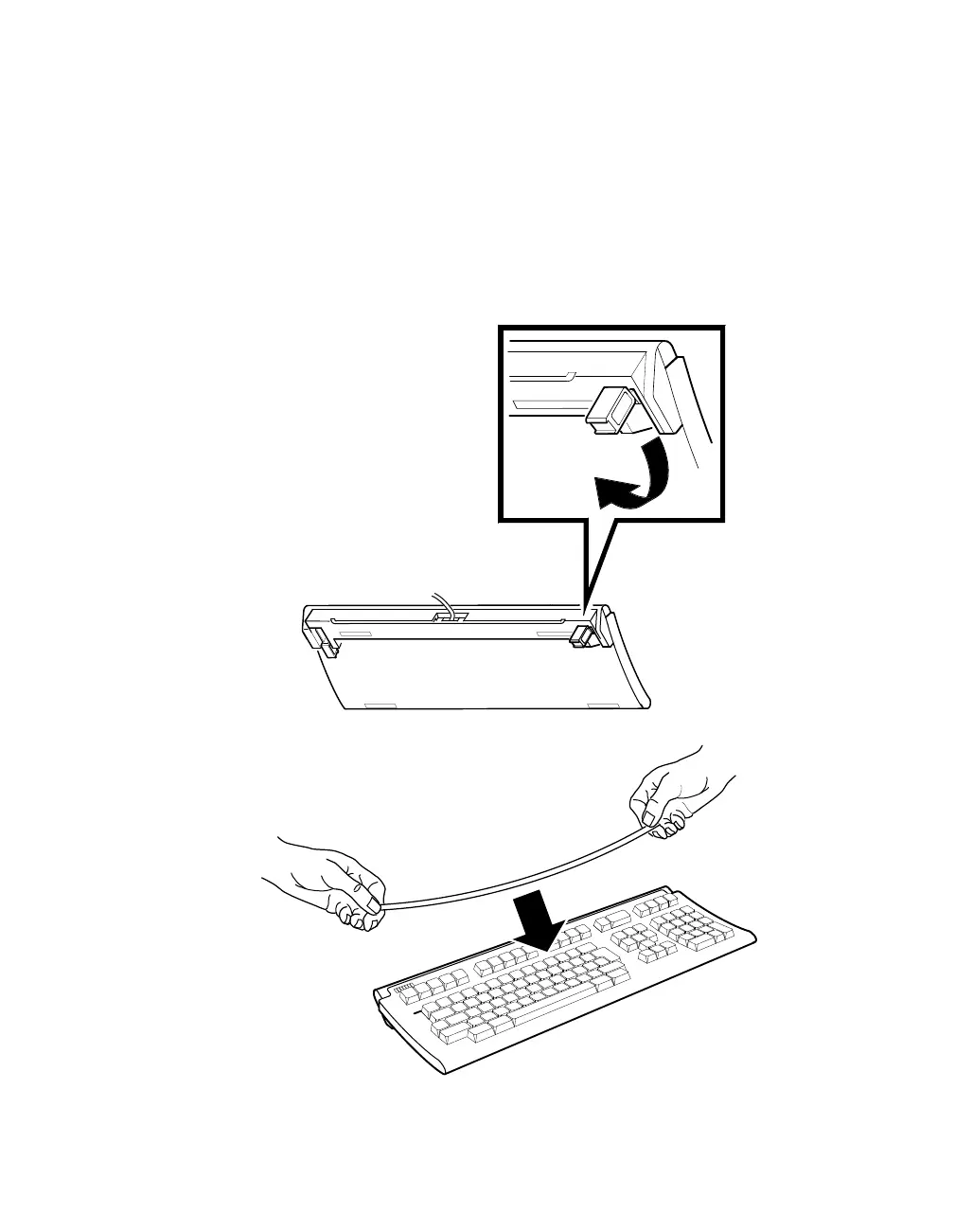

5. If you want the keyboard raised up, lower the two legs on the bottom.
6. Turn the keyboard over. Install the legend strip, aligning the strip
with the tabs.
ANSI (LK401) keyboard: Place the strip below the top-row function
keys as shown.
Short ANSI (LK421) keyboard: Place the strip above the top-row
function keys.
GSF_0827_89.DG
