DSE Model 8620 Main Control and ATS Operators Manual
119

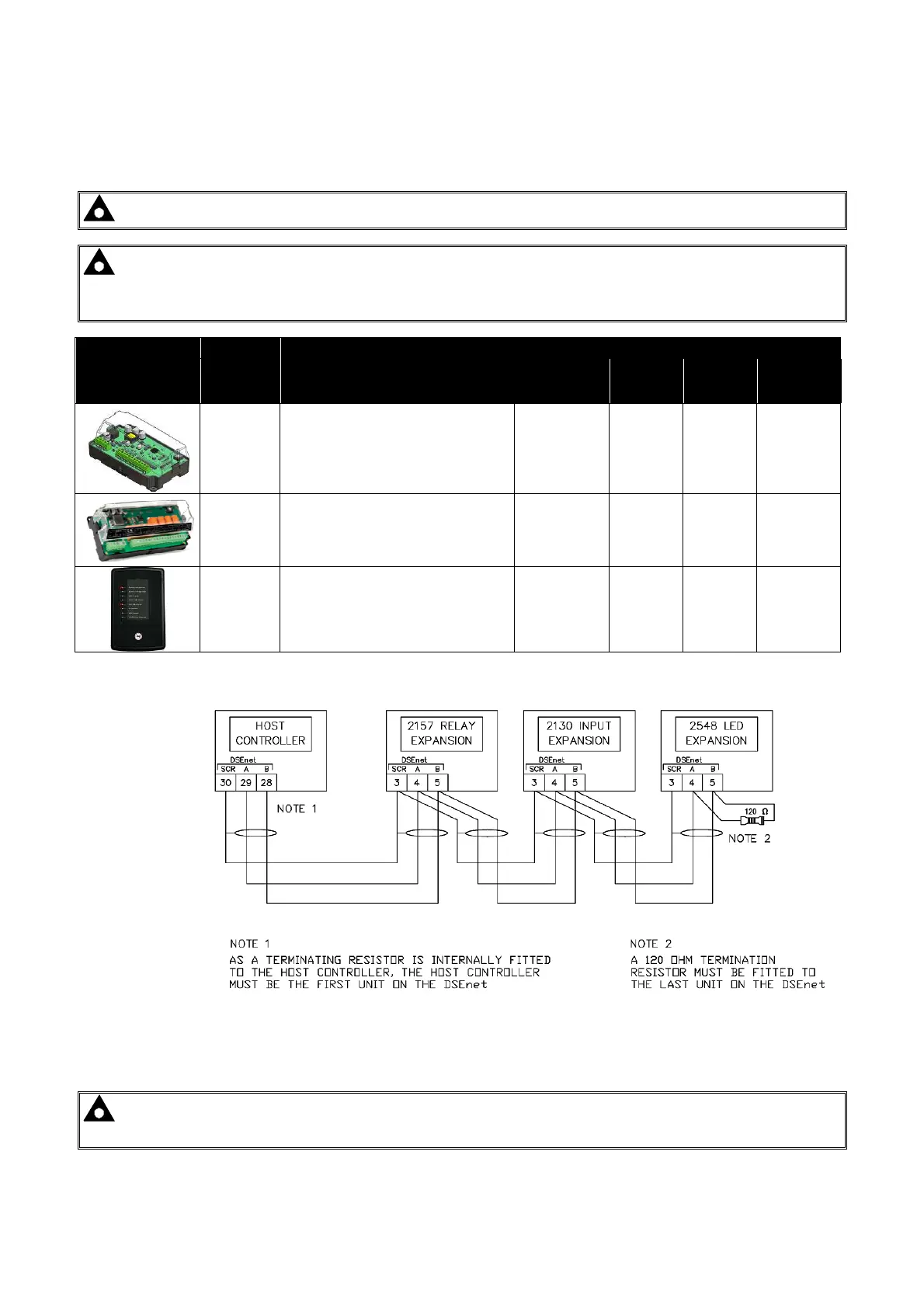

16.4 DSENET EXPANSION MODULES
NOTE:- A maximum of twenty (20) expansion modules can be connected to the DSENet®.
NOTE:- DSENet® utilises an RS485 connection. Using Belden 9841 (or equivalent) cable allows for
the expansion cable to be extended to a maximum of 1.2km.
DSE Stock and supply Belden 9841 cable. DSE Part Number 016-030.
Item
Description
DSE Part numbers
Max No.
supported
Model order
number
Sales
literature
Operator
manual
Installation
Instructions
4
Model DSE2130 expansion input module
provides additional analogue and digital
inputs for use with the DSE8600 series
controller.
2130-001-00 055-060 057-082 053-033
10
Model DSE2157 expansion relay module
provides eight additional voltage free relays
for use with the DSE8600 series controller
2157-001-00 055-061 057-083 053-034
10
Model DSE2548 expansion LED module
provides additional LED indications, internal
sounder and remote lamp test/alarm mute
for use with the DSE8600 series controller.
2548-001-00 055-062 057-084 053-032
16.5 ETHERNET (LAN) CONNECTION
NOTE: - DSE860 and DSE865 cannot be used with the DSE8620 although this module does have
its own dedicated Ethernet port. (See beginning of manual for details)
