5 DESCRIPTION OF CONTROLS
The following section details the function and meaning of the various controls on the module.

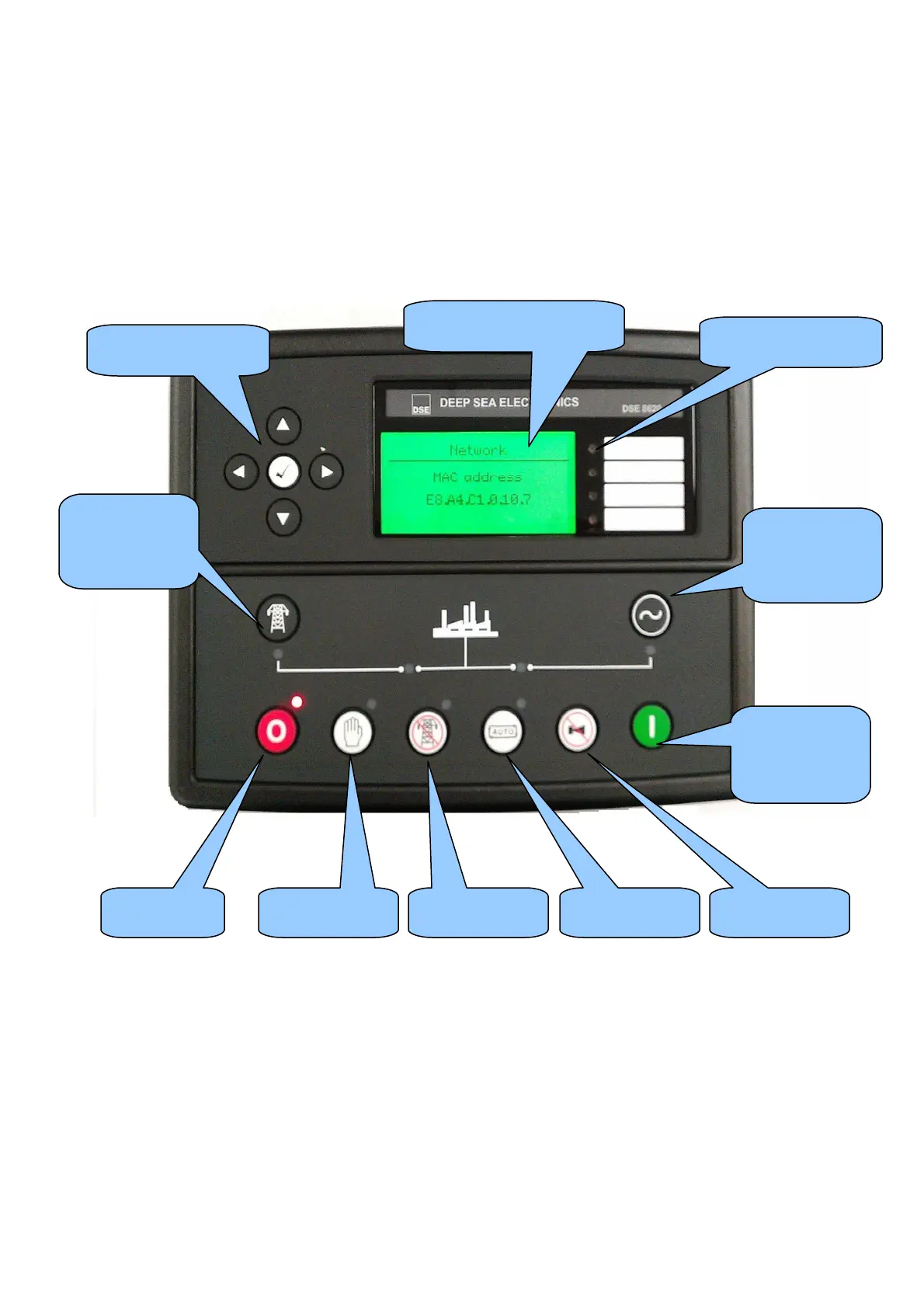

5.1 DSE8620 AUTOMATIC MAINS FAILURE (AMF) CONTROL MODULE
Menu navigation
buttons
Four configurable
LEDs
Select Stop
mode
Select Manual
mode
Select Auto
mode
Mute alarm /
Lamp test
Start engine(s)
(when in
manual or
Testmode)
Transfer to
Generator
(manual mode
only)
Transfer to
mains (manual
mode only)
Main status and
instrumentation display
Select Test
mode
