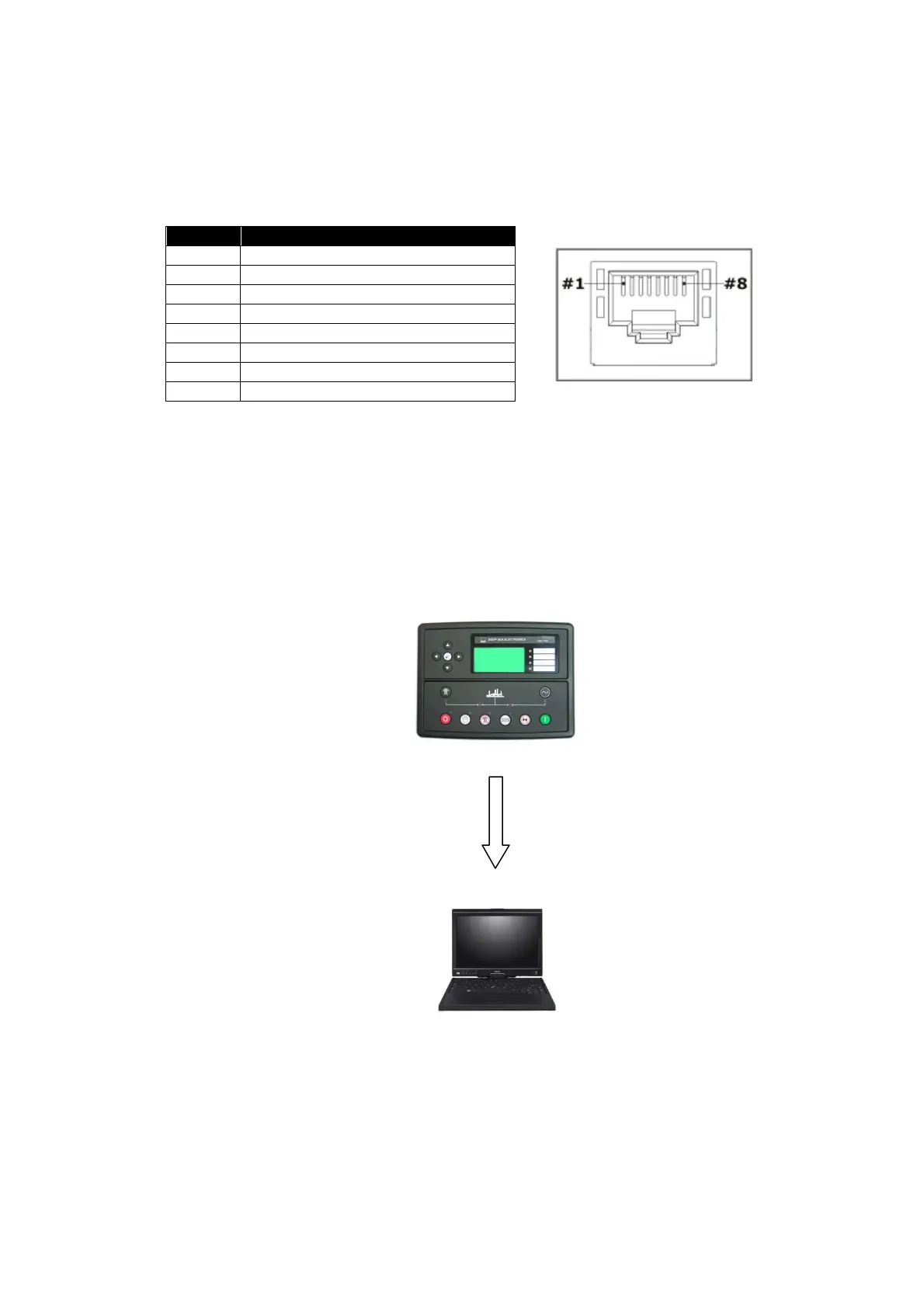

3.9.6 ETHERNET
The DSE8620 is fitted with ETHERNET socket for connection to LAN (local area networks)
Description
1 TX+
2 TX-
3 RX+
4 Do not connect
5 Do not connect
6 RX-
7 Do not connect
8 Do not connect
3.9.6.1 DIRECT PC CONNECTION
Requirements
• DSE8620
• Crossover Ethernet cable (see Below)
• PC with Ethernet port and Windows Internet Explorer 6 or above, Firefox
Crossover
network cable
